Panduit R4P Instructions

© Panduit Corp. 2018
(2) Side Channel Assembles
(2) Base Angles
(2) Top Brackets
(1) Hardware Kit
R4P**CN**

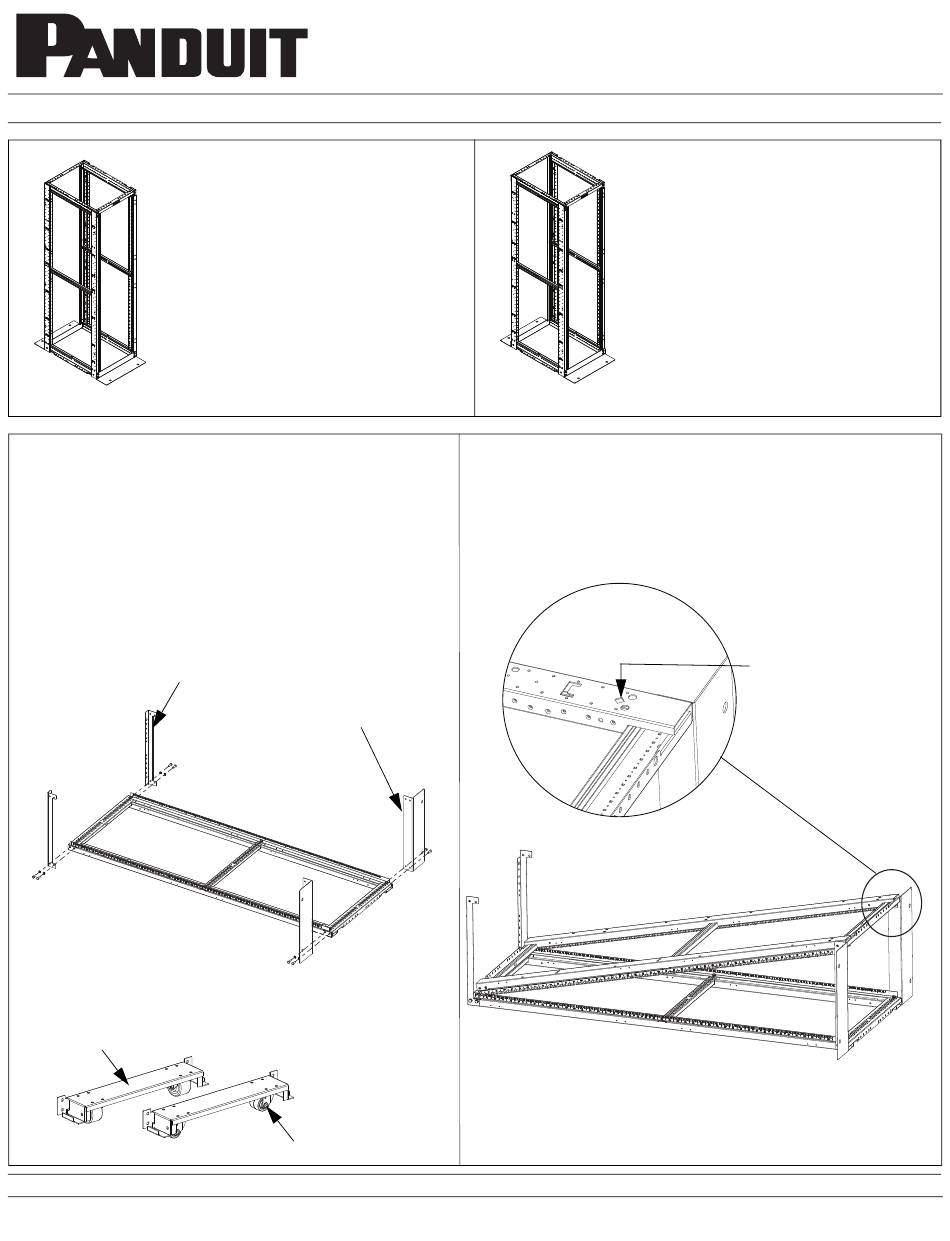

Step 1
Lay one side assembly on the floor or on a pair of sturdy saw
horses. Apply antioxidant paste to painted surfaces that the 3/8"
paint piercing washers will come in contact with. Install base
angles and top brackets using (8) 3/8" bolts and paint piercing
washers.
DO NOT TIGHTEN.
Note: The base angles are assembled on the bottom of the rack
and the top angles are assembled at the top of the rack. A dia-
mond on the outer face of each post indicates the bottom of the
rack. See closeup in Step 2.
Top angles
NOTE: If using caster bracket kit (RCSTR). Reference CM450.
Fixed Caster and Bracket
Assembly
Swivel Caster and Bracket Assembly
FOR TECHNICAL SUPPORT www.panduit.com/resources/install_maintain.asp

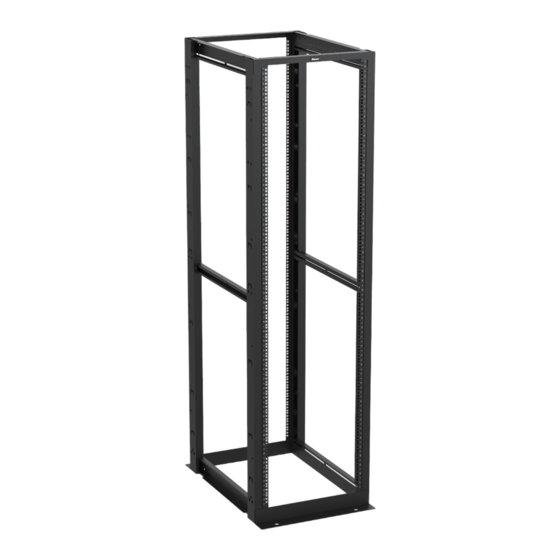

4 Post Rack and Accessories
Part Numbers: R4P, R4PCN, R4P23, R4P23CN, R4P36, R4P36CN, R4P42, R4P42CN, R4P96, R4PCN96,
R4P2396, R4P23CN96, R4P3696, R4P36CN96, R4P4296, R4P42CN96,R4P79, R4PCN79, R4PW3696,
R4PW36CN96
INSTRUCTIONS V00028FG REV 11
(25) 12-24 Cage Nuts
(25) 12-24 x.5" Screws
(16) Paint Piercing Washers
(16) 3/8 x 1" Bolts
(1) Tube of Anti-Oxidizing Gel
Base angles
R4P****
Step 2
Place remaining side assembly as shown. Apply antioxidant paste to
painted surfaces that the 3/8" paint piercing washers will come in con-
tact with. Assemble to base angles using 3/8" bolts and paint piercing
washers. One of each per side.
DO NOT TIGHTEN.
Page 1 of 4
(2) Side Channel Assembles
(2) Base Angles
(2) Top Bracket
(1) Hardware Kit
(25) 12-24 x.5" Screws
(16) Paint Piercing Washers
(16) 3/8 x 1" Bolts
(1) Tube of Anti-Oxidizing Gel
Diamond indicates
bottom of rack
