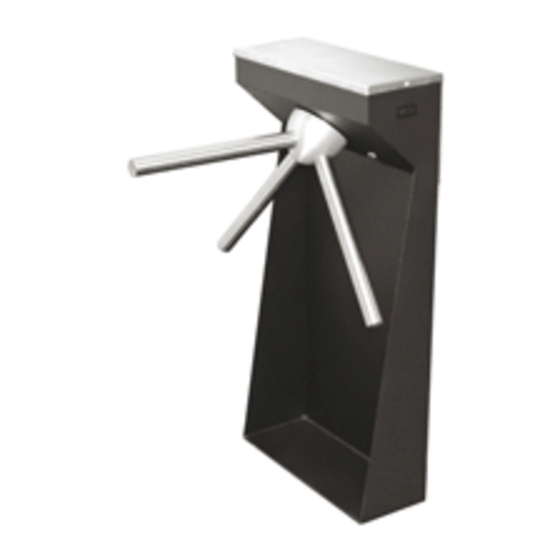

- Page 1 Waist High Slimline Security Turnstile Revision 1.6 – December 2017 Instructions and Maintenance Guide Alvarado Manufacturing Company, Inc. 12660 Colony Street, Chino, CA 91710 Telephone: (909) 591-8431 Fax: (909) 628-1403 support@alvaradomfg.com www.alvaradomfg.com PUD1570R2-0...
-
Page 2: Table Of Contents
SLT – Waist High Slimline Security Turnstile Contents Important Safety Precautions............................. 3 Support................................... 3 Turnstile Configuration Descriptions........................... 4 Turnstile Configuration............................4 Overview of Installation / Slab Requirements......................5 Overview of Installation Steps:........................... 5 Parts required (Supplied by Alvarado)........................5 Turnstile Location and Barrier Spacing. -
Page 3: Important Safety Precautions
Maintenance section of this document. • Use ONLY Alvarado parts. SAVE THESE PRECAUTIONS Support For support, contact Alvarado’s Tech Support department M–F, 7:00 AM to 4:00 PM Pacific time. Email: support@alvaradomfg.com Phone: 909-591-8431 Page 3 For Assistance: support@alvaradomfg.com +1 (909) 591-8431... -
Page 4: Turnstile Configuration Descriptions
The unlock override feature allows one or both directions of passage to be unlocked with a key (included for both directions on all SLT models). One key lock for each passage direction is located near the arms on the cabinet fascia. -
Page 5: Overview Of Installation / Slab Requirements
SLT – Waist High Slimline Security Turnstile Overview of Installation / Slab Requirements SLAB REQUIREMENTS MINIMUM THICKNESS: 4” LEVEL SOLID CONCRETE DO NOT INSTALL ON ASPHALT Overview of Installation Steps: Determine turnstile locations taking into account power and activation wiring (if applicable) -
Page 6: Installing The Turnstile
(Note: The anchoring package provided by Alvarado should ONLY be used to anchor the unit directly into the concrete slab). 4. Vacuum out holes thoroughly. If the holes are not clean, the anchors will not tighten. -
Page 7: Interior Care
SLT – Waist High Slimline Security Turnstile Maintenance Inspect the installed turnstiles approximately 30 days after the initial installation. Thereafter, the frequency of maintenance will depend on usage and the environment. We suggest inspecting and lubricating the turnstile interior twice a year. Interior maintenance should be performed more frequently in high use applications and/or in dusty or humid environments. -
Page 8: Exterior Care
SLT – Waist High Slimline Security Turnstile Exterior Care 1. Stainless Steel - Stainless steel surfaces include the turnstile arms and lid and, depending on the finish ordered, the cabinet. Stainless steel surfaces may be cleaned using any commercially available polish or cleaner. - Page 9 SLT – Waist High Slimline Security Turnstile SLT Plan & Elevation View Drawings Elevation (Front) View Plan (Top) View Page 9 For Assistance: support@alvaradomfg.com +1 (909) 591-8431 PUD1570R2-0...
-
Page 10: Slt Sub Assemblies
SLT – Waist High Slimline Security Turnstile SLT Exploded Parts Detail* * The turnstile model shown is an SLT-6X Fail Lock unit. SLT Sub Assemblies SLT Frame Plate Sub Assembly SLT Head and Arms Sub Assembly SLT Hydraulic Closure Sub Assembly... - Page 11 SLT – Waist High Slimline Security Turnstile SLT Exploded Parts Detail (continued) See Page 25 for the corresponding numbered parts listing. SLT Frame Plate Sub Assembly Exploded View SLT Head and Arms Sub Assembly Exploded View Page 11 For Assistance: support@alvaradomfg.com +1 (909) 591-8431...
- Page 12 SLT – Waist High Slimline Security Turnstile SLT Exploded Parts Detail (continued) See Page 25 for the corresponding numbered parts listing. SLT Hydraulic Closure Sub Assembly Exploded View SLT Ratchet Sub Assembly Exploded View Page 12 For Assistance: support@alvaradomfg.com +1 (909) 591-8431...
- Page 13 SLT – Waist High Slimline Security Turnstile SLT Exploded Parts Detail (continued) See Page 25 for the corresponding numbered parts listing. SLT Compression Shoe Sub Assembly Exploded View SLT Microswitch Mounting Plate Sub Assembly Exploded View Page 13 For Assistance: support@alvaradomfg.com +1 (909) 591-8431...
- Page 14 Include 1 each Key Override Tab (Part # 04-7205) with each 04-7201 and specify the Key Override direction(s) * The turnstile model shown is an SLT-6X Fail Lock Unit with when reordering lock arms. Key Overrides for both directions.
- Page 15 SLT – Waist High Slimline Security Turnstile Lubrication Guide Some of the parts shown are no longer applicable. IMPORTANT For more information, please contact Alvarado Manufacturing. Page 15 For Assistance: support@alvaradomfg.com +1 (909) 591-8431 PUD1570R2-0...
- Page 16 12660 Colony Street, Chino, CA 91710 Telephone: (909) 591-8431 Fax: (909) 628-1403 support@alvaradomfg.com www.alvaradomfg.com © 2017 Alvarado Manufacturing Company, Inc. This work may not be reproduced, published or redistributed, in whole or in part, without the express prior written permission of Alvarado.
