Quick Guide

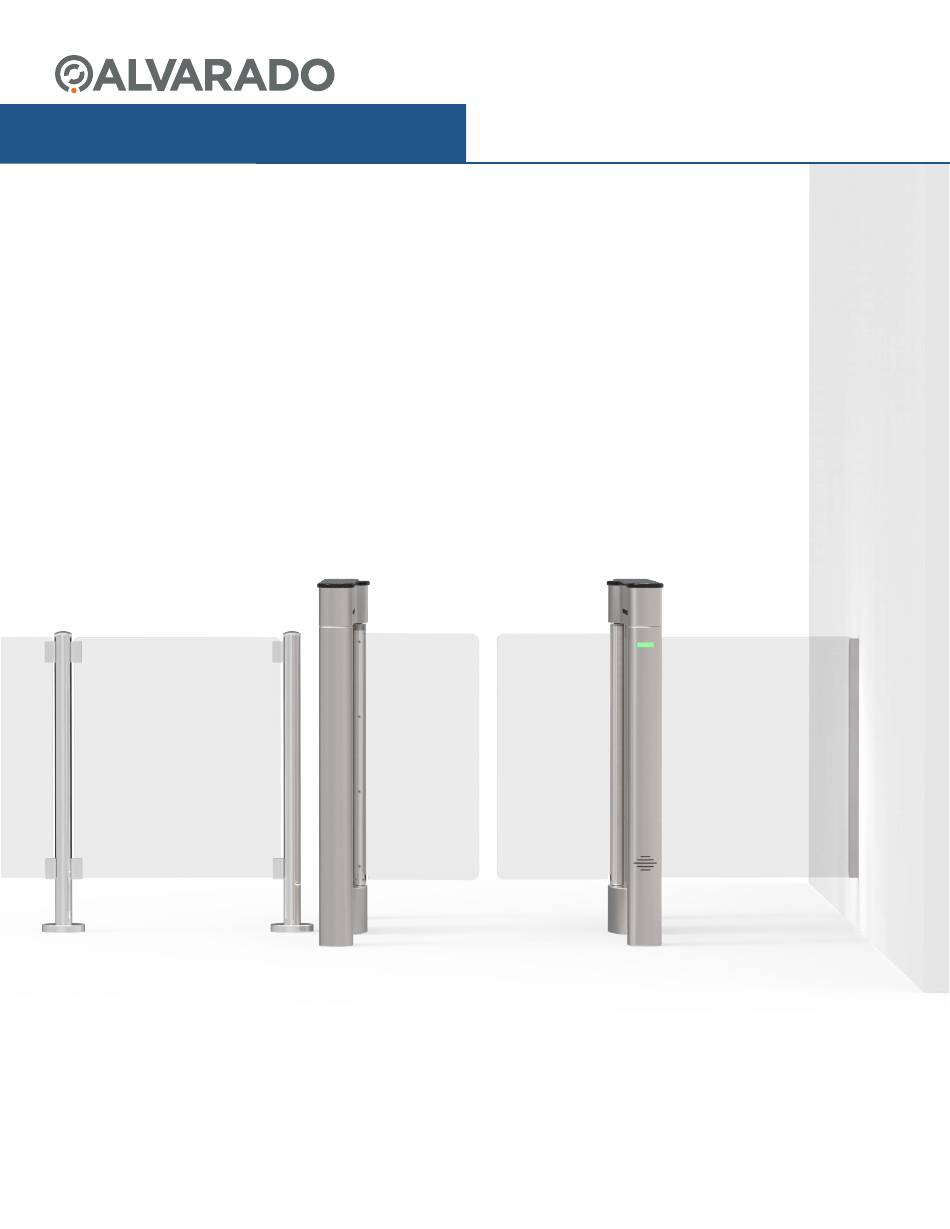

Modular Post and Panel Barriers
As a finishing touch for your installation,
Alvarado offers a number of options to
close off open spaces around installed
optical turnstiles.

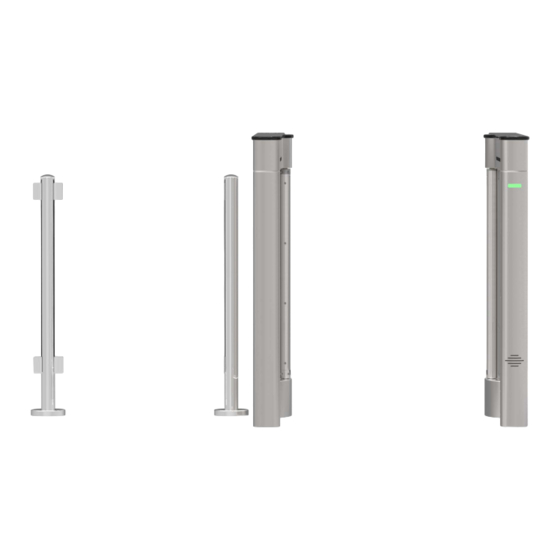

35" high stand alone barrier
35" high barrier attached
directly to SU5000 and wall
12660 Colony Street, Chino, CA 91710 • +1 (909) 591-8431 • alvaradomfg.com
QGD3881

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SU5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alvarado SU5000

  • Page 1 Quick Guide Modular Post and Panel Barriers As a finishing touch for your installation, Alvarado offers a number of options to close off open spaces around installed optical turnstiles. 35” high stand alone barrier 35” high barrier attached directly to SU5000 and wall 12660 Colony Street, Chino, CA 91710 •...
  • Page 2 Modular Post and Panel Barriers Quick Guide AVAILABLE BARRIER PANEL HEIGHTS Panels come in three heights that match the standard barrier heights of our SU5000 turnstiles. 69” 46” 35” 6” AVAILABLE POST CONFIGURATIONS* Posts are available in a variety of configurations, providing flexible layout and installation options.
  • Page 3 Narrower panel widths (B) can be provided. Panel widths wider than the widths shown below are not available. wall channel Post to Post Post to Wall SU5000 to Wall Post to Post Panel Height (A) Panel Width (B) Post Height (C) 35”...
  • Page 4 Modular Post and Panel Barriers Quick Guide OPTION 2: SU5000 ATTACHED BARRIERS Alvarado also offers barrier panels that attach directly to SU5000 optical turnstiles. This option is not available with other turnstile models. AVAILABLE SIZES Standard panel heights, post, wall channel heights and panel widths are shown below.
  • Page 5 Modular Post and Panel Barriers Quick Guide BARRIER SPECIFICATIONS VOGUE POST CLEAR PANEL WALL CHANNEL • Post diameter: 2.25” • Cast acrylic • U channel depth: 0.75” • Base cover diameter: 5.5” • Abrasion resistant coating • Capped bottom • Available finishes: •...
