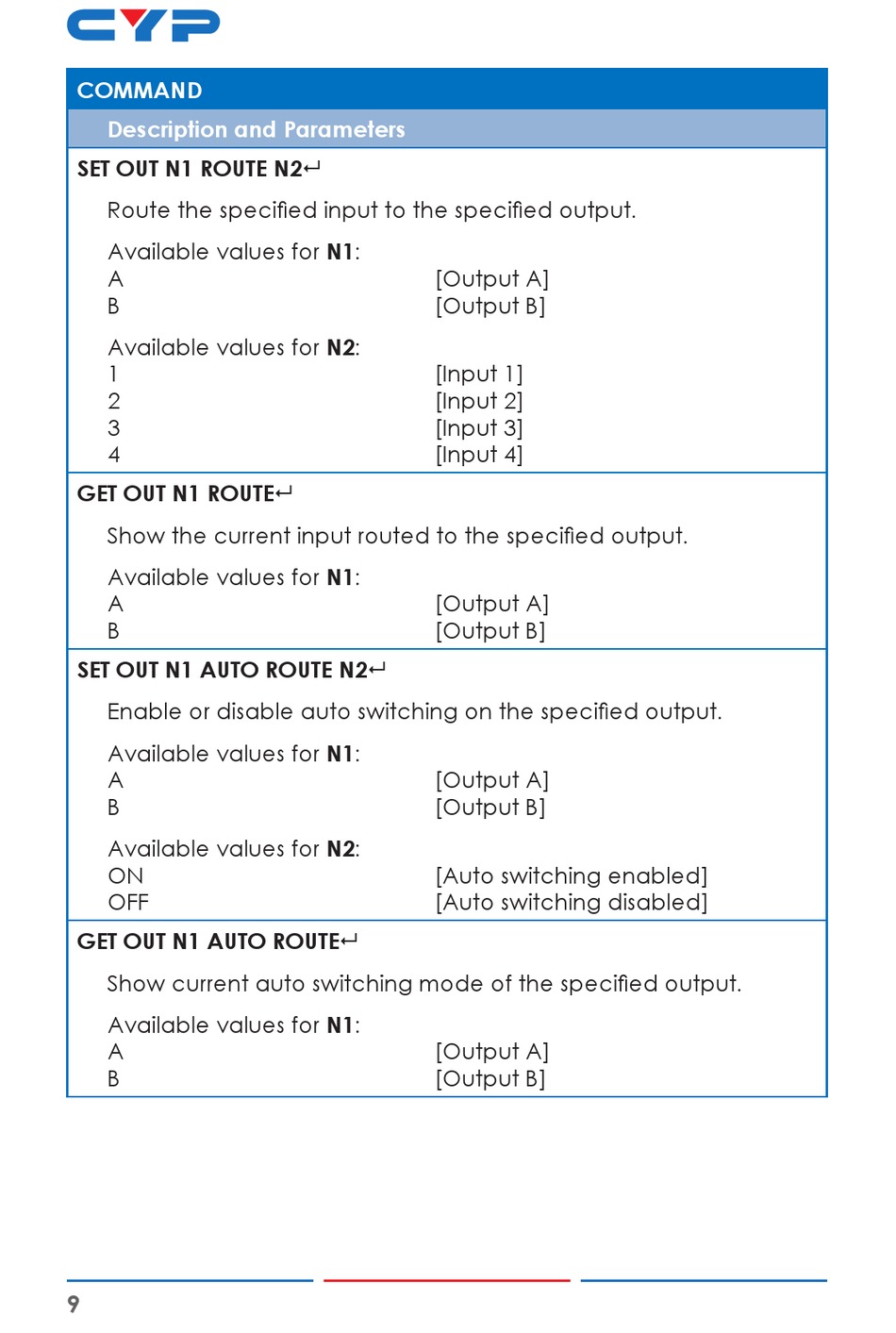

CYP CPLUS-V4H2HA Operation Manual page 14

COMMAND
Description and Parameters
SET OUT N1 ROUTE N2
Route the specified input to the specified output.
Available values for N1:
A
B
Available values for N2:
1
2
3
4
GET OUT N1 ROUTE
Show the current input routed to the specified output.
Available values for N1:
A
B
SET OUT N1 AUTO ROUTE N2
Enable or disable auto switching on the specified output.
Available values for N1:
A
B
Available values for N2:
ON
OFF
GET OUT N1 AUTO ROUTE
Show current auto switching mode of the specified output.
Available values for N1:
A
B
9
[Output A]
[Output B]
[Input 1]
[Input 2]
[Input 3]
[Input 4]
[Output A]
[Output B]
[Output A]
[Output B]
[Auto switching enabled]
[Auto switching disabled]
[Output A]
[Output B]
