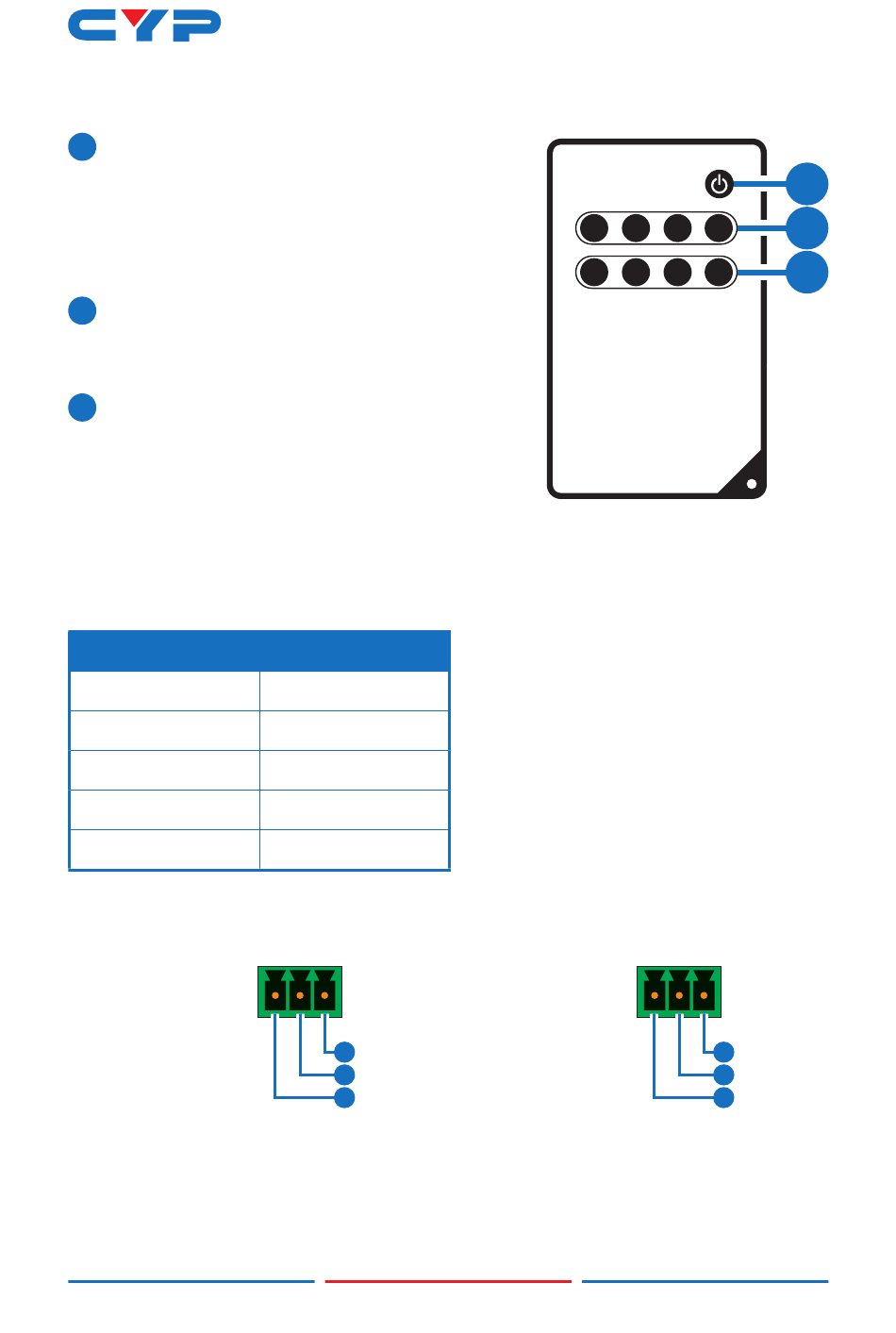

6.3 Remote Control (Optional)

1 POWER Button: Press this button to power
the unit on or off.
Note: The unit will also transmit the
appropriate CEC/RS-232 on/off
commands to any connected displays.
2 OUT A 1~4 Buttons: Press any of these
buttons to immediately switch Output A
to the corresponding input.
3 OUT B 1~4 Buttons: Press any of these
buttons to immediately switch Output B
to the corresponding input.

6.4 RS-232 Pinout and Defaults

Serial Port Default Settings
Baud Rate
Data Bits
Parity Bits
Stop Bits
Flow Control
RS-232 Port A (Unit control)
3-pin Terminal Block
5
19200
8
None
1
None
1 GND
2 RxD
3 TxD
A 1
B 1
RS-232 Port B
3-pin Terminal Block
POWER
1
2
2 3 4
3
2 3 4
CR-190
1 GND
2 RxD
3 TxD
