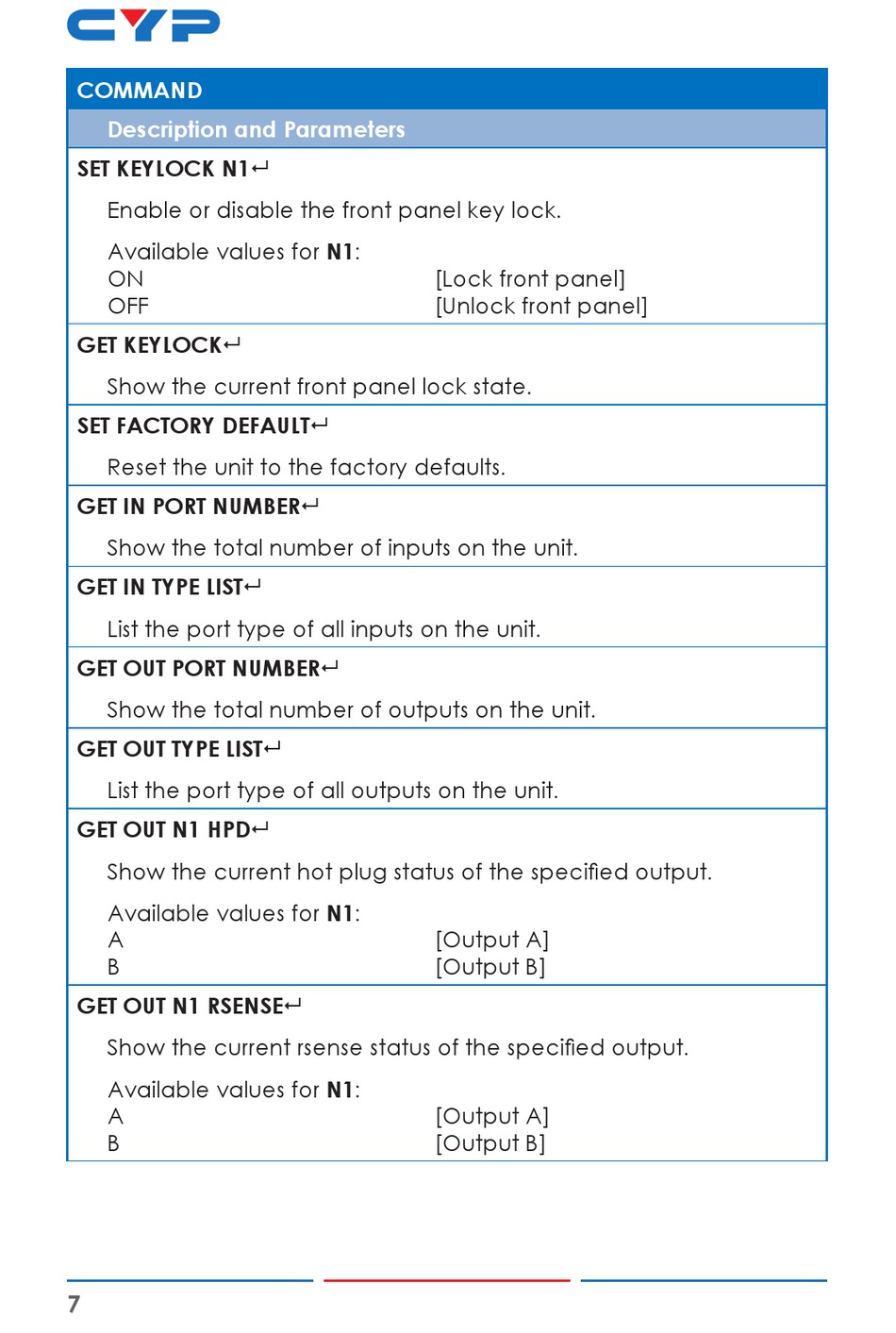

COMMAND
Description and Parameters
SET KEYLOCK N1
Enable or disable the front panel key lock.
Available values for N1:
ON
OFF
GET KEYLOCK
Show the current front panel lock state.
SET FACTORY DEFAULT
Reset the unit to the factory defaults.
GET IN PORT NUMBER
Show the total number of inputs on the unit.
GET IN TYPE LIST
List the port type of all inputs on the unit.
GET OUT PORT NUMBER
Show the total number of outputs on the unit.
GET OUT TYPE LIST
List the port type of all outputs on the unit.
GET OUT N1 HPD
Show the current hot plug status of the specified output.
Available values for N1:
A
B
GET OUT N1 RSENSE
Show the current rsense status of the specified output.
Available values for N1:
A
B
7
[Lock front panel]
[Unlock front panel]
[Output A]
[Output B]
[Output A]
[Output B]
