Configuration
5.3 Set Up a Wireless Infrastructure
Connect two or more Wireless Bolt CAN units via WLAN or Bluetooth using Easy
Config.
When installing more than one Wireless Bolt CAN in the bridge, configure the
Wireless Bolt CAN connected to the Master device as the Access Point.
Configure the Wireless Bolt CAN connected to the Slave as a Clients.
5.3.1

Connecting the Devices

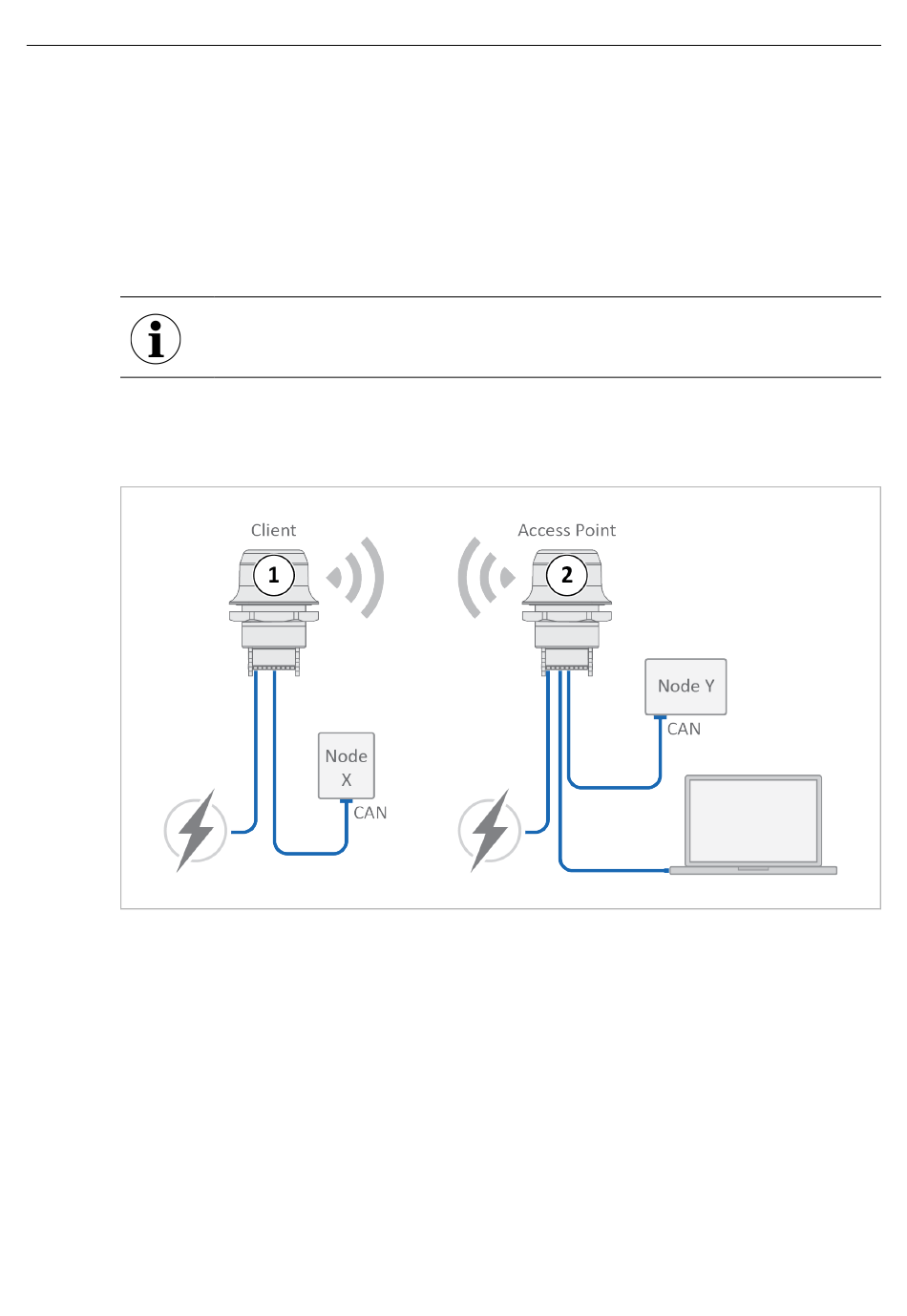

Fig. 7
1. Connect Client unit 1 to a CAN device.
2. Connect Access Point unit 2 to the master device.
3. Connect Access Point unit 2 to your PC, with an Ethernet cable.
4. Connect Access Point unit 2 to power.
®
Anybus Wireless Bolt CAN
When the Wireless Bolt CAN Access Point is connected to a Modbus network,
the Master device must be connected to the Access Point.
CAN bridge example
™
