AVLink 128.839UK Manual

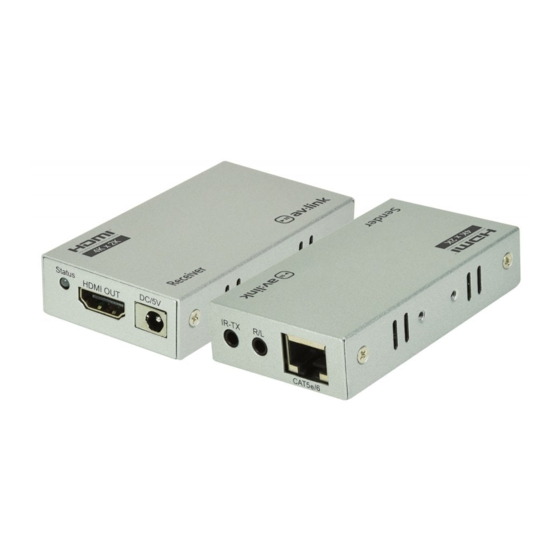

An extender kit that allows 4K and FHD HDMI signals to be sent between devices at distances of up to 100m
using a single shielded network cable. The Extender kit works using a single cat5e or cat6 (recommended)
cable instead of HDMI cable to transmit high-definition signals over a long distance, vastly reducing your costs
but without reducing your picture quality. The built in IR function enables simple control of transmission
devices remotely and an audio extraction function allows connection to headphones, speakers and amplifiers
using a 3.5mm audio cable (not supplied).

Technical Specifications and Features

HDMI Version
Max. Range
Video Format
Audio Format
Max. Cable Length
Max. Bandwidth
Max. Baud Rate
Max. Working Current
Power Supply
Dimensions
Weight

Connection Instructions

• Connect one HDMI cable between your source device and the TX Extender (Sender), the max cable length
is 15 meters.
4K HDMI Extender Over Ethernet Kit (100m)
1.4a
100m
Up to 3840 x 2160 @ 60Hz
Supports DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI (input & output) ≤15m AWG26 standard cable
350 MHz
3x3.4Gbps
350mA (TX) and 200mA (RX)
5Vdc, 1000mA
82x45x18mm (each unit)
120g (each unit)
Item ref: 128.839UK
