Summary of Contents for AVLink AV-L

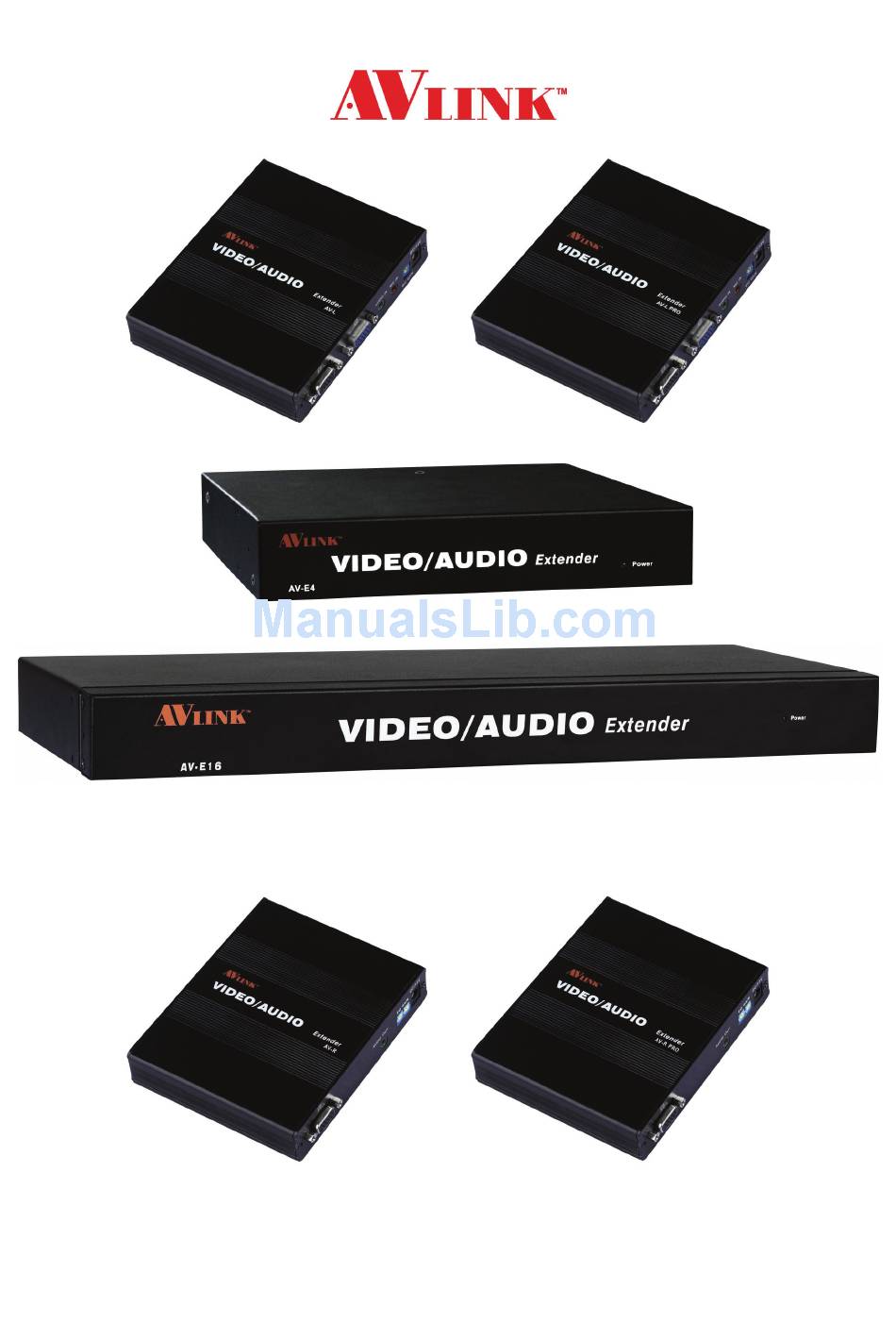

- Page 1 AV EXTENDER AV-L AV-L-PRO AV-E2/AV-E4/AV-E8 AV-E16/AV-E32 (Local) AV-R AV-R-PRO (Remote) ANUAL V1.7...
- Page 2 Package Contents for AV-E AV-L Local Unit AV-R Remote Unit 1 user manual 2 power adapter DC 12V/600mA 1 VGA 1.2M cable (HD-15 Male to Male) 1 Audio 1.2M cable Package Contents for AV-E-PRO AV-L-PRO Local Unit AV-R-PRO Remote Unit...

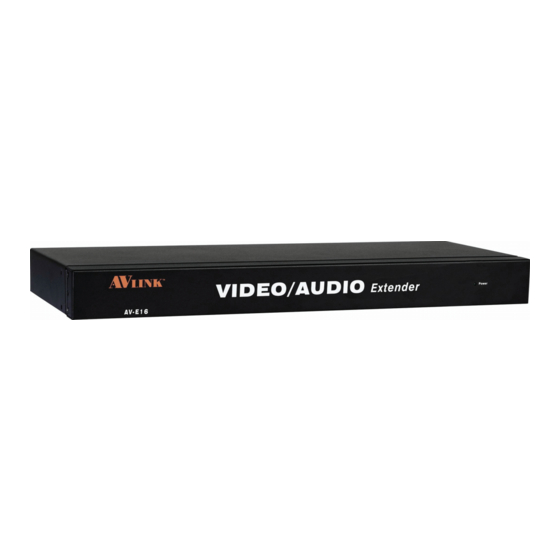

- Page 3 Package Contents for AV-E16 AV-E16 Local Unit 1 user manual 1 AC power cord 2 rack rails, 6 screws 1 VGA 1.2M cable (HD-15 Male to Male) 1 Audio 1.2M cable Package Contents for AV-E32 AV-E32 Local Unit 1 user manual 1 AC power cord 2 rack rails, 6 screws 1 VGA 1.2M cable (HD-15 Male to Male)
-
Page 4: Specifications
Equalization length is adjustable. VGA signal gain is adjustable. Audio sample rate 96KHz. Can use external microphone to output sounds to audio amplifier. Specifications Function AV-L AV-L-PRO AV-R AV-R-PRO VGA In/Out Connector HD-15 Female x 2 HD-15 Female x 1 3.5ψ... - Page 5 LOCAL FRONT VIEW AV-L/AV-L-PRO AV-E2/AV-E4/AV-E8 AV-E16/AVE32 1. Power LED 2. CAT.5 (RJ-45 Connector) LOCAL REAR VIEW AV-L/AV-L-PRO AV-E2/AV-E4/AV-E8 AV-E16/AV-E32 1. Input Power Jack 2. VGA Output (HD-15 Female Connector) 3. VGA Input (HD-15 Female Connector) 4. AUDIO Input 5. MIC Input 6.
- Page 6 REMOTE FRONT VIEW AV-R/AV-R-PRO 1. Power LED CAT.5 (RJ-45 Connector) REMOTE REAR VIEW AV-R/AV-R-PRO 1. VGA Output (HD-15 Female Connector) 2. AUDIO Output 3. EQ – Equalization length adjust (Adjust it and weak characters be sharp) 4. GAIN – Adjust brightness 5.
- Page 7 Additional Options Select any additional options you may require. 1. It provides perfect skew delay correction, we suggest when distances over 150M it is needed. (Item No: SK-101) Distances and Resolutions for CAT.5/5E and CAT.6 cables 2048x1536 100M 1280x1024 CAT.5/5E 180M 1024x768 200M...
- Page 8 Wiring Information & Coding Conductor Identification RJ45 Pin Assignment Color Code for Conductor White-Blue Pair 1 Blue White-Orange Pair 2 Orange White-Green Pair 3 Green White-Brown Pair 4 Brown © C&C TECHNIC TAIWAN CO., LTD. All rights reserved. Trademarks: All the companies, brand names, and product names referred to this manual are the trademarks or registered trademarks belonging to their respective companies.
