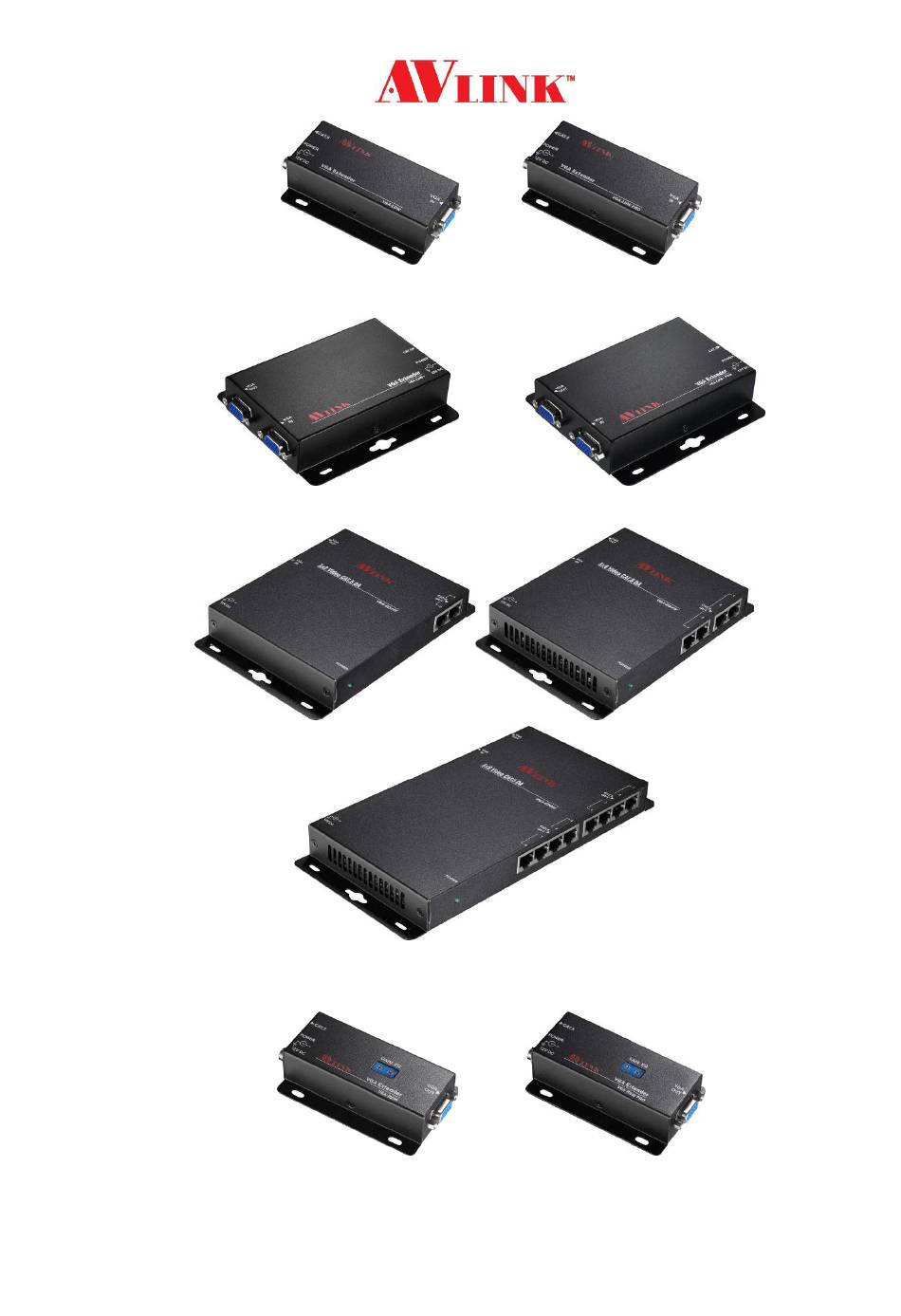

- Page 1 VGA EXTENDER VGA-LDW VGA-LDW-PRO VGA-LDW VGA-LDW -PRO VGA-ED2W/VGA-ED4W/VGA-ED8W (Local) VGA-RDW VGA-RDW-PRO (Remote) ANUAL V1.0...
- Page 2 Package Contents for VGA-EDW VGA-LDW Local Unit VGA-RDW Remote Unit 1 user manual 2 power adapter DC 12V 8 foot pads 4 screws 1 VGA 1.2M cable (HD-15 Male to Male) Package Contents for VGA-EDW-PRO VGA-LDW-PRO Local Unit VGA-RDW-PRO Remote Unit...

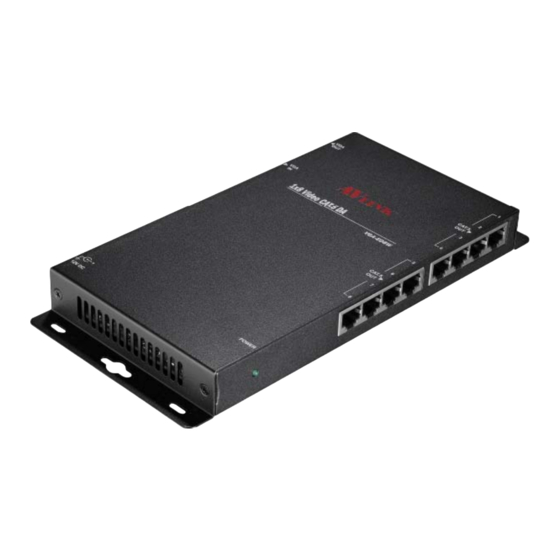

- Page 3 Package Contents for VGA-ED4W VGA-ED4W Local Unit 1 user manual 1 power adapter DC 12V 4 foot pads 2 screws 1 VGA 1.2M cable (HD-15 Male to Male) Package Contents for VGA-ED8W VGA-ED8W Local Unit 1 user manual 1 power adapter DC 12V 4 foot pads 2 screws 1 VGA 1.2M cable (HD-15 Male to Male)
-
Page 4: Specifications
VGA signal gain is adjustable. EDID copy from Remote to Local. **note : VGA-ED2W/ VGA-ED4W/ VGA-ED8W only allow EDID copy from CAT.5 output port1. Specifications Function VGA-LDW VGA-RDW VGA-LDW-PRO VGA-RDW-PRO VGA In/Out Connector HD-15 Female x 1 RJ-45 Connector Depends on 1600x1200 Depends on Max. - Page 5 LOCAL FRONT VIEW VGA-LDW/VGA-LDW-PRO VGA-LDW /VGA-LDW -PRO VGA-ED2W/VGA-ED4W VGA-ED8W 1. CAT.5 (RJ-45 Connector) 2. Power LED 3. Power jack LOCAL REAR VIEW VGA-LDW/VGA-LDW-PRO VGA-LDW /VGA-LDW -PRO VGA-E2DW/VGA-E4DW VGA-ED8W 1. VGA Input (HD-15 Female Connector) 2. VGA Output (HD-15 Female Connector) 3.
- Page 6 REMOTE REAR VIEW VGA-RDW/VGA-RDW-PRO 1. VGA Output (HD-15 Female Connector) REMOTE TOP VIEW VGA-RDW/VGA-RDW-PRO 1. EQ – Equalization length adjust (Adjust it and weak characters be sharp) 2. GAIN – Adjust brightness Installation 1. Turn off the PC. 2. Connect VGA-Extender Local Unit HD-15 female input connector with HD-15 male to male cable from PC.
- Page 7 Additional Options Select any additional options you may require. 1. It provides perfect skew delay correction, we suggest when distances over 150M it is needed. (Item No: SK-101) Distances and Resolutions for CAT.5/5E and CAT.6 cables 2048x1536 100M 1280x1024 CAT.5/5E 180M 1024x768 200M...
- Page 8 © C&C TECHNIC TAIWAN CO., LTD. All rights reserved. Trademarks: All the companies, brand names, and product names referred to this manual are the trademarks or registered trademarks belonging to their respective companies.
