Summary of Contents for AVLink VGA-L

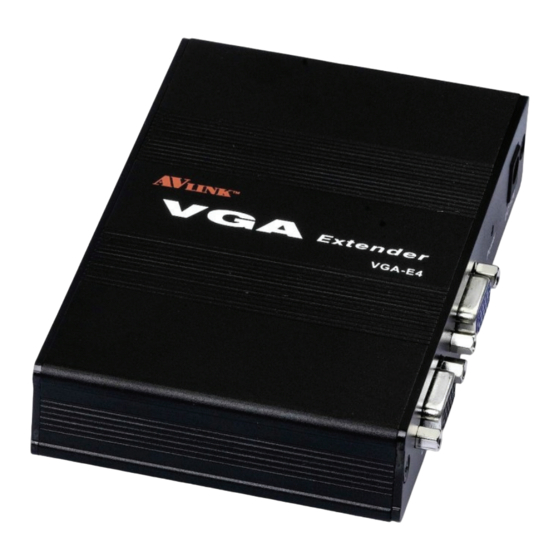

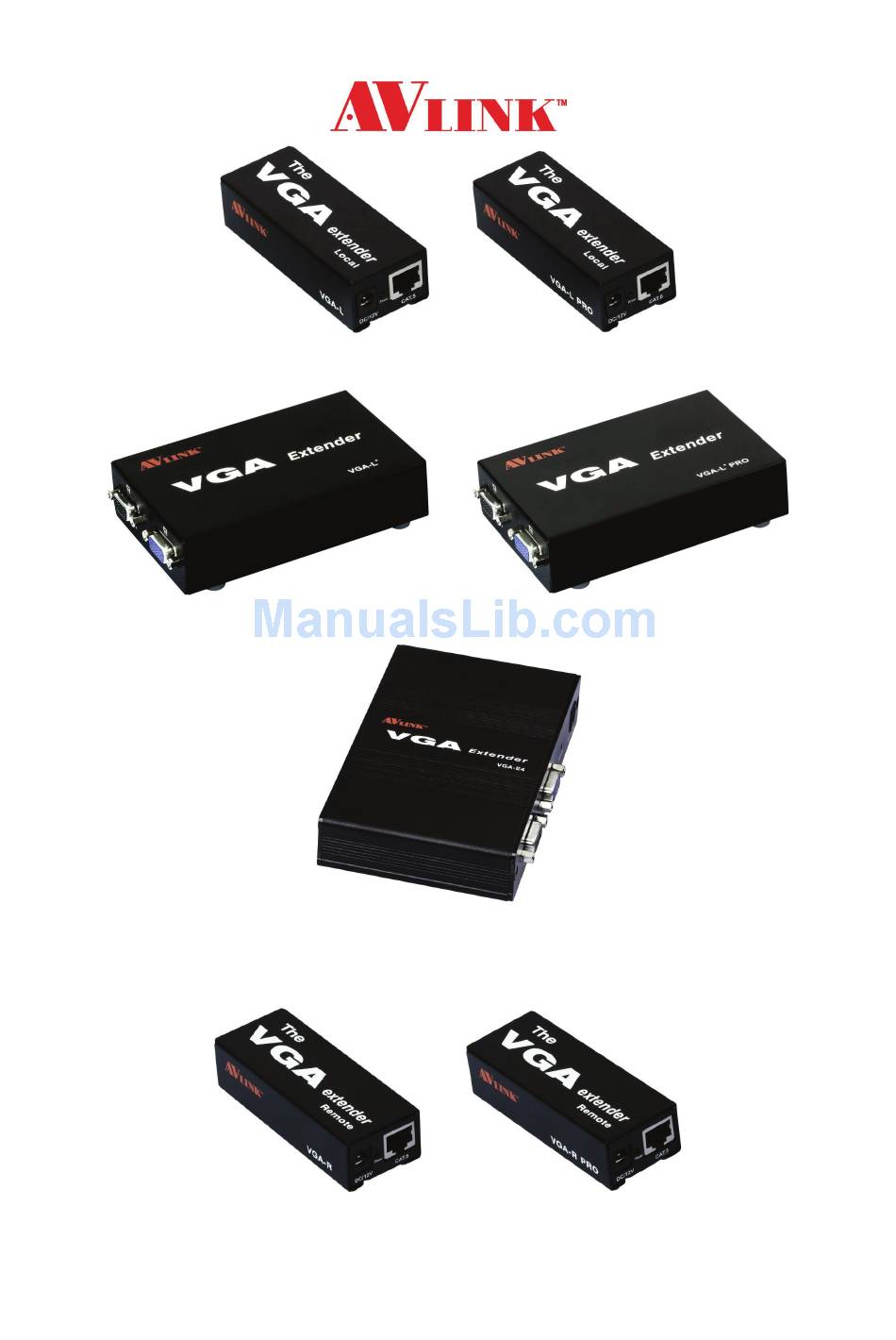

- Page 1 VGA EXTENDER VGA-L VGA-L-PRO VGA-L VGA-L -PRO VGA-E2/VGA-E4/VGA-E8 (Local) VGA-R VGA-R-PRO (Remote) ANUAL V1.1...
- Page 2 Package Contents for VGA-E VGA-L Local Unit VGA-R Remote Unit 1 user manual 2 power adapter DC 12V/600mA 1 VGA 1.2M cable (HD-15 Male to Male) Package Contents for VGA-E-PRO VGA-L-PRO Local Unit VGA-R-PRO Remote Unit 1 user manual 2 power adapter DC 12V/600mA 1 VGA 1.2M cable (HD-15 Male to Male)
- Page 3 Package Contents for VGA-E8 VGA-E8 Local Unit 1 user manual 1 power adapter DC 12V/600mA 1 VGA 1.2M cable (HD-15 Male to Male) Package Contents for VGA-R VGA-R Remote Unit 1 user manual 1 power adapter DC 12V/600mA Package Contents for VGA-R-PRO VGA-R-PRO Remote Unit 1 user manual 1 power adapter DC 12V/600mA...
-
Page 4: Specifications
VGA signal up to 180/300 meter on monitors. Equalization length is adjustable. VGA signal gain is adjustable. Specifications Function VGA-L VGA-R VGA-L-PRO VGA-R-PRO VGA In/Out Connector HD-15 Female x 1 RJ-45 Connector Max. Resolution 2048x1536 60Hz Cable Distance 180 m (Max.) 300 m (Max.) - Page 5 LOCAL FRONT VIEW VGA-L/VGA-L-PRO VGA-L /VGA-L -PRO VGA-E2/VGA-E4 VGA-E8 1. CAT.5 (RJ-45 Connector) 2. Power LED 3. Power jack LOCAL REAR VIEW VGA-L/VGA-L-PRO VGA-L /VGA-L -PRO VGA-E2/VGA-E4 VGA-E8 1. VGA Input (HD-15 Female Connector) 2. VGA Output (HD-15 Female Connector) 3.
-
Page 6: Installation
REMOTE REAR VIEW VGA-R/VGA-R-PRO 1. VGA Output (HD-15 Female Connector) REMOTE BOTTOM VIEW VGA-R/VGA-R-PRO 1. EQ – Equalization length adjust (Adjust it and weak characters be sharp) 2. GAIN – Adjust brightness Installation 1. Turn off the PC. 2. Connect VGA-Extender Local Unit HD-15 female input connector with HD-15 male to male cable from PC. -
Page 7: Additional Options
Additional Options Select any additional options you may require. 1. Power adapter-USB to DC 12V plug which supply power via PC to VGA-L/VGA-L-PRO Local Unit. (Item No: PUD125P) 2. It provides perfect skew delay correction, we suggest when distances over 150M it is needed. -
Page 8: Wiring Information & Coding
Distances and Resolutions for CAT.5/5E and CAT.6 cables 2048x1536 100M 1280x1024 CAT.5/5E 180M 1024x768 200M 800x600 300M 640x480 1920x1440 CAT.6 1280x1024 100M 800x600 PS. We suggest to use CAT.5 cable because the performance is better than others. Wiring Information & Coding Conductor Identification RJ45 Pin Assignment Color Code for Conductor White-Blue Pair 1...
