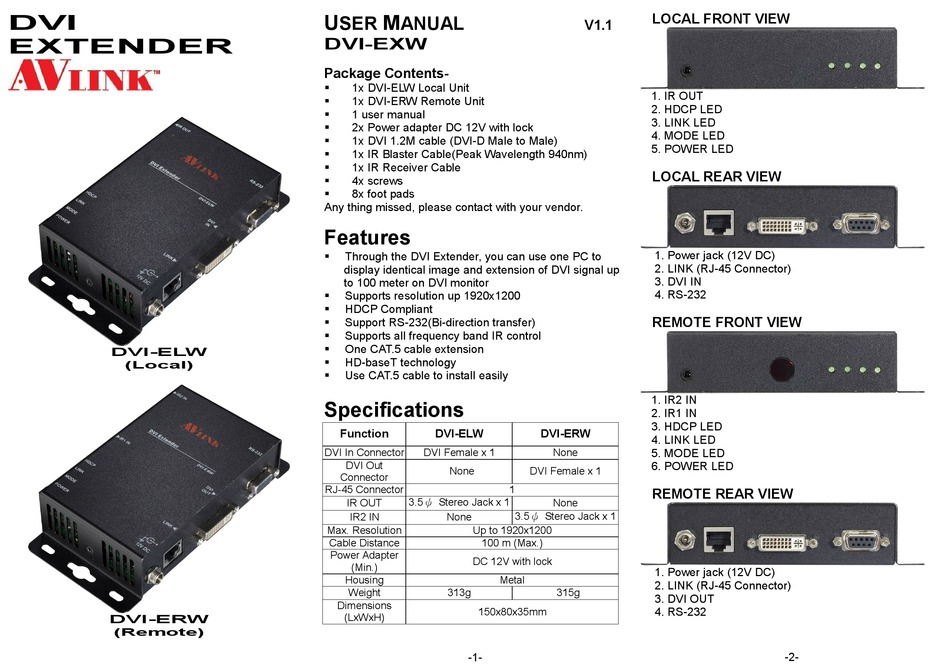

AVLink DVI-EXW User Manual

DVI
EXTENDER

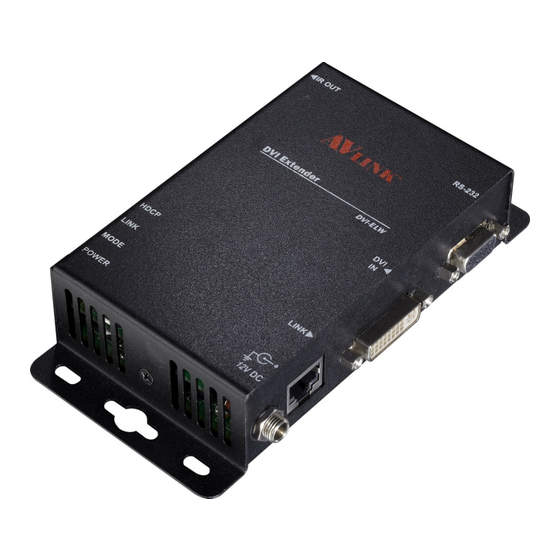

DVI-ELW
(Local)
DVI-ERW
(Remote)
U M
SER ANUAL
DVI-EXW
Package Contents-

1x DVI-ELW Local Unit
 1x DVI-ERW Remote Unit
 1 user manual

2x Power adapter DC 12V with lock

1x DVI 1.2M cable (DVI-D Male to Male)
 1x IR Blaster Cable(Peak Wavelength 940nm)
 1x IR Receiver Cable

4x screws

8x foot pads
Any thing missed, please contact with your vendor.
Features
 Through the DVI Extender, you can use one PC to
display identical image and extension of DVI signal up
to 100 meter on DVI monitor

Supports resolution up 1920x1200

HDCP Compliant
 Support RS-232(Bi-direction transfer)
 Supports all frequency band IR control

One CAT.5 cable extension

HD-baseT technology
 Use CAT.5 cable to install easily
Specifications
Function DVI-ELW
DVI In Connector DVI Female x 1
DVI Out
None
Connector
RJ-45 Connector
3.5ψ Stereo Jack x 1
IR OUT
IR2 IN None
Max. Resolution Up to 1920x1200
Cable Distance 100 m (Max.)
Power Adapter
DC 12V with lock
(Min.)
Housing Metal
Weight 313g
Dimensions
150x80x35mm
(LxWxH)
-1-
LOCAL FRONT VIEW
V1.1
1. IR OUT
2. HDCP LED
3. LINK LED
4. MODE LED
5. POWER LED
LOCAL REAR VIEW
1. Power jack (12V DC)
2. LINK (RJ-45 Connector)
3. DVI IN
4. RS-232
REMOTE FRONT VIEW
1. IR2 IN
2. IR1 IN
3. HDCP LED
DVI-ERW
4. LINK LED
None
5. MODE LED
6. POWER LED
DVI Female x 1
1
REMOTE REAR VIEW
None
3.5ψ Stereo Jack x 1
1. Power jack (12V DC)
2. LINK (RJ-45 Connector)
315g
3. DVI OUT
4. RS-232
-2-
