Summary of Contents for AVLink HDMI-LN
-

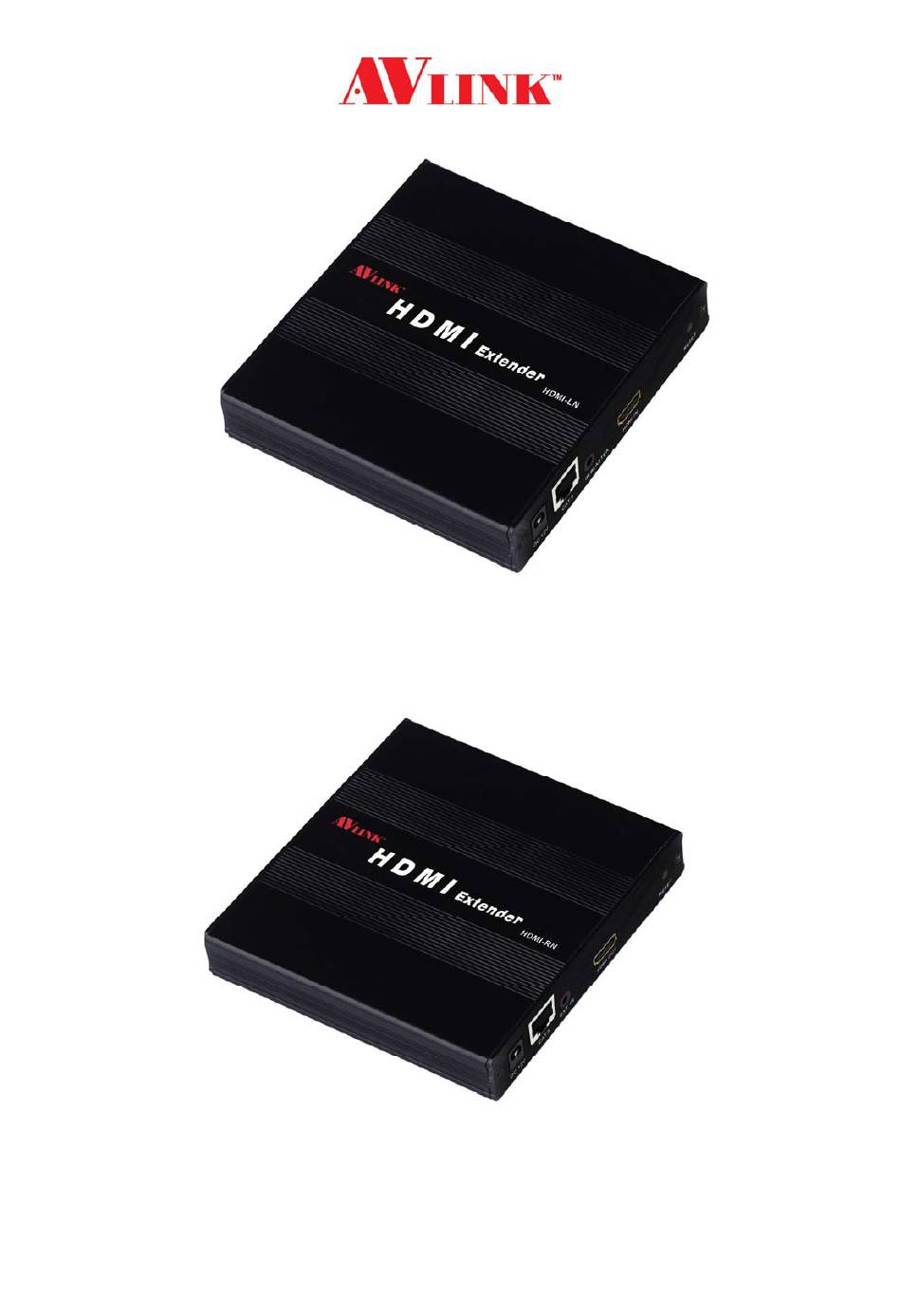

Page 1: Hdmi Extender

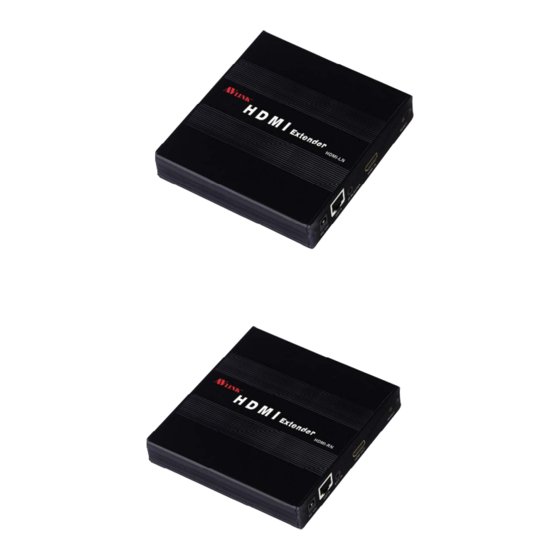

HDMI EXTENDER HDMI-LN (Local) HDMI-RN (Remote) ANUAL V1.3... -
Page 2: Specifications
Package Contents for HDMI-EN 1x HDMI-LN Local Unit 1x HDMI-RN Remote Unit 1x User manual 2x Power adapter DC 12V/600mA 1x HDMI 1.2M cable 1x IR Blaster (Peak Wavelength 940nm) << HDMI-EN supports 38KHz Infrared-Rays signal only; not compatible with all IR Remote Controllers.>>... - Page 3 LOCAL FRONT VIEW 1. Link LED 2. Data LED 3. Power LED LOCAL REAR VIEW 1. Power jack CAT.5 (RJ-45 Connector) 3. IR BLASTER 4. HDMI In 5. Reset Button REMOTE FRONT VIEW 1. IR Receiver 2. Link LED 3. Data LED 4.
- Page 4 Put it into the HDMI-RN “EXT. IR” port and place the IR-BOX, so that you can point to it easily with your IR remote controller. IR BLASTER Directions: Plug IR blaster plug into HDMI-LN “IRBLASTER” port, It sits in front of the DVD receiver’s IR sensor, which is located on the front-panel. Additional Options Select any additional options you may require.
-
Page 5: Technical Specifications
Support Resolution Resolution Frequency(Hz) 720x400 640x480 60 / 67 / 72 / 75 848x480 800x600 56 / 60 / 72 / 75 832X624 1024x768 60 / 70 / 75 1152x864 1152x870 1280x960 1280x1024 60 / 75 1360x768 1440x900 60 / 75 1440x1050 1680x1050 480p... - Page 6 Wiring Information & Coding Conductor Identification RJ45 Pin Assignment Color Code for Conductor White-Blue Pair 1 Blue White-Orange Pair 2 Orange White-Green Pair 3 Green White-Brown Pair 4 Brown © C&C TECHNIC TAIWAN CO., LTD. All rights reserved. Trademarks: All the companies, brand names, and product names referred to this manual are the trademarks or registered trademarks belonging to their respective companies.
