Summary of Contents for AVLink VGA-L

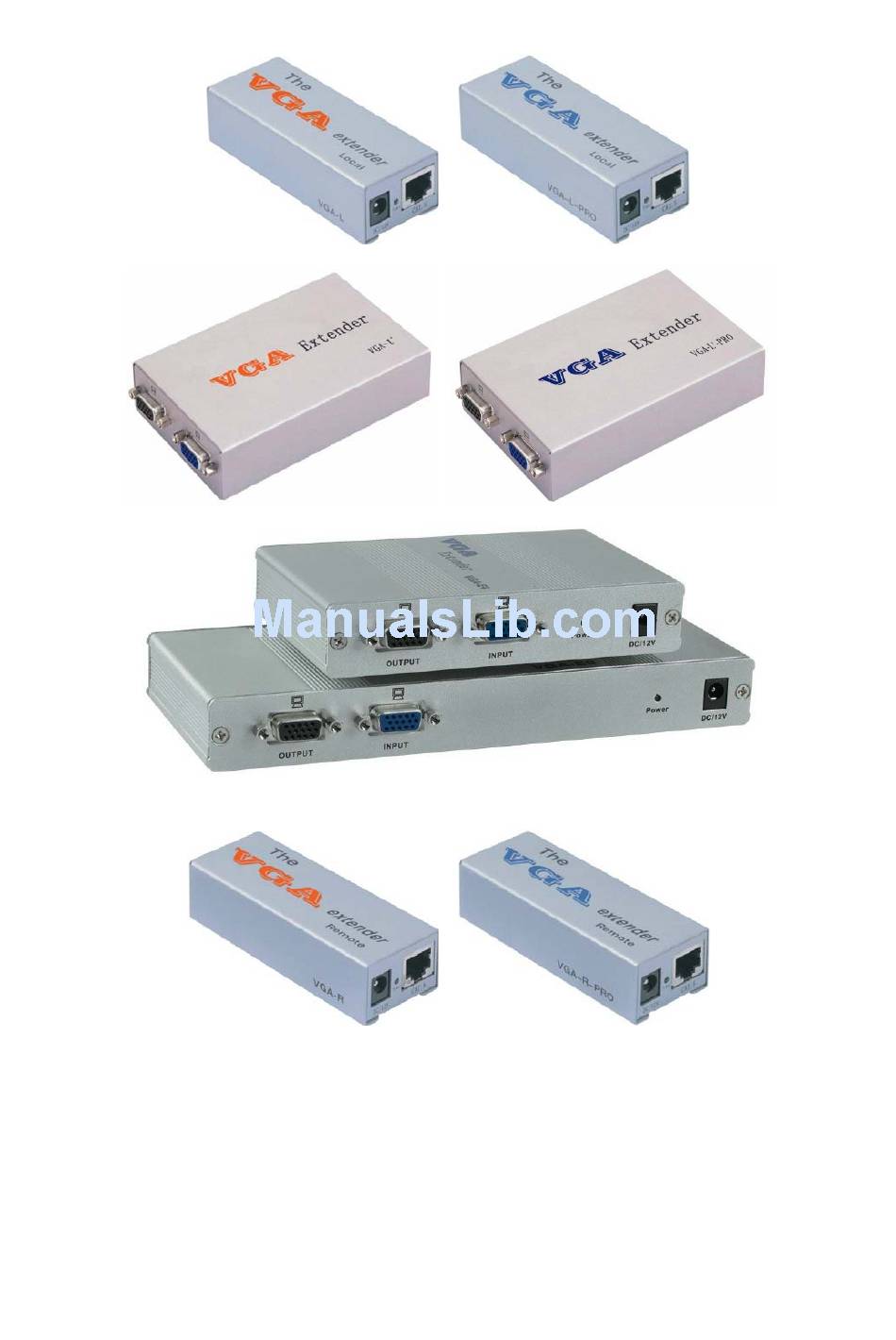

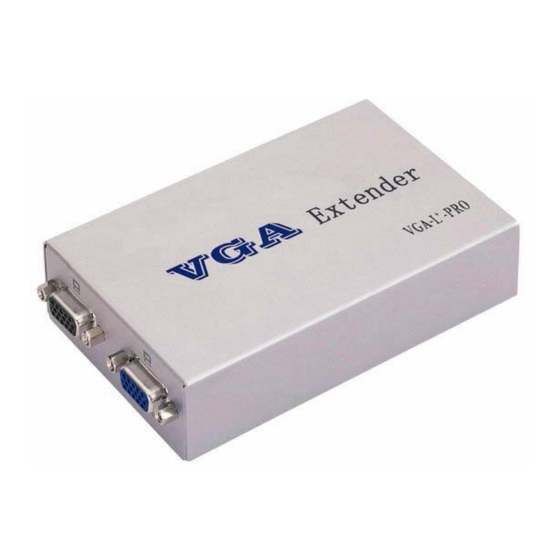

- Page 1 VGA EXTENDER VGA-L VGA-L-PRO VGA-L VGA-L -PRO VGA-E2/VGA-E4/VGA-E8 (Local) VGA-R VGA-R-PRO (Remote)
- Page 2 ANUAL Package Contents for VGA-E § VGA-L Local Unit § VGA-R Remote Unit § 1 user manual § 2 power adapter DC 12V/600mA § 1 VGA 1.2M cable (HD-15 Male to Male) Package Contents for VGA-E-PRO § VGA-L-PRO Local Unit §...
-
Page 3: Specifications
VGA signal up to 180/300 meter on monitors. § Equalization length is adjustable. § VGA signal gain is adjustable. Specifications Function VGA-L VGA-R VGA-L-PRO VGA-R-PRO VGA In/Out Connector HD-15 Female x 1 RJ-45 Connector Max. Resolution 1280x1024 60Hz Cable Distance 180 m (Max.) 300 m (Max.) Power Adapter (Min.) -
Page 4: Installation
VGA-E2/VGA-E4 VGA-E8 1. VGA In (HD-15 Female Connector) 2. VGA Out (HD-15 Female Connector) 3. Power LED 4. Power jack REMOTE FRONT VIEW VGA-R/VGA-R-PRO 1. Power jack 2. Power LED CAT.5 (RJ-45 Connector) REMOTE REAR VIEW VGA-R/VGA-R-PRO 1. VGA Out (HD-15 Female Connector) REMOTE BOTTOM VIEW VGA-R/VGA-R-PRO 1. -
Page 5: Additional Options
Additional Options Select any additional options you may require. 1. Power adapter-USB to DC 12V plug which supply power via PC to VGA-L/VGA-L-PRO Local Unit. (Item No: PUD125P) 2. It provides perfect skew delay correction, we suggest when distances over 150M it is needed. -
Page 6: Wiring Information & Coding
Wiring Information & Coding Conductor Identification RJ45 Pin Assignment Color Code for Conductor White-Blue Pair 1 Blue White-Orange Pair 2 Orange White-Green Pair 3 Green White-Brown Pair 4 Brown Trademarks: All the companies, brand names, and product names referred to this manual are the trademarks or registered trademarks belonging to their respective companies.
