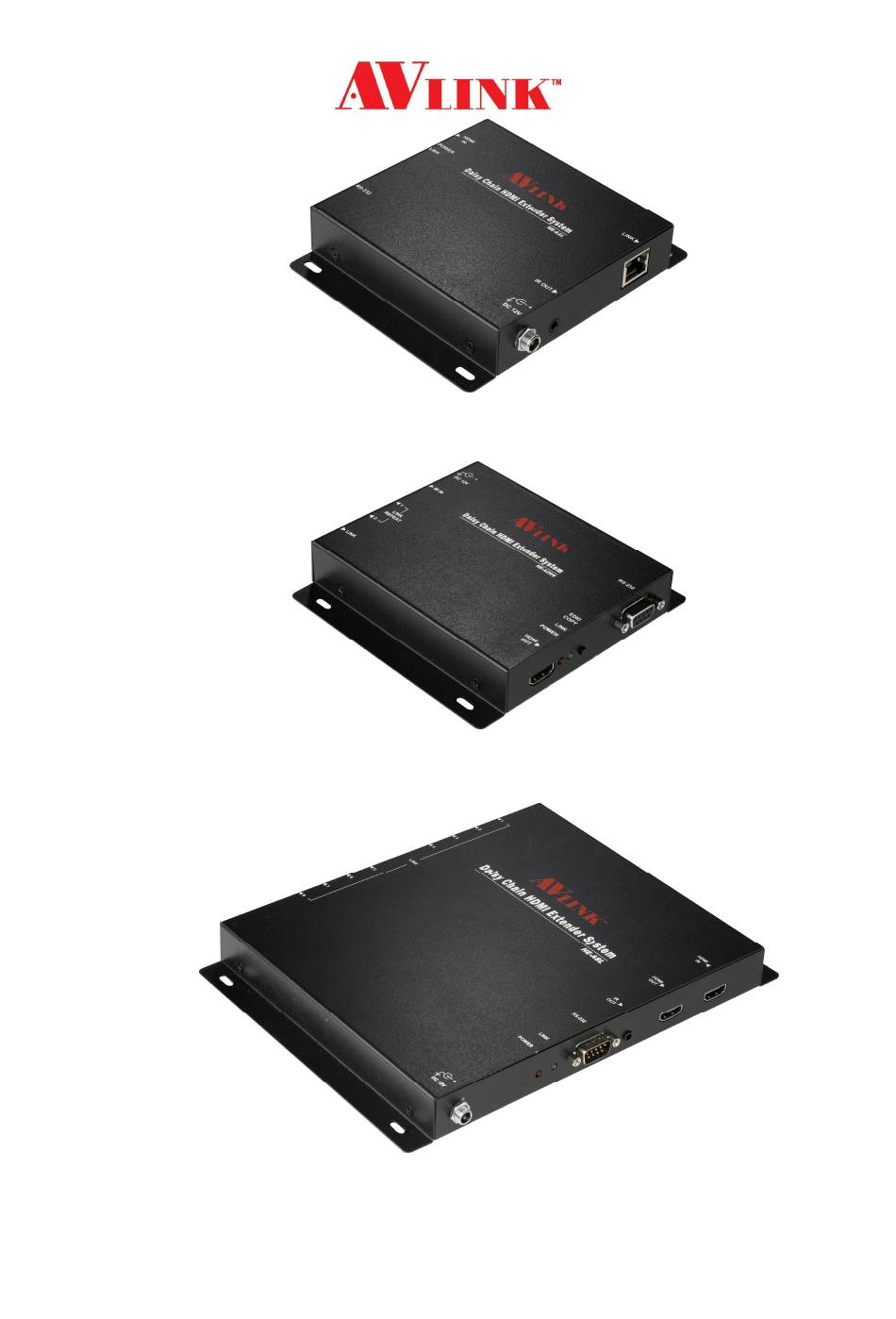

- Page 1 Daisy Chain HDMI Extender System Local Unit (HE-A1L) Repeater Unit (HE-A2RS) 8-Port Distribution Amplifier (HE-A8L) U M ...
- Page 2 Package Contents for HE-A1L Local Unit x 1 1 user manual 1 power adapter DC 12V/1.25A 1 IR Blaster Cable Package Contents for HE-A2RS Repeater Unit x 1 ...
-
Page 3: Specifications
8-Port Distribution A mplifier (HE-A8L) HDMI Input Support Up To 1920x1200@60Hz (DVI Format) and 1080P@60Hz (HDMI Format). 100 Meters Extension with the 1080P Resolution by ONE SINGLE CAT5/6 Cable Visually Lossless Compression A lgorithm ... - Page 4 HE-A2RS 1. HDMI OUTPUT 2. POWER LED 3. LINK LED 4. EDID COPY PUSHBUTTON 5. RS-232 HE-A8L 1. DC JACK 2. POWER LED 3. LINK LED 4.
-
Page 5: Installation
Installation 1. Turn OFF the Video Source Device and Monitor 2. Connect the HDMI cable between the Video Source Device and the "HDMI IN" port of HE-A1L (or HE-A8L) 3. Connect the HDMI cable between the Monitor and the "HDMI OUT" port of HE-A2RS 4. - Page 6 HE-A8L / A 2RS © C&C TECHNIC TAIWAN CO., LTD. All rights reserved. Trademarks: All the companies, brand names, and product names referred to this manual are the trademarks or registered trademarks belonging to their respective companies.
