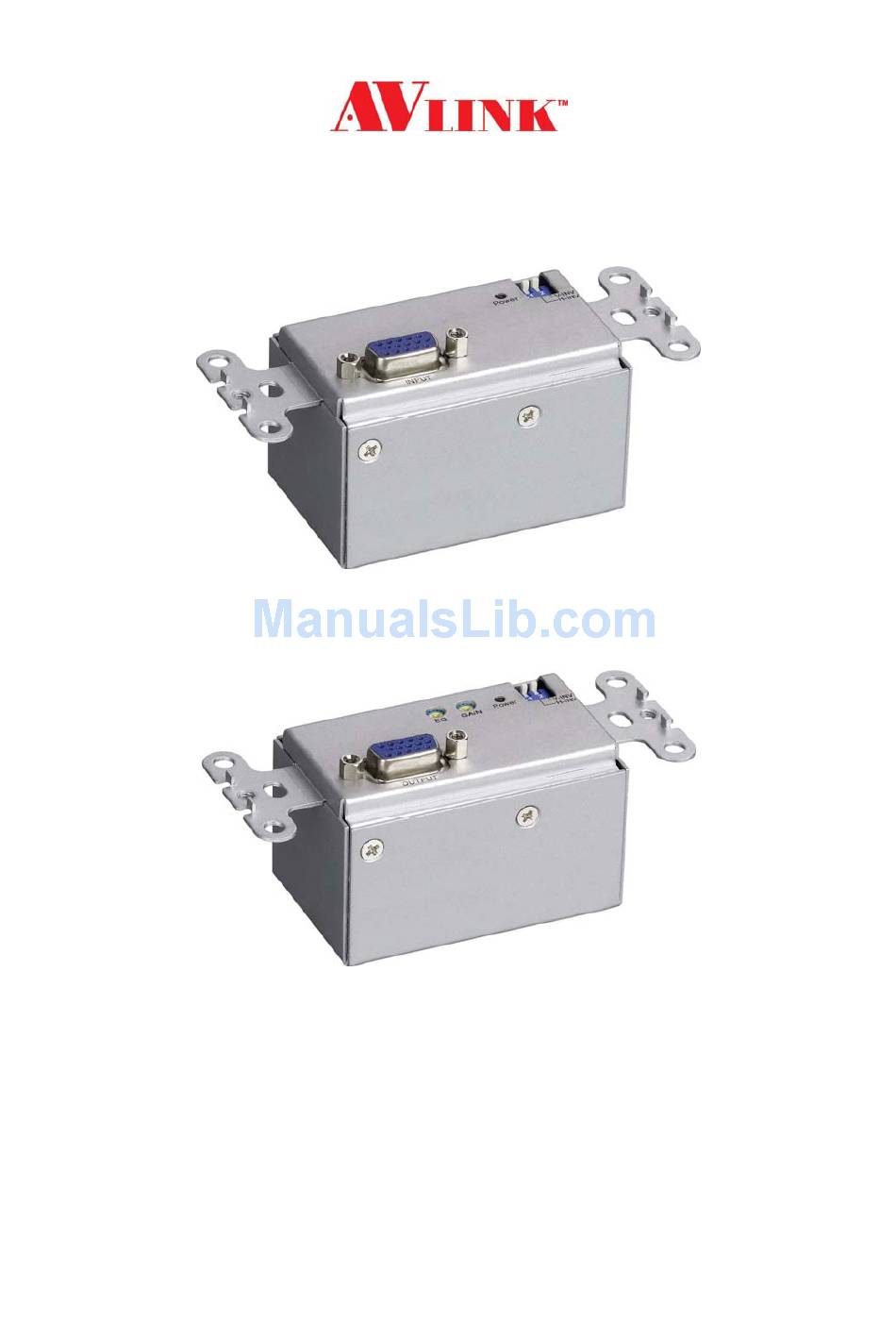

- Page 1 VGA EXTENDER WVGA-LJ (Local) WVGA-RJ (Remote) ANUAL V1.0...
- Page 2 Package Contents for WVGA-EJ WVGA-LJ Local Unit WVGA-RJ Remote Unit 1 user manual 2 power adapter DC 12V/600mA 1 VGA 1.2M cable (HD-15 Male to Male) 2 captive screw connectors 4 M4*10mm screws 4 P6*14mm screws Package Contents for WVGA-RJ...
-
Page 3: Specifications
Through the VGA Extender, you can use one PC to display identical image and extension of VGA signal up to 300 meter on monitors. Equalization length is adjustable. VGA signal gain is adjustable. Specifications Function WVGA-LJ WVGA-RJ VGA In/Out Connector HD-15 Female x 1 Cable Connector RJ-45 Female Max. - Page 4 LOCAL REAR VIEW 1. Power Connector 2. RJ-45 Connector REMOTE FRONT VIEW 1. VGA Output (HD-15 Female Connector) 2. EQ – Equalization length adjust (Adjust it and weak characters be sharp) 3. GAIN – Adjust brightness 4. Power LED 5. Control H/V signal inverting switch The default setting of SW1 is “OFF”.
-
Page 5: Installation
REMOTE REAR VIEW 1. Power Connector 2. RJ-45 Connector Installation 1. Turn off the PC. 2. Connect WVGA-Extender Local Unit HD-15 female input connector with HD-15 male to male cable from PC. 3. Connect WVGA-Extender Local Unit HD-15 female output connector with HD-15 male to male cable from monitor. - Page 6 Wiring Information & Coding Conductor Identification RJ45 Pin Assignment Color Code for Conductor White-Blue Pair 1 Blue White-Orange Pair 2 Orange White-Green Pair 3 Green White-Brown Pair 4 Brown Adaptor Output Polarity Color Code for PIN # Output Level Conductor +12V Black-White RTN(-)
-
Page 7: Additional Options
Additional Options Select any additional options you may require. It provides perfect skew delay correction, we suggest when distances over 150M it is needed. (Item No: SK-101) Distances and Resolutions for CAT.5/5E and CAT.6 cables 2048x1536 100M 1280x1024 CAT.5/5E 180M 1024x768 200M 800x600...
