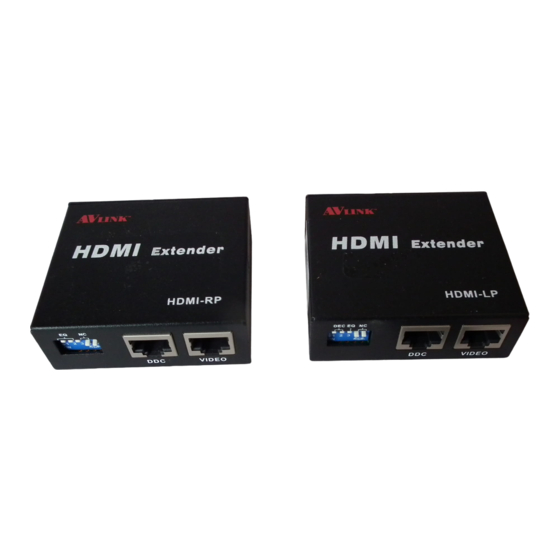

AVLink HDMI-RP User Manual

HDMI
EXTENDER
HDMI-LP
(Local)
HDMI-RP
(Remote)
U M
SER ANUAL
HDMI-EP
Package Contents-
HDMI Extender Local Unit
HDMI Extender Remote Unit
1 user manual
2 power adapter DC 5V 1A
Any thing missed, please contact with your vendor.

Introduction

The extension of HDMI video signal device up to 60 meter
away by using HDMI extender and two CAT.5 cables.
HDMI extender is ideal for:
Test bench facilities
Data Center
Help desks

Features

Support 480p/720p/1080i/1080p.
HDTV resolution up to 1080p(8Bit) / 30 meter. (Cat.5)
HDTV resolution up to 1080p(12Bit) / 20 meter.(Cat.6e)
Compliant with the specification of HDMI.
Support DDC & HDCP.
Use CAT.5 cable to install easily.

Specifications

Function
1 HDMI A-Type
Input Connector
Output Connector 2 RJ-45 Female
Max. Resolution
Cable Distance
Power Adapter (Min.)
Housing
Weight
Dimensions (LxWxH)

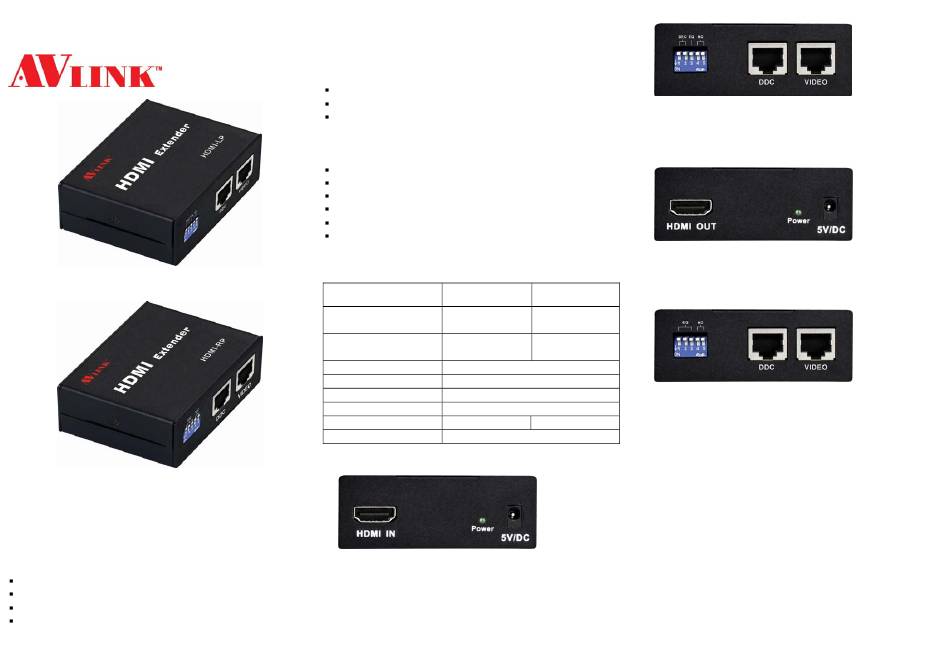

LOCAL FRONT VIEW
V1.2
1. "HDMI In" Port
2. Power LED
3. Power Jack
HDMI-LP HDMI-RP
2 RJ-45 Female
Female
1 HDMI A-Type
Female
1080p(12Bit)
60 m (Max.)
DC 5V 1A
Metal
141g 140g
70x60x25 mm

Installation

1. Turn off the DVD and HDTV.
2. Connect the HDMI extension cable between the DVD
3. Connect the HDMI extension cable between the HDTV
4. Connect the CAT.5 cables between the HDMI-LP
5. Connect the CAT.5 cables between the HDMI-LP
6. Connect the power cord and turn on the extender.
7. Turn on the DVD and HDTV.
-1-
LOCAL REAR VIEW
1. DEC/EQ Selected
2. "CAT.5" DDC Port
3. "CAT.5" Video Port
REMOTE FRONT VIEW
1. "HDMI Out" Port
2. Power LED
3. Power Jack
REMOTE REAR VIEW
1. EQ Selected
2. "CAT.5" DDC Port
3. "CAT.5" Video Port
and the "HDMI In" port of HDMI-LP.
and the "HDMI Out" port of HDMI-RP.
"CAT.5" DDC port and the HDMI-RP "CAT.5" DDC port
of extender.
"CAT.5" Video port and the HDMI-RP "CAT.5" Video port
of extender.
-2-
