AVLink DVI-LD User Manual

DVI
EXTENDER
(Support EDID copy)
DVI-LD
(Local)
DVI-R
(Remote)
U M
SER ANUAL
DVI-ED
Package Contents-

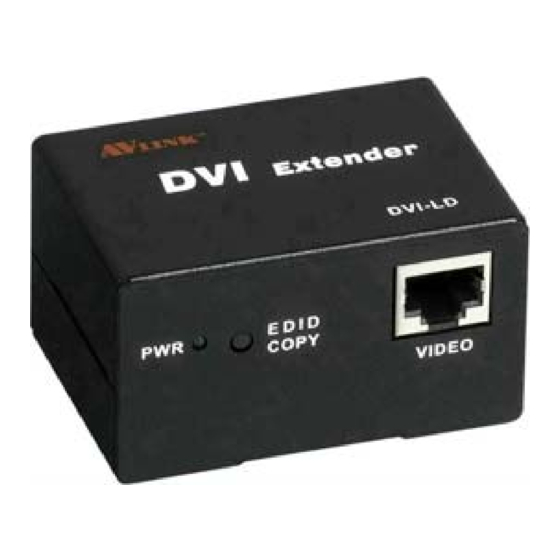

DVI Extender Local Unit
DVI Extender Remote Unit
1 user manual
2 power adapter DC 5V 1A
Anything missed, please contact with your vendor.
Introduction
The extension of DVI-ED video signal device up to 30/50
meter away by using DVI extender and one CAT.5 cable,
and it support "EDID COPY" ability. The DVI-LD can read
and remember the EDID of your monitor by you push
"EDID COPY" button. Make the PC send out the beat
resolution to match monitor for your application.
DVI extender is ideal for:
Test bench facilities
Data Center
Help desks
Features
PC resolution to 1600x1200 60Hz / 30 meter.
PC resolution to 1280x1024 60Hz / 50 meter.
Support DVI-D.
Support EDID copy.
Use CAT.5 cable to install easily.
Specifications
Function
Input Connector
Output Connector
Max. Resolution
Cable Distance
Power Adapter (Min.)
Housing
Weight
Dimensions (LxWxH)
V1.2
DVI-LD DVI-R
1 DVI Female 1 RJ-45 Female
1 RJ-45 Female 1 DVI Female
1600x1200 60Hz /
1280x1024 60Hz
30/50 m (Max.)
DC 5V 1A
Metal
141g
67x52x38 mm
-1-

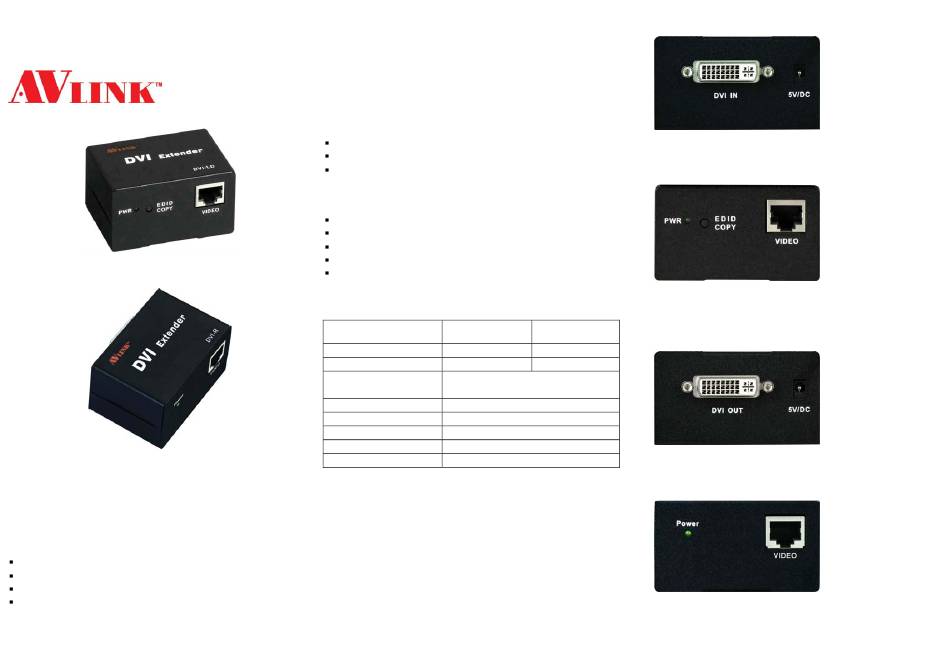

LOCAL FRONT VIEW
1. "DVI In" Port
2. Power Jack
LOCAL REAR VIEW
1. Power LED
2. "EDID COPY" Button
3. "CAT.5" Port
REMOTE FRONT VIEW
1. "DVI Out" Port
2. Power Jack
REMOTE REAR VIEW
1. Power LED
2. "CAT.5" Port
-2-
