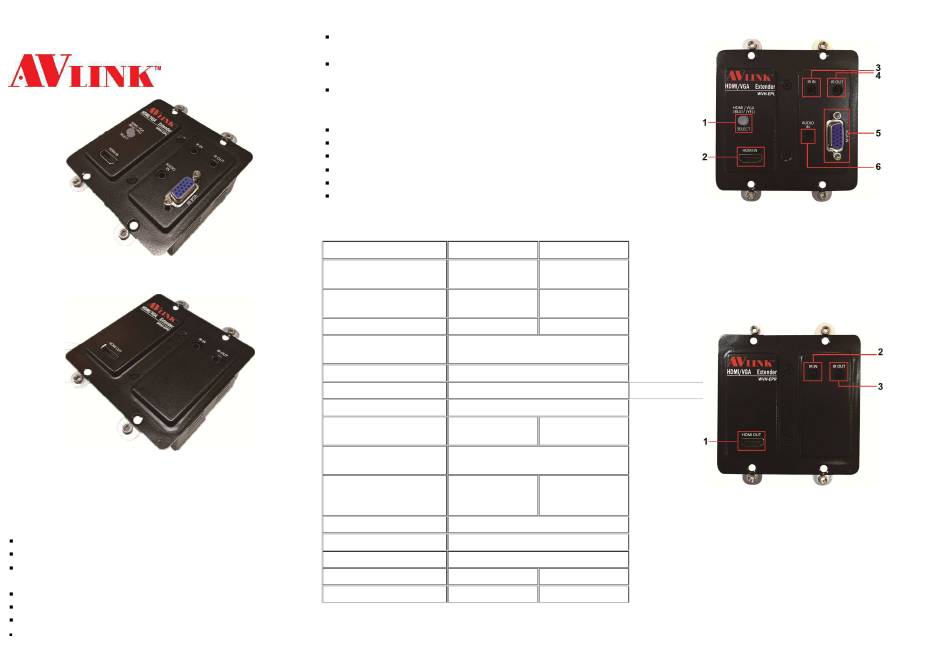

AVLink WVH-EPL User Manual

HDMI/VGA
Extender
WVH-EPL
WVH-EPR
U M
SER ANUAL
WVH-EPX
Package Contents-
1x WVH-EPL and WVH-EPR Unit
1 user manual
1x Power adapter DC 48V (With 1x2 Pole Captive
Screw Socket)
4x screws
2x Female 1x3 Pole Captive Screw Socket
1x IR receiver cable
1x IR blaster cable (Peak Wavelength 940nm)
Anything missed, please contact with your vendor.
Features
HDBaseT™ delivers Ultra HD (4K2K@30Hz with
YCbCr 4:4:4 and 4K2K@60Hz with YCbCr 4:2:0)
Fully compliant with HDMI 1.4, and compatible with
HDMI 2.0 (4K2K 60Hz with 4:2:0 coding)
Supports all standard formats of audio, such as Dolby
Digital, DTS, Dolby TrueHD, DTS HD-Master Audio
and more.
VGA IN supports up to 1080P@60 (12bits)
Supports Power over Cable
HDCP 1.x,2.2 compliant.
All frequency of IR receiver and emitter (bi-direction).
RS-232 for upgrade firmware
Use CAT.5/5e/6 cable to install easily.

Specifications

Function
HDMI Input Connector
HDMI Output Connector
VGA Input Connector
Source select
(HDMI/VGA)
LINK
IR IN
IR OUT
Audio In
Max. Resolution
V1.0
Power Adapter (Min.)
Cable Distance
RS-232 Connector
Housing
Weight
Dimensions (LxWxH)
WVH-EPL WVH-EPR
1
NONE
(A-Type Female)
1
NONE
(A-Type Female)
1 NONE
LED SW X1 (BLU/YEL)
RJ-45 Connector x 1
3.5ψ Stereo Jack x 1
3.5ψ Stereo Jack x 1
3.5ψ Stereo Jack
NONE
x 1
4KX2K@60 4:2:0 (HDMI IN),
1080P@60 12bits(VGA IN)
DC 48V 0.28A
(1x2 Pole Captive NONE
Screw Socket)
Cat.6@100 meters (Max.)
1X3 Pole Captive Screw Socket x 1
Metal
265g 260g
107x92x45mm 107x92x39mm
-1-

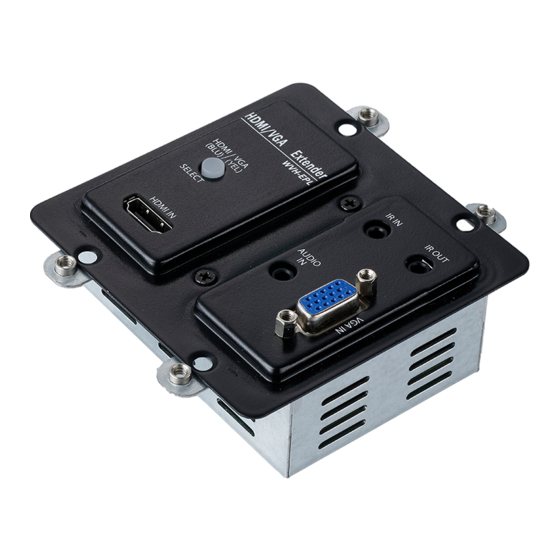

FRONT VIEW
WVH-EPL
1. Source select (HDMI/VGA)
2. 1x HDMI Input Connector (A-Type Female)
3. IR Input
4. IR Output
5. VGA Input Connector
6. Audio Input
WVH-EPR
355g
1. 1x HDMI Output Connector (A-Type Female)
2. IR Input
3. IR Output
-2-
