MAGICEYE
Magic eye with IR with coaxial lead
DESCRIPTION:
Magic eye Digital Link will allow control of your SKY Digital satellite receiver whilst viewing
in other rooms around the home. This unit is compatible with UK digital satellite receivers
with an output marked RF-OUT2 that provides a second TV output together with a 9V DC
supply.

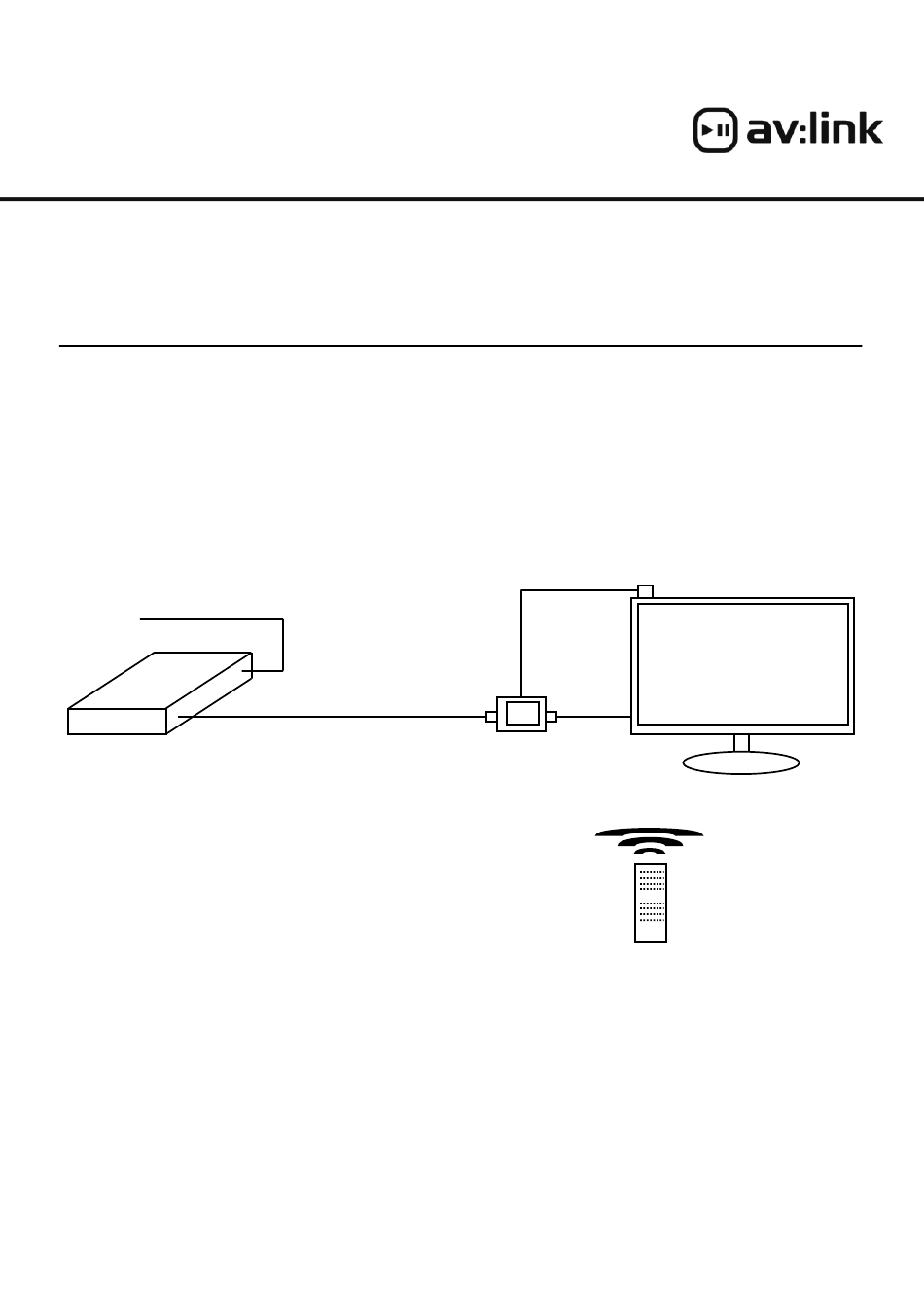

TV
1
RF2
Satellit
e
decoder
INSTALLATION:
Use only good quality cable for installation and avoid sharp bends or install near mains
cable. For installation together with amplifier, splitter or isolated outlet plate please refer
back to dealer for advice.
1.
Unplug both TV and Decoder from the mains.
2.
Plug the Magic eye's coaxial lead into the aerial socket of the TV.
3.
Connect Decoder's RF2 outlet to Magic eye's input socket using male to male IEC
connector Coaxial cable.
4.
Plug in the mains for both TV and Decoder, switch both devices on.
www.avsl.com
Coaxial cable
Magic eye
Item ref:124.157UK
User Manual
IR
sensor
TV
2
Sky
Remote
124.157UK Manual
