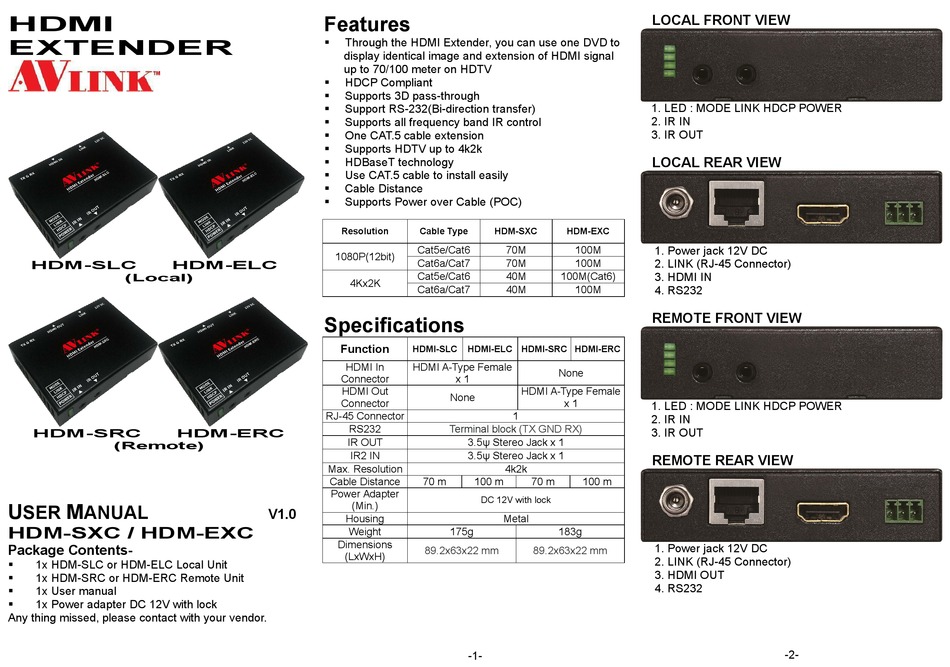

AVLink HDM-SLC User Manual

HDMI
EXTENDER

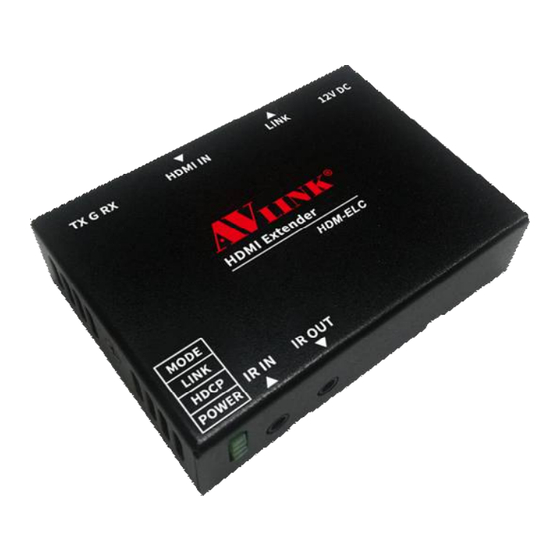

HDM-SLC HDM-ELC
(Local)
HDM-SRC HDM-ERC
(Remote)
U M
SER ANUAL
HDM-SXC / HDM-EXC
Package Contents-
 1x HDM-SLC or HDM-ELC Local Unit
 1x HDM-SRC or HDM-ERC Remote Unit
 1x User manual

1x Power adapter DC 12V with lock
Any thing missed, please contact with your vendor.
Features

Through the HDMI Extender, you can use one DVD to
display identical image and extension of HDMI signal
up to 70/100 meter on HDTV
 HDCP Compliant

Supports 3D pass-through

Support RS-232(Bi-direction transfer)
 Supports all frequency band IR control

One CAT.5 cable extension

Supports HDTV up to 4k2k
 HDBaseT technology
 Use CAT.5 cable to install easily
 Cable Distance

Supports Power over Cable (POC)
Resolution Cable Type
Cat5e/Cat6
1080P(12bit)
Cat6a/Cat7
Cat5e/Cat6
4Kx2K
Cat6a/Cat7
Specifications
Function
HDMI-SLC
HDMI In HDMI A-Type Female
Connector
HDMI Out
Connector
RJ-45 Connector
RS232
IR OUT
IR2 IN
Max. Resolution
Cable Distance 70 m
Power Adapter
(Min.)
V1.0
Housing
Weight
Dimensions
89.2x63x22 mm
(LxWxH)
HDM-SXC HDM-EXC
70M 100M
70M 100M
40M 100M(Cat6)
40M 100M
HDMI-ELC HDMI-SRC HDMI-ERC
None
x 1
HDMI A-Type Female
None
x 1
1
Terminal block (TX GND RX)
3.5ψ Stereo Jack x 1
3.5ψ Stereo Jack x 1
4k2k
100 m 70 m 100 m
DC 12V with lock
Metal
175g 183g
89.2x63x22 mm
-1-
LOCAL FRONT VIEW
1. LED : MODE LINK HDCP POWER
2. IR IN
3. IR OUT
LOCAL REAR VIEW
1. Power jack 12V DC
2. LINK (RJ-45 Connector)
3. HDMI IN
4. RS232
REMOTE FRONT VIEW
1. LED : MODE LINK HDCP POWER
2. IR IN
3. IR OUT
REMOTE REAR VIEW
1. Power jack 12V DC
2. LINK (RJ-45 Connector)
3. HDMI OUT
4. RS232
-2-
