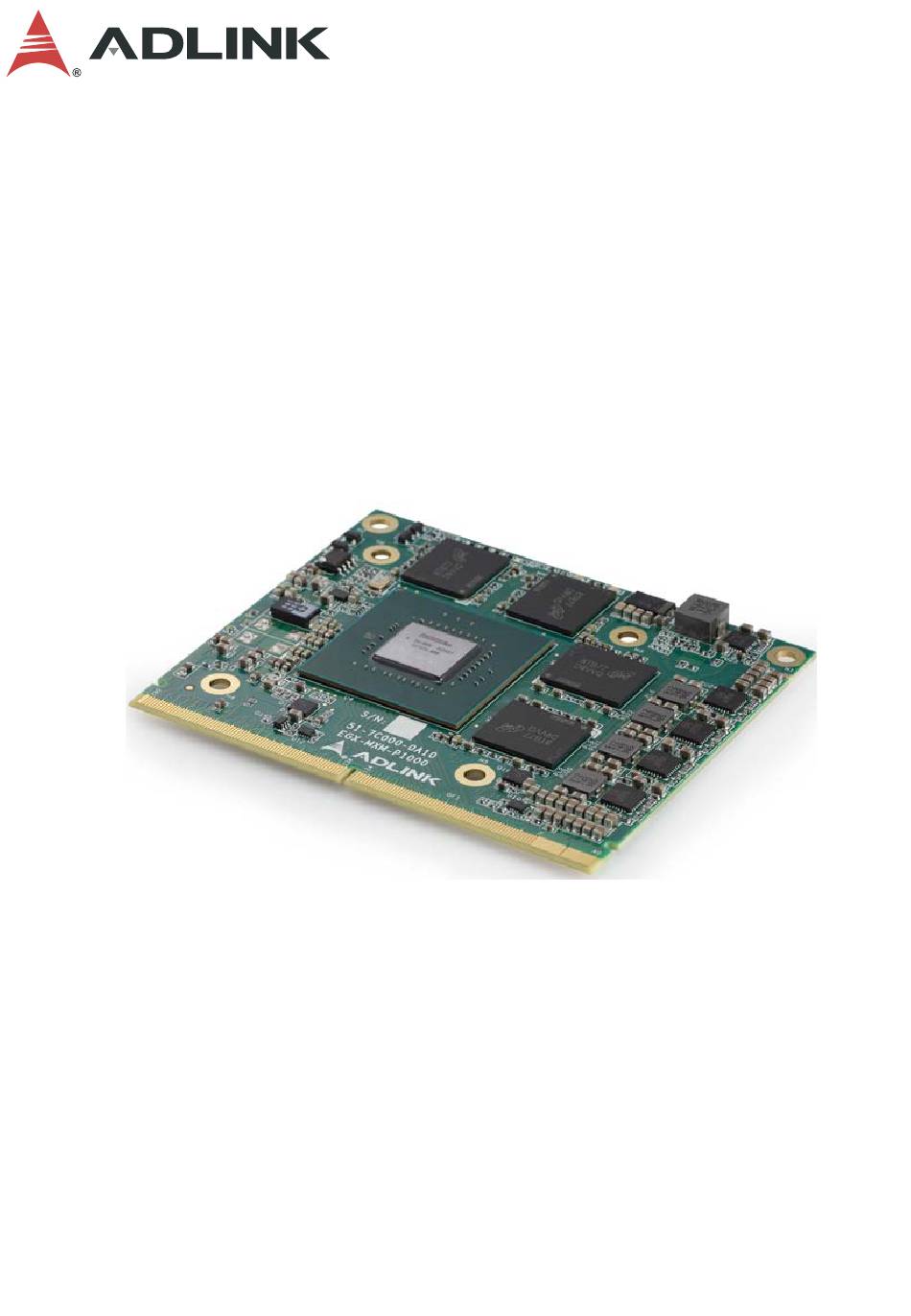

- Page 1 MXM-P1000 NVIDIA® Pascal™ GP107 Quadro® P1000 Embedded Graphics Module User’s Manual Manual Rev.: Revision Date: June 19, 2019 Part No: 50-1Z297-1000 Leading EDGE COMPUTING...
- Page 2 Leading EDGE COMPUTING Revision History Revision Release Date Description of Change(s) June 19, 2019 Initial Release...
- Page 3 MXM-P1000 Preface Copyright 2019 ADLINK Technology Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
- Page 4 Leading EDGE COMPUTING Battery Labels (for products with battery) California Proposition 65 Warning WARNING: This product can expose you to chemicals including acrylamide, arsenic, benzene, cadmium, Tris(1,3-dichloro-2-propyl) phosphate (TDCPP), 1,4- Dioxane, formaldehyde, lead, DEHP, styrene, DINP, BBP, PVC, and vinyl materials, which are known to the State of California to cause cancer, and acrylamide, benzene, cadmium, lead, mercury, phthalates, toluene, DEHP, DIDP, DnHP, DBP, BBP, PVC, and vinyl materials, which are known to the State of...
- Page 5 MXM-P1000 Information to prevent minor physical injury, component dam- age, data loss, and/or program corruption when trying to com- plete a task. CAUTION: Information to prevent serious physical injury, component damage, data loss, and/or program corruption when trying to complete a specific task.
- Page 6 Leading EDGE COMPUTING This page intentionally left blank. Preface...
-
Page 7: Table Of Contents
MXM-P1000 Table of Contents Preface ..................iii List of Tables................ix List of Figures ................ xi 1 Introduction ................ 1 Overview................1 Features................1 Specifications............... 2 1.3.1 Board ................2 1.3.2 Memory Configuration ..........2 1.3.3 Display Support and Options........3 1.3.4... - Page 8 Leading EDGE COMPUTING Important Safety Instructions..........17 Getting Service ..............21 viii Table of Contents...
-
Page 9: List Of Tables
MXM-P1000 List of Tables Table 1-1: Graphics Module Display Options ......3 Table 1-2: NVIDEA Link Display Types ........4 Table 1-3: MXM Connector Pin Assignments......6 Table 1-4: Thermal Policy............12 List of Tables... - Page 10 Leading EDGE COMPUTING This page intentionally left blank. List of Tables...
-
Page 11: List Of Figures
MXM-P1000 List of Figures Figure 1-1: MXM-P1000 Dimensions..........5 Figure 1-2: MXM-P1000 Component Layout ........ 6 Figure 1-3: MXM Connector Pins..........6 Figure 2-1: Power Sequencing ........... 13 Figure 2-2: Module Power Down ..........14 Figure 2-3: Reset Sequencing ............ 14 Figure 2-4: Dual Mode DisplayPort Implementation .... - Page 12 Leading EDGE COMPUTING This page intentionally left blank. List of Figures...
-
Page 13: Introduction
MXM-P1000 Introduction 1.1 Overview The MXM-P1000 module features advanced NVIDIA® Quadro® Pascal™ architecture in the MXM 3.1 Type A form factor. The P1000 brings a new level of performance to visual graphics and computing applications, fully integrating hardware acceleration for both graphics and computing code, enabling hardware accelera- tion for a wider class of software applications than ever before. -
Page 14: Specifications
Leading EDGE COMPUTING 1.3 Specifications 1.3.1 Board Graphics Core Architecture NVIDIA® Pascal™ GP107 Quadro® P1000 4x DisplayPort 1.4 digital video outputs Display Outputs Support for High Dynamic Range (HDR) video 4K at 120Hz or 5K at 60Hz with 10-bit color depth Signal Interface MXM 3.1, PCI Express Gen3 x16 support GPGPU Computing... -
Page 15: Display Support And Options
DirectX® 12 OpenGL 4.5 Vulcan 1.0 1.3.6 Graphics Options The MXM-P1000 supports 4xDisplayPort by default. EGX-MXM- P1000 graphics module display options are as shown. MXM port DP_A DP_B DP_C DP_D NVIDIA Link Link E Link F... -
Page 16: Functional Block Diagram
Leading EDGE COMPUTING Link Display Type Link A DisplayPort, DVI (Single Link or Dual Link with Link B) Link B DisplayPort, DVI (Dual Link with A) Link C DisplayPort, HDMI Link D Internal/ eDP only Link E DisplayPort, HDMI Link F DisplayPort Table 1-2: NVIDEA Link Display Types 1.4 Functional Block Diagram... -
Page 17: Layout And I/O
MXM-P1000 1.5 Layout and I/O All dimensions shown are in mm NOTE: NOTE: Figure 1-1: MXM-P1000 Dimensions Introduction... -
Page 18: Mxm Connector
Leading EDGE COMPUTING Figure 1-2: MXM-P1000 Component Layout 1.5.1 MXM Connector Figure 1-3: MXM Connector Pins Primary Side (underside) Secondary Side (top side) Signal PU/PD/NI Pin Signal PU/PD/NI PWR_SRC PWR_SRC Table 1-3: MXM Connector Pin Assignments Introduction... - Page 19 MXM-P1000 Primary Side (underside) Secondary Side (top side) Signal PU/PD/NI Pin Signal PU/PD/NI PRSNT_R# 0Ω PD WAKE# PWR_GOOD 1K PU 3.3V PWR_EN 27MHZ_REF LVDS_U_HPD JTAG_TESTEN 100K PU PWR_LEVEL 3.3V 100K PU PEX_STD_SW# TH_OVERT# 3.3V 100K PU VGA_DISABLE# TH_ALERT# 3.3V PNL_PWR_EN...
- Page 20 Leading EDGE COMPUTING Primary Side (underside) Secondary Side (top side) Signal PU/PD/NI Pin Signal PU/PD/NI PEX_RX15 PEX_TX14# PEX_RX14# PEX_TX14 PEX_RX14 PEX_TX13# PEX_RX13# PEX_TX13 PEX_RX13 PEX_TX12# PEX_RX12# PEX_TX12 PEX_RX12 PEX_TX11# PEX_RX11# PEX_TX11 PEX_RX11 PEX_TX10# PEX_RX10# PEX_TX10 PEX_RX10 PEX_TX9# PEX_RX9# PEX_TX9 PEX_RX9 PEX_TX8# PEX_RX8# PEX_TX8...
- Page 21 MXM-P1000 Primary Side (underside) Secondary Side (top side) Signal PU/PD/NI Pin Signal PU/PD/NI PEX_RX5 PEX_TX4# PEX_RX4# PEX_TX4 PEX_RX4 PEX_TX3# PEX_RX3# PEX_TX3 PEX_RX3 PEX_RX2# PEX_TX2# PEX_RX2 PEX_TX2 PEX_RX1# PEX_TX1# PEX_RX1 PEX_TX1 PEX_RX0# PEX_TX0# PEX_RX0 PEX_TX0 PEX_REFCLK# PEX_CLK_REQ# PEX_REFCLK PEX_RST# VGA_DDC_DAT JTAG_TDO...
- Page 22 Leading EDGE COMPUTING Primary Side (underside) Secondary Side (top side) Signal PU/PD/NI Pin Signal PU/PD/NI LVDS_UCLK VGA_BLUE LVDS_UTX3# LVDS_LCLK# LVDS_UTX3 LVDS_LCLK LVDS_UTX2# LVDS_LTX3# LVDS_UTX2 LVDS_LTX3 LVDS_UTX1# LVDS_LTX2# LVDS_UTX1 LVDS_LTX2 LVDS_UTX0# LVDS_LTX1# LVDS_UTX0 LVDS_LTX1 DP_C_L0# LVDS_LTX0# DP_C_L0 LVDS_LTX0 DP_C_L1# DP_D_L0# DP_C_L1 DP_D_L0 DP_C_L2# DP_D_L1#...
-
Page 23: Thermal Policy
MXM-P1000 Primary Side (underside) Secondary Side (top side) Signal PU/PD/NI Pin Signal PU/PD/NI RSVD DP_D_AUX RSVD DP_C_HPD RSVD DP_D_HPD RSVD RSVD RSVD RSVD RSVD RSVD DP_B_L0# RSVD DP_B_L0 RSVD DP_B_L1# DP_A_L0# DP_B_L1 DP_A_L0 DP_B_L2# DP_A_L1# DP_B_L2 DP_A_L1 DP_B_L3# DP_A_L2# DP_B_L3... -
Page 24: Unpacking Checklist
Retain the shipping carton and packing materials for inspection. Obtain authorization from your dealer before returning any product to ADLINK. Ensure that the fol- lowing items are included in the package. MXM-P1000 unit Introduction... -
Page 25: System Requirements
MXM-P1000 System Requirements 2.1 Power Sequencing For initial power on, or to Resume from S3 and S4, this sequence must be followed. PV-PE PE-PG PV-PE PE-PG Figure 2-1: Power Sequencing 2.2 Module Power Up and Down Issuing the PWR_EN signal powers the MXM module down, and the system designer can decide whether to keep the module input power when the MXM module is powered down. -
Page 26: Reset Requirements
PEX_RST# Figure 2-3: Reset Sequencing 2.4 Dual Mode DisplayPort Implementation The MXM-P1000 supports four dual mode DisplayPorts by default. HDMI is supported via dongle (see “Display Support and Options” on page 3.). The system requires a switch circuit to determine... -
Page 27: Dvi/Hdmi On Displayport Interface
MXM-P1000 and AC coupling capacitors should be placed on the system board. 3.3V AUX_P/DDC_CLK AUX_N/DDC_DAT CONFIG1 (CABLE ADAPTOR DETECT) Hot Plug Detect DP_x_Lx_P DP_x_Lx_N Figure 2-4: Dual Mode DisplayPort Implementation 2.5 DVI/HDMI on DisplayPort Interface DVI and HDMI connectors can both be implemented through the DisplayPort interface. -
Page 28: Driver Installation
Leading EDGE COMPUTING 3.3V 3.3V Hot Plug Detect AUX_P/DDC_CLK Level Shifter AUX_N/DDC_DAT DP_x_Lx_P DP_x_Lx_N PWR_EN Figure 2-5: DVI/HDMI on DisplayPort Interface 2.6 Driver Installation Drivers can be downloaded from https://www.nvidia.com.tw/ Download/index.aspx?lang=tw 2.7 Certifications & Agencies Windows Hardware Quality Lab (WHQL) certified Windows ... - Page 29 MXM-P1000 Important Safety Instructions For user safety, please read and follow all instructions, Warnings, Cautions, and Notes marked in this manual and on the associated device before handling/operating the device, to avoid injury or damage. S'il vous plaît prêter attention stricte à tous les avertissements et mises en garde figurant sur l'appareil , pour éviter des blessures...
- Page 30 Leading EDGE COMPUTING Never attempt to repair the device, which should only be serviced by qualified technical personnel using suitable tools A Lithium-type battery may be provided for uninterrupted backup or emergency power. Risk of explosion if battery is replaced with one of an incorrect type;...
- Page 31 MXM-P1000 BURN HAZARD Touching this surface could result in bodily injury. To reduce risk, allow the surface to cool before touching. RISQUE DE BRÛLURES Ne touchez pas cette surface, cela pourrait entraîner des blessures. Pour éviter tout danger, laissez la surface refroidir avant de la toucher.
- Page 32 Leading EDGE COMPUTING This page intentionally left blank. Important Safety Instructions...
- Page 33 San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. 300 Fang Chun Rd., Zhangjiang Hi-Tech Park Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com...
