SC10 Interface

4.3.1.

SH05 and SH1 Interface

The interface to the SH05 and SH1 shutters is via a 6-pin HIROSE female
connector. The pin descriptions are as follows:
Pin
1
2
3
4
5
6
4.3.2.

Operating from a Computer

The SC10 Shutter Controller can be fully controlled from a remote computer via
an RS232 interface. A connection from the computer to the SC10 is made with a
standard DB9 cable that comes supplied with the unit. The SC10 can be
controlled by either using the SC10 application software provided with the unit or
directly using a command line interface and any terminal communications
software such as HyperTerminal. The controller can be configured and operated
using National Instruments' LabView® or Lab Windows® using the supplied
drivers.
8654-D02
Opto - Anode (12 V limited to 20 mA)
Shutter Coil - 24 V pulse - 10 V steady state (0.4 A max)
Shutter Coil - GND (ON) - Open Ckt (OFF)
2

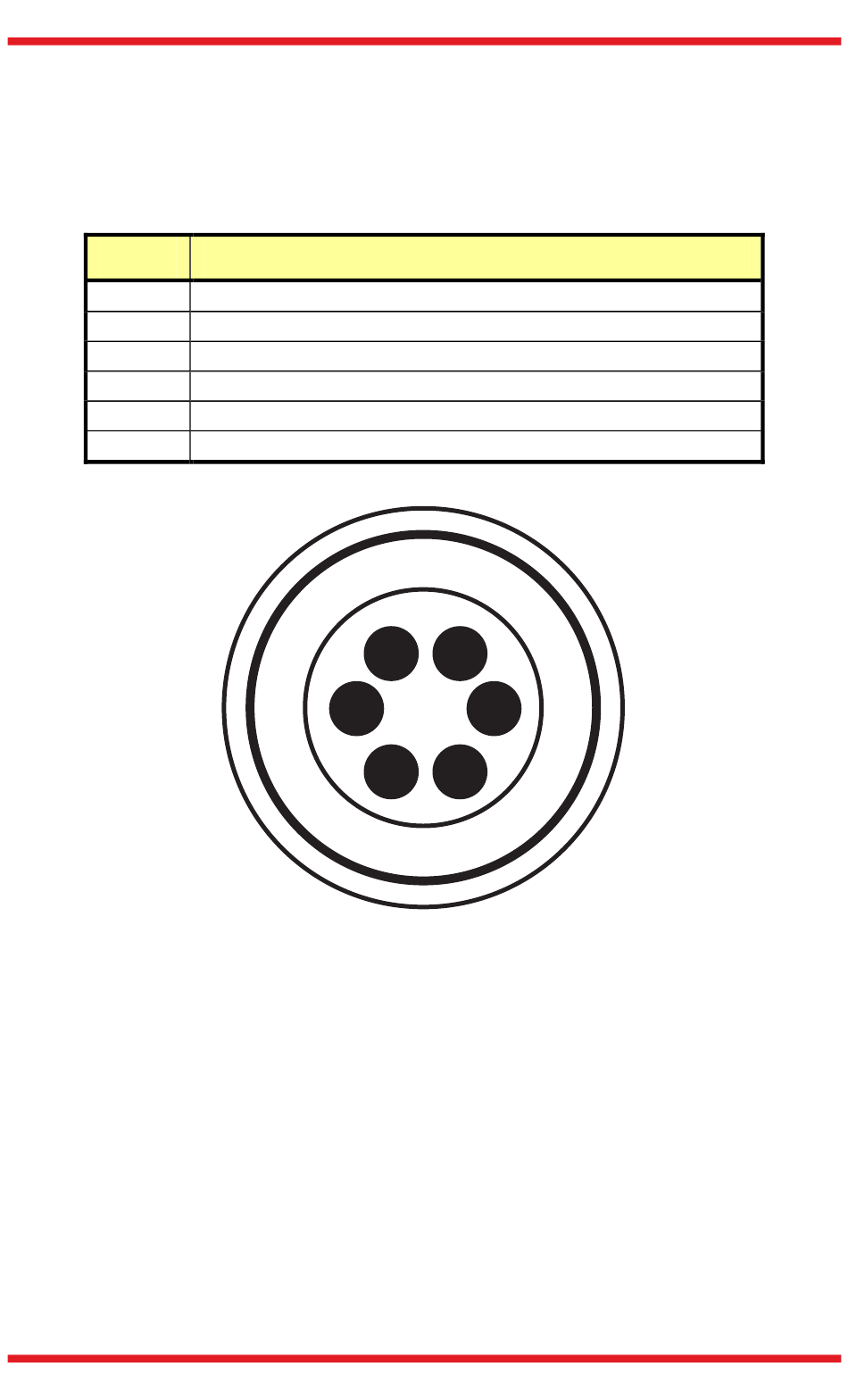

Figure 4 SH05 and SH1 Connector Rear Panel
Description
Opto - Cathode -GND
Opto - Emitter- GND
Opto - Collector (2.5 V)
6
1
5
3 4
