THORLABS SC10 User Manual page 13

SC10 Shutter Controller Chapter 4: Setup and Operation

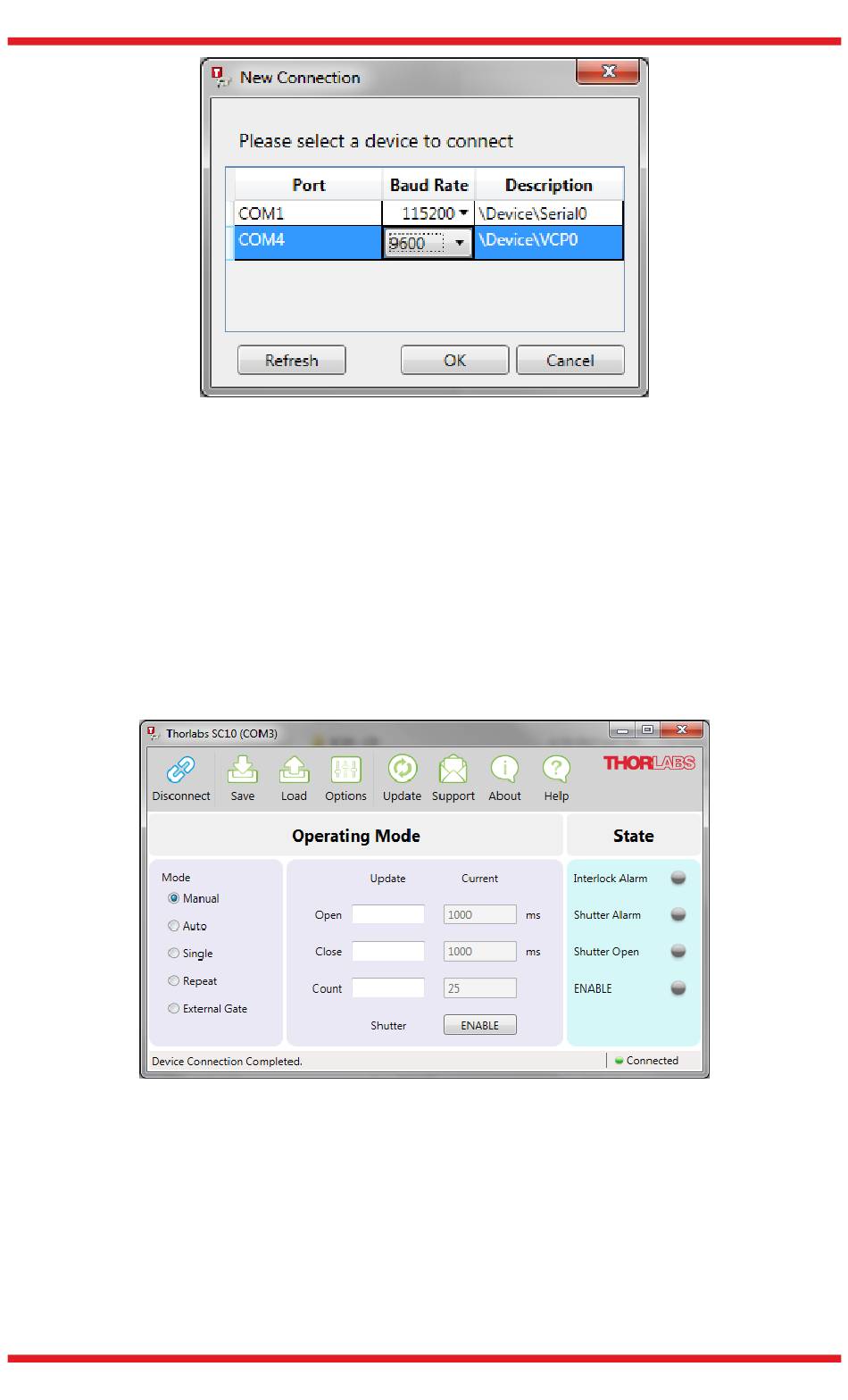

Figure 6 Establishing a Connection with the PC
The unit is now ready to operate either from the application software or from the
front panel controls on the unit. The "Save" icon will save the selected options for
future sessions.
The shutter timing can be changed in any of the following ways: Using the
increment and decrement arrows or by entering a time in seconds in the boxes
under the UPDATE column heading. When entering a value, the user needs to
hit the enter key to update the SC10 with the new value. The grey boxes under
the CURRENT column heading and to the right of the UPDATE column display
the active values.
Figure 7 Changing Shutter Timing
The MODE is changed in the left hand "Mode" pane and TRIGGER can be
changed in the Options. The ENABLE button acts identically to the one on the
front panel.
The application window also contains active displays to indicate the status of the
shutter in the far right "State" pane.
8654-D02 Page 11
