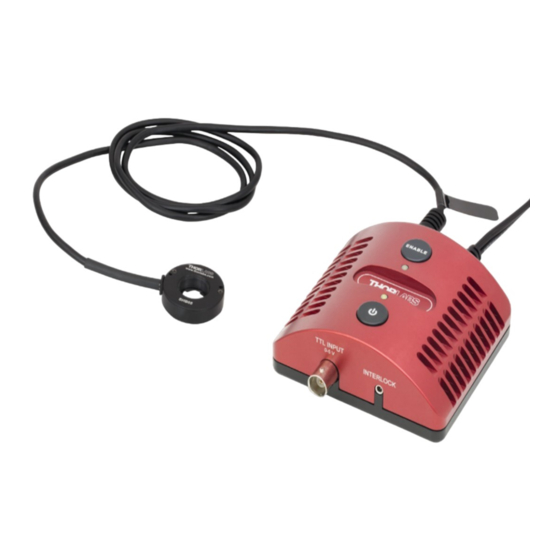

0.5" high speed shutters and controller

Advertisement

Quick Links

SHB05 and SHB05T
0.5" High Speed Shutters
and Controller
User Guide
Original instructions in accordance with EC-Machinery Directive 2006/42/EC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHB05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for THORLABS SHB05

  • Page 1 SHB05 and SHB05T 0.5" High Speed Shutters and Controller User Guide Original instructions in accordance with EC-Machinery Directive 2006/42/EC...
  • Page 2: Table Of Contents

    Chapter 9 Mechanical Drawing ............19     Chapter 10 Declaration of Conformity ..........20     Chapter 11 Regulatory ............... 21     Chapter 12 Thorlabs Worldwide Contacts........22     Original instructions in accordance with EC-Machinery Directive 2006/42/EC...
  • Page 3: Chapter 1 Warning Symbol Definitions

    Ø1/2" Shutters and Controller Chapter 1: Warning Symbol Definitions Chapter 1 Warning Symbol Definitions Below is a list of warning symbols you may encounter in this manual or on your device. Symbol Description Direct Current Alternating Current Both Direct and Alternating Current Earth Ground Terminal Protective Conductor Terminal Frame or Chassis Terminal...
  • Page 4: Chapter 2 Safety

    For safety, allow approximately 5 minutes of cool down after operation before handling. CAUTION DO NOT OPEN HOUSING! The SHB05(T) shutters and controller have no user- serviceable parts. Do not operate without cover installed. WARNING Do not operate in wet or damp conditions.
  • Page 5: Chapter 3 Description

    In the event of a failure such as a blade jam, the SHB05(T) will shut down. This changes the state of the interlock and LED light will turn red. The SHB05(T) can detect when the blades are not operating at the set frequency and will shut down to prevent damage to the SHB05(T).
  • Page 6: Overview

    Ø1/2" Shutters and Controller Chapter 3: Description 3.1. Overview Enable Button Power LED Status LED Power Button External Interlock Jack Modulation Input Figure 1 Controller Front View Shutter Head DC Input Jack Jack Figure 2 Controller Rear View Page 6 TTN020243-D02...
  • Page 7 Ø1/2" Shutters and Controller Chapter 3: Description Ø0.07" Mounting Ø0.5" 5-Bladed Through Holes, 3 Places Aperture SM05 Thread (0.535"-40) SHB05 Shutter Head, Front SHB05 Shutter Head, Rear Ø0.07" Mounting Ø0.5" 5-Bladed Through Holes, 3 Places Aperture SM05 Thread (0.535"-40) SHB05T Shutter Head, Front...
  • Page 8: Chapter 4 Setup And Operation

    Connect the AC power cord to the power supply and then connect to the AC power outlet. The SHB05 and SHB05T are each supplied with an external AC-DC switching power supply rated at 100 – 240 VAC, 47 –...
  • Page 9: External Modulation Modes

    Manual Mode without opening the shutter and the Status LED will flash four times. The SHB05(T) is set to the last mode it was in when it is powered on. Pressing the ENABLE button puts it in Manual Mode if it was in Protected or Unprotected External Modulation Mode.
  • Page 10: Protected Mode

    4.3.1. Protected Mode When the SHB05(T) operates in Protected Mode, the device will shut down if run for too long over 15 Hz. This is in order to protect the device from overheating. The unit does not monitor the temperature directly, but the time limit is based on calculations assuming no heat control at room temperature.
  • Page 11: Default To On

    4.4. Default to On The default to on setting allows the SHB05(T) to automatically power ON when DC is applied; for users that require auto power ON when DC is applied without pressing the POWER button. To enter or exit this setting, follow the steps below: Connect the DC power supply.
  • Page 12: Indicators

    Ø1/2" Shutters and Controller Chapter 4: Setup and Operation 4.6. Indicators 4.6.1. Power LED The Power LED will be lit green when the power is on and dark when the power is off. 4.6.2. Status LED The table below outlines the color of the Status LED and the meaning depending on the mode.
  • Page 13: Timing Performance

    Chapter 4: Setup and Operation 4.7. Timing Performance External Modulation Input Pulse Open Shutter Response Close Figure 5 SHB05(T) Timing Driven by SHB05(T) Shutter Controller Time Time (ms, Typ) (ms, Max) Definitions Delay from input pulse rising edge to initiation I  A of shutter opening.
  • Page 14: Typical Performance

    Ø1/2" Shutters and Controller Chapter 4: Setup and Operation 4.8. Typical Performance The time it takes to open the shutter or close the shutter (IA and DE as shown in Figure 5) are constant characteristics of the device. The time delay for both opening and closing is a result of the time it takes to energize the coils.
  • Page 15: Chapter 5 Specifications

    Mechanical Specifications Aperture Diameter 0.508" (12.9 mm) Boxed Weight 3 lbs (1.4 kgs) Number of Blades SHB05: Polished Stainless Steel Blade Finish SHB05T: PTFE Coated Electrical Specifications (Power Supply) AC Line Voltage, Frequency 100 – 240, 47 – 63 Hz AC Current 0.4 A...
  • Page 16: Chapter 6 Interface Connector

    Ø1/2" Shutters and Controller Chapter 6: Interface Connector Chapter 6 Interface Connector The interface connector on the SHB05(T) controller is a 4-pin mini-DIN shielded female connector that accepts the 4 pin mini-DIN male connector. The pin descriptions are as follows: Description...
  • Page 17: Chapter 7 Cleaning And Maintenance

    Chapter 7 Cleaning and Maintenance The SHB05(T) shutter and controller can be cleaned using a soft cloth. If needed, the cloth can be dampened with some isopropyl alcohol. Avoid using any solvents on or near the unit as well as water as this may cause the blades to rust.
  • Page 18: Chapter 8 Troubleshooting

    Check DC plug is fully inserted into the controller's DC jack labeled 5 VDC 2.4 A. Check the SHB05(T) shutter cable 4 pin Mini-Din plug Shutter does not open or has arrow facing up and is fully inserted into the close.
  • Page 19: Chapter 9 Mechanical Drawing

    Ø1/2" Shutters and Controller Chapter 9: Mechanical Drawing Chapter 9 Mechanical Drawing 0.29" (7.3 mm) 145.0° Cable Length: 35" 0.44" 0.48" (11.3 mm) (12.1 mm) 2X Ø0.07" (1.7 mm) 0.10" 11.5° (2.5 mm) 10.0° 0.19" (4.9 mm) Ø0.508" SM05 Internal Threads (12.9 mm) (0.535"-40) Ø1.10"...
  • Page 20: Chapter 10 Declaration Of Conformity

    Ø1/2" Shutters and Controller Chapter 10: Declaration of Conformity Chapter 10 Declaration of Conformity Page 20 TTN020243-D02...
  • Page 21: Chapter 11 Regulatory

    Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
  • Page 22: Chapter 12 Thorlabs Worldwide Contacts

    Ø1/2" Shutters and Controller Chapter 12: Thorlabs Worldwide Contacts Chapter 12 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to-date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc.
  • Page 23 www.thorlabs.com...
