JETStream PI-123 Product Instructions page 27

SERIES FP
• For use with flex or rigid lances that have male pipe threads
(NPT Male)
• Recessed orifices for protection from surface abrasion or damage
by wrenches
• Double-tapered nose for fast, unrestricted travel through plugged
tubes
• Machined from heat-treated stainless steel
• Maximum working pressure:
15,000 psi (1000 bar)
• Five sizes, seven standard patterns,
and fourteen flow ratings
(see the following page)
• Custom patterns available

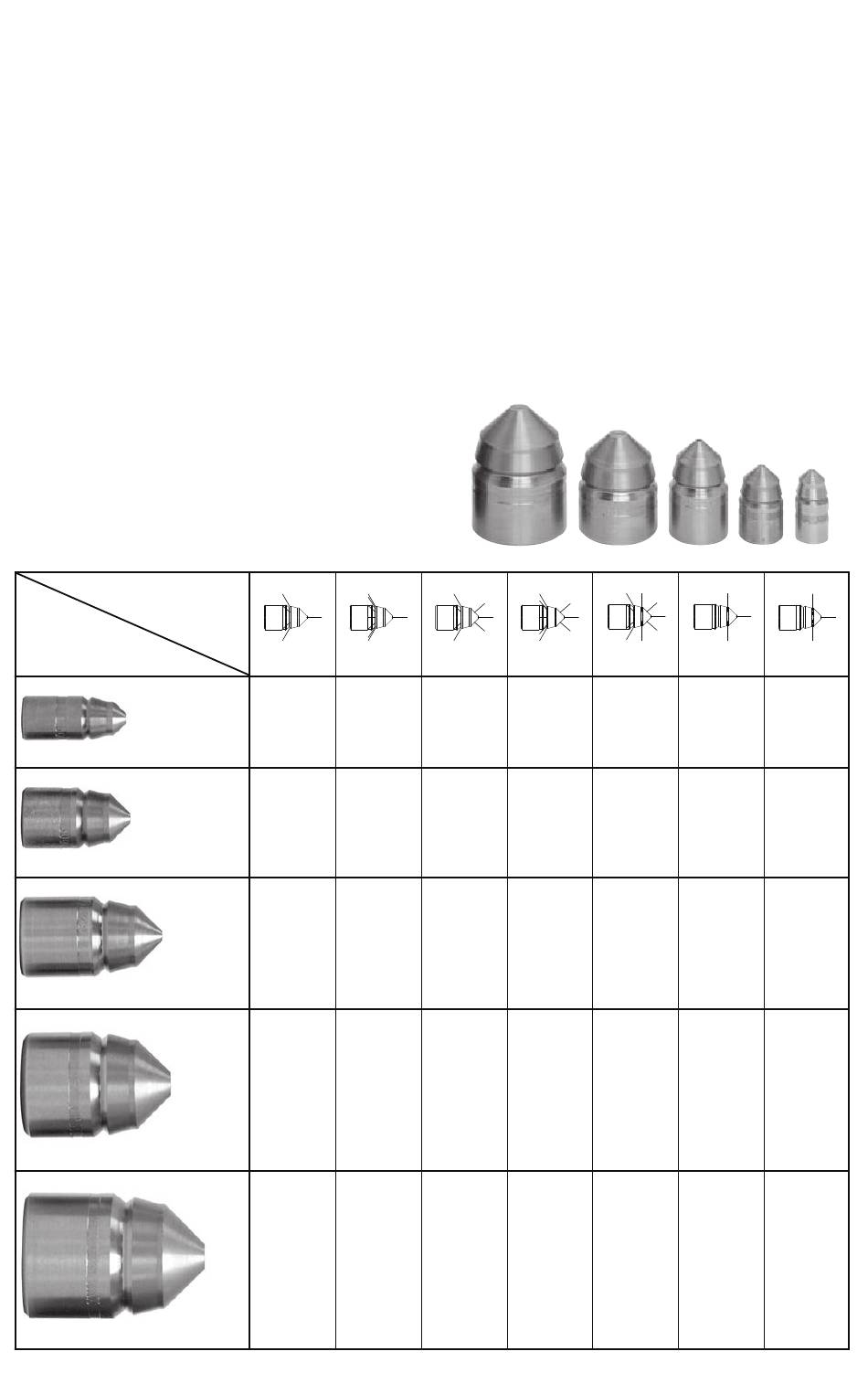

PATTERNS
SIZES
Shown Actual Size
FP1 — 1/16" NPT Fml*
Diameter Length
.375" (9.5 mm) .85" (21.6 mm)
FP3 — 1/8" NPT Fml*
Diameter Length
.500" (12.7 mm) .88" (22.4 mm)
FP4 — 1/4" NPT Fml*
Diameter Length
1.16" (29.5 mm)
.665" (16.9 mm)
FP5 — 3/8" NPT Fml*
Diameter Length
.875" (22.2 mm) 1.20" (30.5 mm)
FP6 — 1/2" NPT Fml*
Diameter Length
1.040" (26.4 mm) 1.47" (37.3 mm)
May 2017
1 2
For FLEX or For FLEX or
RIGID Lance RIGID Lance
1 Front 1 Front
6 Back 30° 12 Back 30°
7 Jets Total 13 Jets Total
Min Flow #2 Min Flow #5
1 Front 1 Front
6 Back 30° 12 Back 30°
7 Jets Total 13 Jets Total
Min Flow #2 Min Flow #5
1 Front 1 Front
8 Back 30° 16 Back 30°
9 Jets Total 17 Jets Total
Min Flow #4 Min Flow #6
1 Front 1 Front
8 Back 30° 16 Back 30°
9 Jets Total 17 Jets Total
Min Flow #4 Min Flow #6
1 Front 1 Front
8 Back 30° 16 Back 30°
9 Jets Total 17 Jets Total
Min Flow #4 Min Flow #6
PI-123
3 4
For FLEX or For FLEX or
RIGID Lance RIGID Lance
1 Front 1 Front
3 Forward 45° 3 Forward 45°
6 Back 30° 8 Back 30°
10 Jets Total 12 Jets Total
Min Flow #4 Min Flow #5
1 Front 1 Front
3 Forward 45° 3 Forward 45°
6 Back 30° 8 Back 30°
10 Jets Total 12 Jets Total
Min Flow #4 Min Flow #5
1 Front 1 Front
3 Forward 45° 3 Forward 45°
8 Back 30° 12 Back 30°
12 Jets Total 16 Jets Total
Min Flow #5 Min Flow #6
1 Front 1 Front
3 Forward 45° 3 Forward 45°
8 Back 30° 12 Back 30°
12 Jets Total 16 Jets Total
Min Flow #5
Min Flow #6
1 Front 1 Front
3 Forward 45° 3 Forward 45°
8 Back 30° 12 Back 30°
12 Jets Total 16 Jets Total
Min Flow #5 Min Flow #6
5 6
For FLEX or For RIGID
RIGID Lance Lance ONLY
1 Front 1 Front
3 Forward 45° 6 Radial
6 Radial
7 Jets Total
6 Back 30°
16 Jets Total
Min Flow #6 Min Flow #2
1 Front 1 Front
3 Forward 45° 6 Radial
6 Radial
7 Jets Total
6 Back 30°
16 Jets Total
Min Flow #6 Min Flow #2
1 Front 1 Front
3 Forward 45° 8 Radial
8 Radial
9 Jets Total
8 Back 30°
20 Jets Total
Min Flow #7 Min Flow #4
1 Front 1 Front
3 Forward 45° 8 Radial
8 Radial
9 Jets Total
8 Back 30°
20 Jets Total
Min Flow #7
Min Flow #4
1 Front 1 Front
3 Forward 45° 8 Radial
8 Radial
9 Jets Total
8 Back 30°
20 Jets Total
Min Flow #7
Min Flow #4
7
For RIGID
Lance ONLY
1 Front
12 Radial
13 Jets Total
Min Flow #5
1 Front
12 Radial
13 Jets Total
Min Flow #5
1 Front
16 Radial
17 Jets Total
Min Flow #6
1 Front
16 Radial
17 Jets Total
Min Flow #6
1 Front
16 Radial
17 Jets Total
Min Flow #6
27
