UG1022

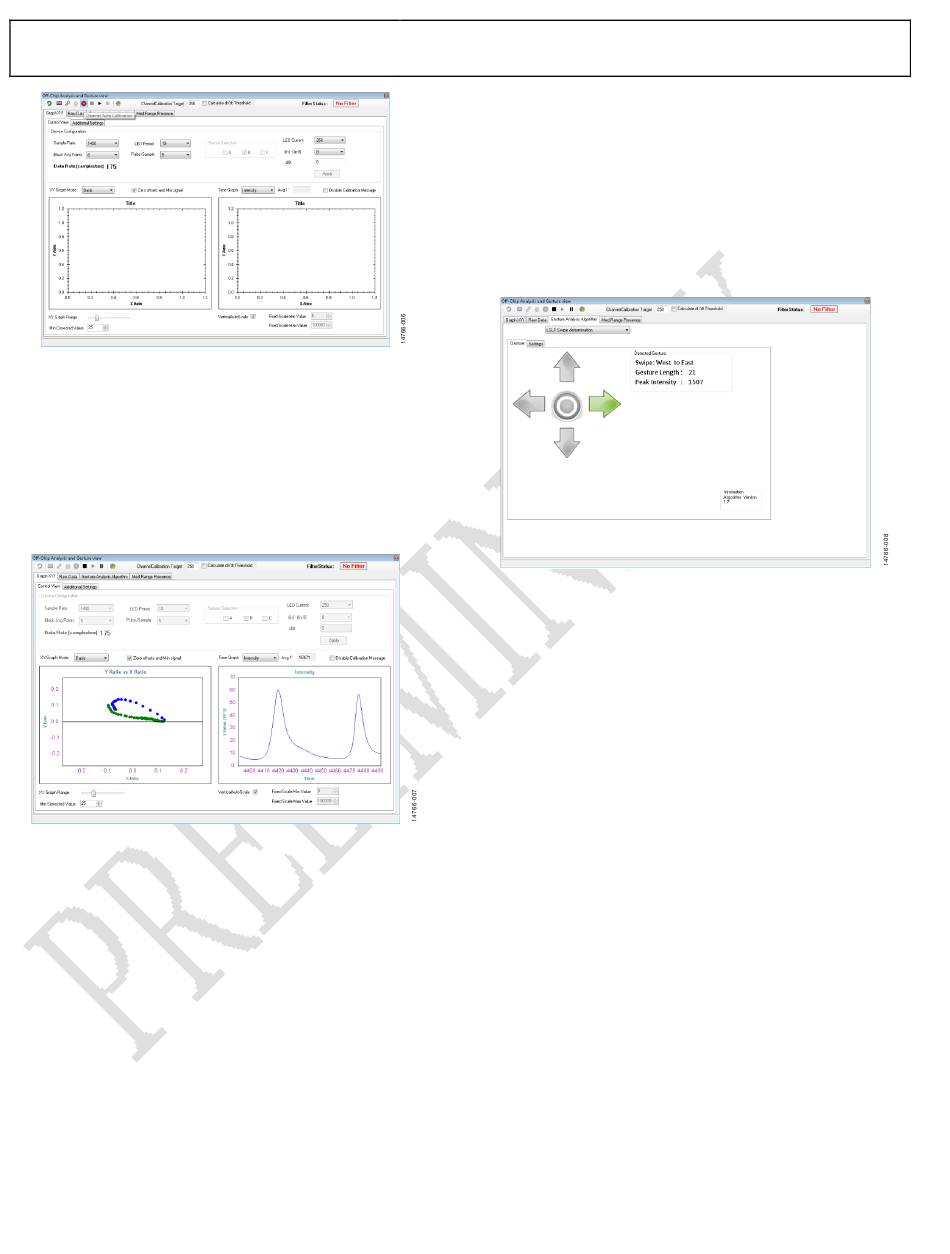

Figure 6. Running the Channel Auto Calibration

STREAMING DATA

Press the Play button to begin streaming data from the evaluation

board. Move an object or hand within 15 cm above the

ADUX1020

to see the corresponding output of the device on the

graphs. The Y Ratio vs X Ratio graph shows the calculated x, y

position of the object above the device (see Figure 7). The Intensity

graph shows the average intensity of reflected light seen by the

device, represented in ADC codes.

Figure 7. Graph of Streaming Data

ADUX1020-EVAL-SDP User Guide

To view the gesture recognition capability, navigate to the Gesture

Analysis Algorithm tab and select LSLF Swipe determination

from the drop-down menu. Click the Play button if the device

is not already streaming data.

Move a hand within 15 cm above the device and swipe in any of

the four indicated directions. Alternatively, the center indicator

can be activated by quickly lowering a hand towards the sensor

(see Figure 8).

Figure 8. Gesture Recognition Algorithm Tab

For more detailed information

and additional features of the software, see the Optical Gesture

Evaluation Tool User Manual, which can be found in the Help

> Help Topics menu.

Rev. A | Page 4 of 8
