ADuC8xx Evaluation Kit Getting Started User Guide

INTRODUCTION

This user guide functions as a tutorial to introduce the various
tools that are part of the MicroConverter® QuickStart™ develop-
ment system. Because these tools are ADuC8xx generic, this
user guide applies to all ADuC8xx parts.
The ADuC8xx parts and the evaluation boards referenced in
this tutorial guide are shown in Table 1. The tools described in
this user guide are listed in Table 2.
Table 2. Software Tools
Tool
Metalink 8051 Cross
Assembler
Windows Serial Downloader
(WSD)
Integrated Development
Environment (IDE) Assembly
Source
Windows Analog Software
Program (WASP)
USB-EA Emulation
Please see the last page for an important warning and disclaimers.
This datasheet has been downloaded from
Executable Function
Asm51.exe This assembler takes an assembly language source file created with a text editor and saved with a
.asm extension, and translates it into two files: a listing file output (.lst) and a machine language
object file in standard Intel HEX format (.hex).
WSD.exe The WDS is a Windows® software program developed by Analog Devices, Inc., that allows one to
serially download standard Intel HEX files created by the ASM51 assembler to the MicroConverter
while in circuit.
Available Keil and IAR provide a complete IDE integrating all tools necessary to edit, assemble, simulate, and
online debug assembly source code via the serial port. Download the latest 8051 tools from the official
Keil-An ARM Company or IAR Systems Software, Inc. company website(s).
WASP.exe WASP is an analysis tool allowing easy measurement of the analog noise performance of the
MicroConverter.
None This emulation is used for nonintrusive debugging using Keil or IAR development tools. It is also
used for serial downloading via the EA pin and the WSD software.

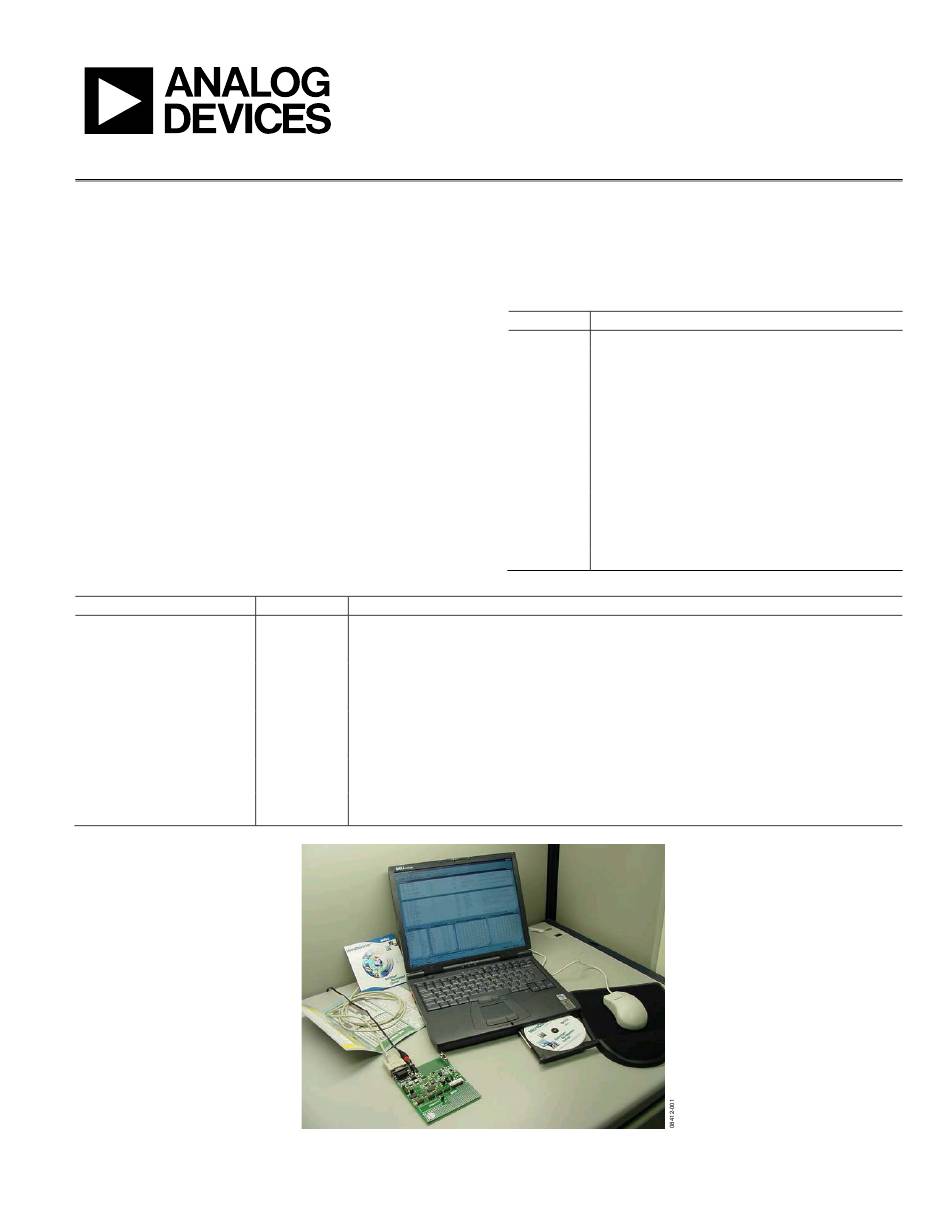

Figure 1. The ADuC8xx QuickStart Development System
Rev. A | Page 1 of 16
Evaluation Kit User Guide
Table 1. ADuCxx Parts and Evaluation Boards
Part Evaluation Board
ADuC812 MicroConverter SAR Evaluation Board, Rev. A3
ADuC814 EVAL-AD C814QS SAR Evaluation Board, Rev. B1
U
ADuC831 MicroConverter SAR Evaluation Board, Rev. A3
ADuC832 MicroConverter SAR Evaluation Board, Rev. A3
ADuC841 MicroConverter SAR Evaluation Board, Rev. A3
ADuC842/ MicroConverter SAR Evaluation Board, Rev. A3
ADuC843
ADuC816 MicroConverter Σ-Δ Evaluation Board, Rev. B
MicroConverter Σ-Δ Evaluation Board, Rev. B
ADuC824
MicroConverter Σ-Δ Evaluation Board, Rev. B
ADuC834
MicroConverter Σ-Δ Evaluation Board, Rev. B
ADuC836
MicroConverter Σ-Δ Evaluation Board, Rev. 0
ADuC845
MicroConverter Σ-Δ Evaluation Board, Rev. 0
ADuC847
