VBC400-600 Manual
MManualManual
Installation and user
manual for the
VBC400-600

Advertisement

loading
Need help?

Need help?

Do you have a question about the VBC400-600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vista VBC400-600

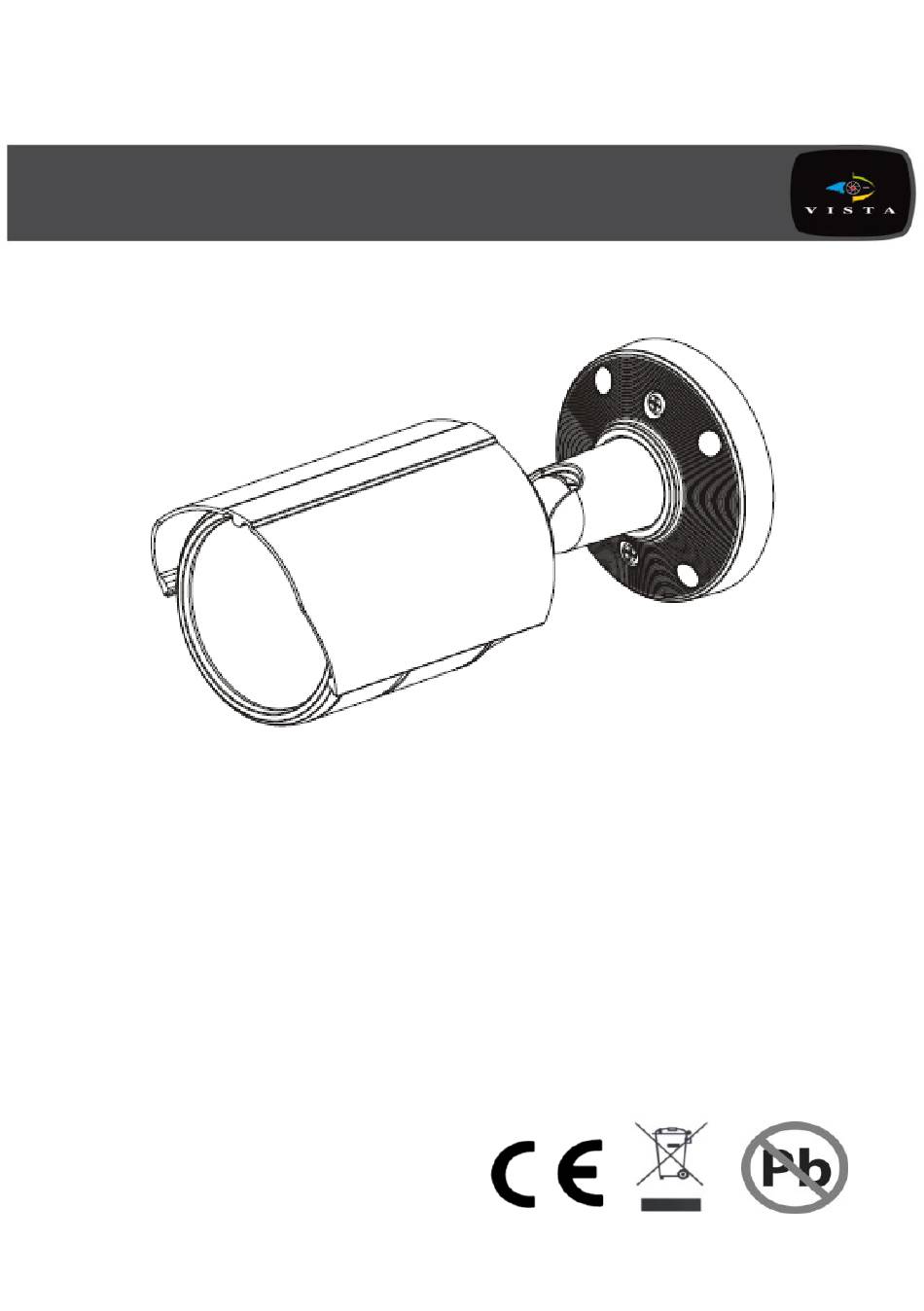

  • Page 1 VBC400-600 Manual MManualManual Installation and user manual for the VBC400-600...
  • Page 2 Before You Begin Read these instructions before installing or operating this product. Note: This installation should be made by a qualified service person and should conform to local codes. This manual provides installation and operation information. To use this document, you must have the following minimum qualifications: ...
  • Page 3 RoHS Announcement All lead-free products offered by the company comply with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly “lead-free” and without the hazardous substances cited in the directive. The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product end-of-life.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS 1. READ AND RETAIN INSTRUCTIONS Read the instruction manual before operating the equipment. Retain the manual for future reference. 2. CLEANING Turn the unit off and unplug from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use harsh cleansers or aerosol cleaners. 3.
  • Page 5 11. OVERLOADING Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 12. SERVICING Do not attempt to service the video monitor or equipment yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
  • Page 6: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION --------------------------------------------------------------------------------------- 7 CONTENTS OF PACKAGE ------------------------------------------------------------------------- 7 CAMERA DIMENSIONS/OVERVIEW------------------------------------------------------------- 8 FIXING & BRACKET ADJUSTMENT ------------------------------------------------------------- 8 LENS ADUSTMENT ----------------------------------------------------------------------------------- 9 SPECIFICATION --------------------------------------------------------------------------------------- 10...
  • Page 7: Introduction

    INTRODUCTION Features: ● 600TVL colour and monochrome resolutions ● f2.8~12mm F1.2 varifocal Lens ● 0.1 Lux (Colour), 0 Lux (BW at IR ON) @ F1.2 Sensitivity ● Auto electronic shutter [1/60(1/50) ~ 1/100,000] ● 2D-DNR (Digital Noise Reduction) ● Auto white balance mode ●...
  • Page 8: Camera Dimensions/Overview

    CAMERA DIMENSIONS / OVERVIEW FIXING & BRACKET ADJUSTMENT To adjust the direction of the camera once mounted simply slacken the 2no Camera Fix screws and align the bullet camera to get the location you require, note that on tightening these screws this will lock the camera bracket knuckle joint in place.
  • Page 9: Lens Adustment

    LENS ADJUSTMENT To adjust lens, unscrew front of bullet camera and adjust lens until satisfactory field of view and focus is achieved. Tighten locking screws and then replace front of bullet camera (please ensure that this is on fully and correctly as this is a primary seal to prevent moisture ingress.
  • Page 10: Specification

    SPECIFICATION VBC401-600 MODEL 600TVL (colour and monochrome) Resolution resolution Ⅱ CCD 1/3" SONY Super HAD Image sensor Number of pixels 752(H) x 582(V) Scanning system 2:1 Interlace Scanning PAL 15.625KHz(H) x 50Hz(V) frequency Sync. System Internal Video output 1.0 Vp-p (75 ohm, composite) Electronic shutter 1/50~1/100,000 sec S/N ratio...
  • Page 11 MEMO...
  • Page 12 Manual version: V1 (subject to change without notice)

This manual is also suitable for:

Vbc401-600
