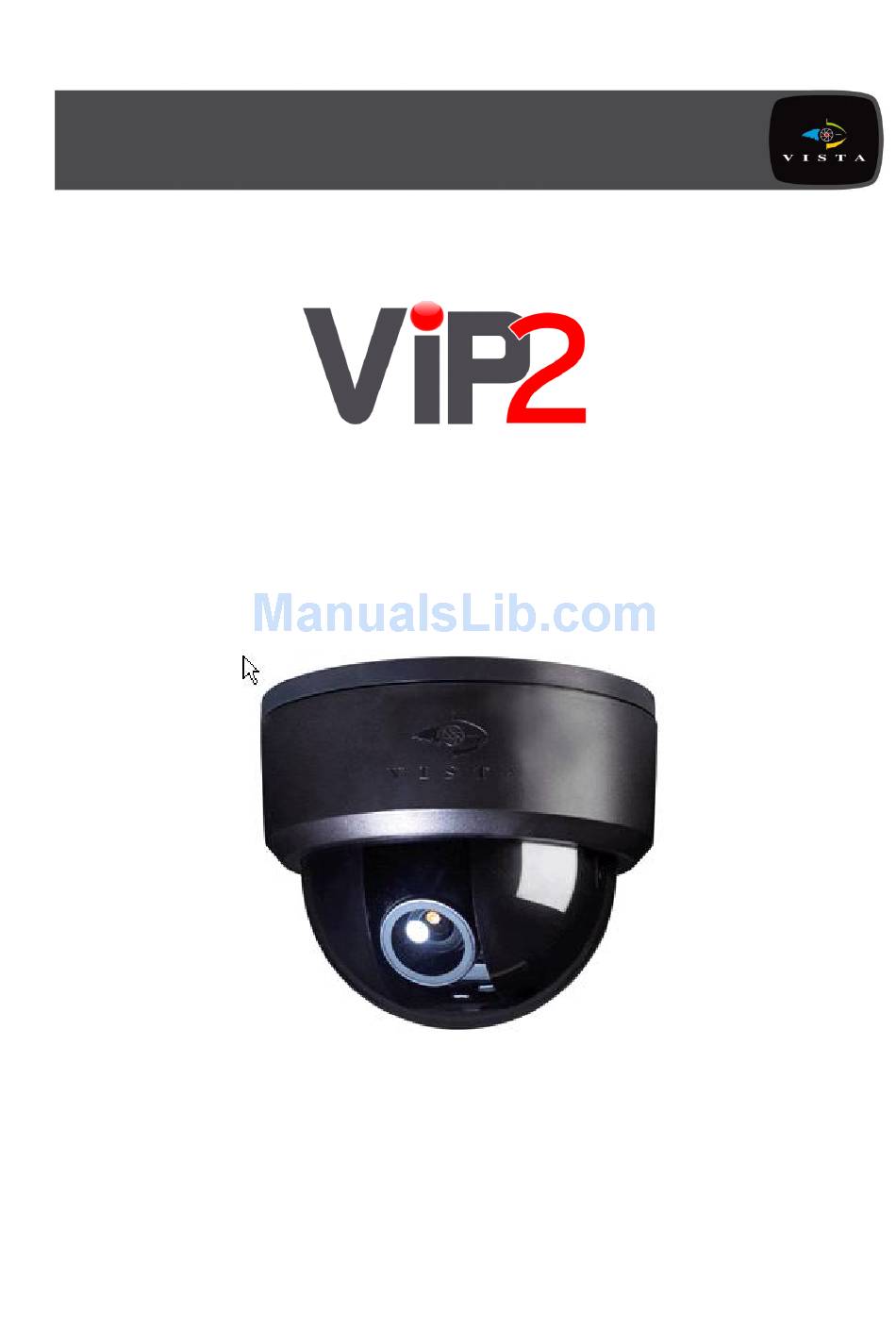

  • Page 1 VK2-1080VFD Installation Guide...

  • Page 3: Explanation Of Graphical Symbols

    WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated "dangerous voltage"...

  • Page 4: Ce Compliance Statement

    CAUTION CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. CE COMPLIANCE STATEMENT WARNING: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

  • Page 5: Table Of Contents

    Contents 1. Description ....................6 2. Installation ....................8 2.1 Base installation ....................... 8 2.2 Connection ....................... 9 2.2 Network Connection and IP assignment ..............10 3. Operation ....................11 3.1 Minimum conditions for using web browser ............11 3.2 Accessing the IP camera ..................11 4.0 Main Menu ....................12 4.1 LIVE VIEW ......................

  • Page 6: Description

    1. Description This manual applies to the VK2-1080VFD network camera. The VK2-1080VFD is fully featured for security surveillance and remote monitoring needs. It is based on the DSP compression chip, and makes it available on the network as real-time, full frame rate Motion JPEG and H.264 (or MPEG-4) video streams.
  • Page 7 • Front View Name Description 3-9mm varifocal IR corrected lens Lens IP and Power connection cable Connection Cable • • Side View Bottom View Name Description Micro SD slot for local recording Micro SD Slot Amber : On while System Booting Status LED Green : Normal Operation AI: Alarm Input, G: Ground, AO: Alarm Output...

  • Page 8: Installation

    2. Installation 2.1 Base installation Use the provided template to mark the required mounting and cable holes. To remove dome cover, turn the dome cover counter clockwise until locators reach end of travel and pull off. Push the liner in the direction of the arrow (three ‘OPEN’ marks) and pull it off. Fasten Mounting screws (2X) and align the dome camera as shown above.

  • Page 9: Connection

    2.2 Connection • Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a switch or hub. •...

  • Page 10: Network Connection And Ip Assignment

    2.2 Network Connection and IP assignment When a VK2-1080VFD is first connected to the network it has a default IP address of 192.168.30.220 So, it will probably be necessary to allocate an IP address to the device with the “Smart Manager” utility on the CD.

  • Page 11: Operation

    3.1 Minimum conditions for using web browser The minimum system requirements to use a Web browser with this IP camera are as follows: - CPU: Pentium® 4 microprocessor, 2.0GHz - Operational System: Windows XP® or Windows Vista® or Windows7® - System Memory: RAM 512 Mbyte...

  • Page 12: Main Menu

    4.0 Main Menu [Main Menu] The dialog box will be appears. - Type User ID and Password in the dialog box. The default User ID and Password are admin. NOTE For security purposes, be sure to change the password after you log on for the first time.

  • Page 13: Live View

    4.1 LIVE VIEW ------------------------------------------------------------------------------------------------------------------------- The Live View page provides you to select the properties of video source. You can view the live image from this page and also access the Setup menu and operate the main functions. [ Main Live View Page] Live Video Page Icons Hide Main Icons: Hides main icons in the live view page.

  • Page 14: Upgrading The Firmware

    Help: Shows helpful information. Source: Specify the viewable video stream source to display in live view page. View Size: Specify the viewable video size to display in live view page. Stream Type: Specify the internet protocol to display in live view page. ROI View: Specify the specially selected area to transfer using different stream feature in the primary video image.

  • Page 15: General Troubleshooting

    firmware version in your camera is displayed on the Basic Configuration or About. For the latest firmware of the camera, please contact with your product administrator. Detailed instructions on how to perform the upgrade process are provided with each new release.
  • Page 16 9. Poor image quality. → Increased lighting can often improve image quality. Check that there is sufficient lighting at the monitored location. Check all image and lighting settings. 10. Rolling dark bands or flickering in image. → Try adjusting the Exposure Control setting under AE and AWB part. 11.
