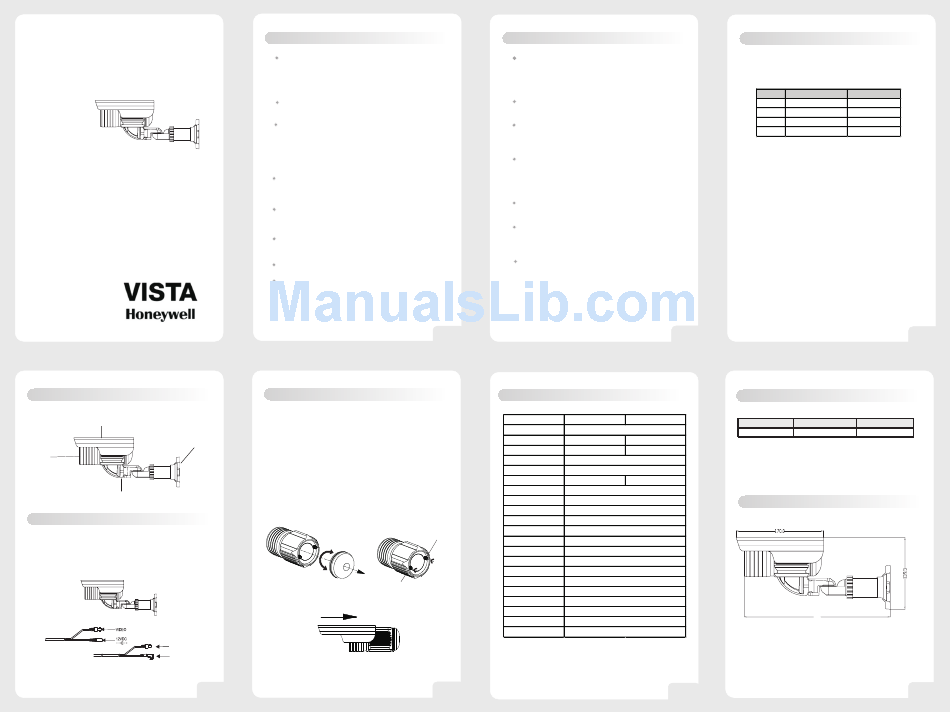

Night Vision Camera
VBC-800PI30-WC
VBC-800NI30-WC
User Guide
4. Parts description
Sunshield
Mounting holes
Camera
Bracket
5. Installation
1.
Fix the mounting bracket to the wall as below
figure.
Connect the camera with DC12V adapter(-+)
2.
and video output connector, power up and a
video picture will be seen at the monitor.
VIDEO
(Optional)
12VDC
NIGHT VISION CAMERA
1. Features
The camera adopt 1/3" SUPER HAD Ⅱ CCD
and advanced Digital Signal Processor (DSP)
technology, Enhances picture quality greatly
to a horizontal resolution of 540TVL, provides
clearer and more vivid image.
Integrates vari-focal lens allows for versatile
utilization.
The camera provides automatic mode change
over by sensing day or night conditions. It can
change color mode in the day condition to
optimal color and B/W mode in night condition
for clear identification.
( Only the IR Cut filter removal Day/Night Camera)
Integrated efficient powerful IR LED array can
capture high-resolution picture even in complete
darkness. Night view distance up to 25~30m.
Light control design. Auto light detection for IR
LED switch control
and constant current; It is
reported on light stability.
Exquisite design for circuit and structure,
incarnates high technology.
Aluminum structure, all-sealed water proof body.
Outdoor sunshield housing available.
NIGHT VISION CAMERA
6. Adjustment
Adjust varifocal lens according to the
application.When adjusting, the lens should
be dismantled carefully by professional installer.
1.
Screw off the camera's back cover .(Figure 1)
2.
Use a right-angled screwdriver to insert the
View Angle or Focus adjustment groove , and
adjust the View Angle or Focus respectively
to get a fine image effect. (Figure 2)
3.
After adjustment finished, gyre the back cover,
and cover the sunshield on the camera.
(Figure 3)
View Angle adjustment
Figure1
Figure3
4
NIGHT VISION CAMERA
2. Caution
Do not disassemble or modify the camera to
avoid possible fire, electric shock or other
hazard Please refer repairs or service to a
qualified service technician.
Take care when installing the camera. Avoid
scratching the front glass window.
Avoid Shock, Vibration. Do not install the
camera on an unstable surface. It can be
damaged by improper use or storage.
Never point the camera towards direct sunlight
or other sources of bright light in order to avoid
a dimmer image due to too much backlighting or
causing smear.
Use the camera within the published
temperature, humidity, and electrical ranges.
Provide ample slack in the video and power
cables once the camera is installed in its final
position.
Request for service by a qualified technician
if the camera malfunctions or generates
excessive amounts of heat.
1
7. Specifications
Model
VBC-800PI30-WC
Image Sensor
1/3'' SUPER HAD II CCD
Signal System
PAL
Effective Pixels
752(H)x582(V)
Resolution
540TV Lines(Color), 600TV Lines(B/W)
Minimum Illumination
0.1Lux/F1.2(IR LED OFF), 0Lux (IR LED On)
Shutter Speed
1/50-1/100,000SEC
S/N Ratio
More Than 50dB
White Balance
Automatic
AGC/BLC
Automatic
Gamma Correction
0.45
Sync Model
INT
Focus adjustment
Lens
Varifocal lens, f=4-9mm
IR LED
Wave Length 850nm, x 36pcs IR LED
IR Beam Distance
25~30m
IR LED Drive
On: 1~3Lux; Off: 5~6Lux
Video output
1.0Vp-p, 75Omh, Sync Negative Polarity
Pow er Input
DC12V Regulated
Figure2
Pow er Consumption
150mA(IR LED OFF)+280mA(IR LED ON)
-10℃ ~ +50℃, RH90% MAX (non-condensing)
Operating Temperature
Body
Aluminum
Weight
1000g
All data and specifications subject to change
without notice.
5
3. Accessories list
Unpack the camera carefully and make sure
that all accessories are included for the
installation.
No.
1
2
3
4
If any parts are missing, please contact your
distributor for assistance.
NIGHT VISION CAMERA
2
8. Type Number Overview
VBC-800NI30-WC
Model
Signal system
NTSC
768(H)x494(V)
1/60-1/100,000SEC
9. Dimensions
6
NIGHT VISION CAMERA
Items
Quantity
Camera
1 PCS
Sunshield
1 PCS
Instruction
1 PCS
Screws
1 Bag
NIGHT VISION CAMERA
3
VBC - 800PI30-WC
VBC - 800NI30-WC
PAL/12VDC
NTSC/12VDC
284
7
NIGHT VISION CAMERA
