E A S Y - F I T S O F T C L O S E
Base Unit

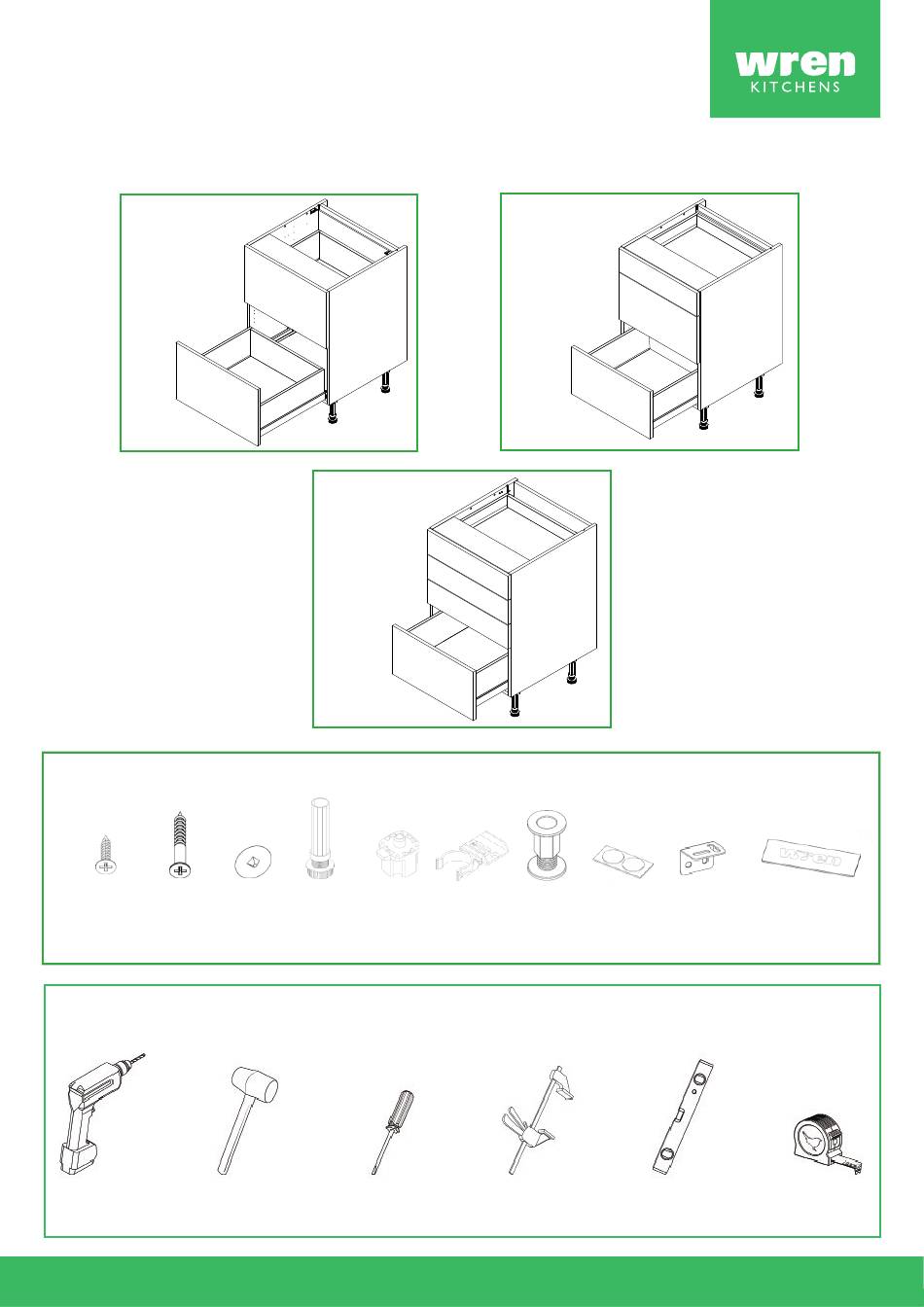

300 - 600, Base (Drawer, Solid Top, 4 Legs) - Fitting Guide
2 drawers

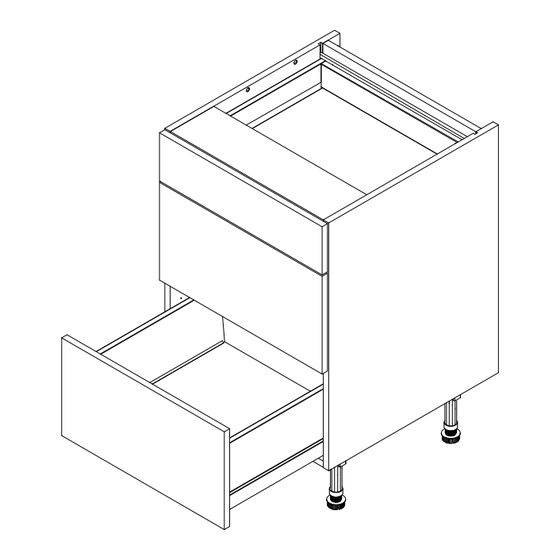

3 drawers
4 drawers
Units Parts
32x 15mm
18x
4x
4x
2x
1x
5x
Drawer Covers
6x 30mm
2x L-Brackets
screws
Cover Caps
Door Buffer
Legs
Leg Brackets
Plinth Clips
Space Plug
Cap
screws
(2 Per Draw)
Tools Required
Tape Measure
Clamp
Screwdriver
Spirit Level
Mallet
Drill
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wren Kitchens 300

  • Page 1 E A S Y - F I T S O F T C L O S E Base Unit 300 - 600, Base (Drawer, Solid Top, 4 Legs) - Fitting Guide 2 drawers 3 drawers 4 drawers Units Parts 32x 15mm...
  • Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damages. Any un-needed cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
  • Page 3 Inserting the legs Push each leg firmly down into the leg bracket. Adjusting each leg to 155mm. Adjust the legs to the correct height by turning clockwise or anti-clockwise. Notching out the end panels (when required) In order to allow for any horizontal pipework running behind the unit, some units will require the back of unit’s side to be notched out.
  • Page 4 Drilling the pilot holes Drill a pilot hole through the back panel making sure to lightly mark the wall to indicate where the wall fixing should be placed. The hole should be located as per the diagram, in the centre and close to the top of the unit.
  • Page 5 Inserting the drawers Slide the drawer onto the runners, make sure the runner mechanism and the drawer sides’ groove line up. Push the drawer back into the unit after it has been positioned on the runners; you should hear a click. Adding the drawer buffers Add 1x door buffer to each side of each drawer along the carcase edge, as show in...
  • Page 6 Fitting the drawer cover caps Fit the drawer cover caps over the drawer side adjustment. Cleaning the unit Finally, the unit should be thoroughly cleaned to remove any debris that may have accumulated during the installation. Store the plinth clips and the remaining 15mm screws. These will be used later when attaching the plinth.
