Summary of Contents for FISCHER MMS Inspection DPM
- Page 1 Operator‘s Manual Inspection DPM ® Gage type High Coating Thickness Material Analysis Nanoindentation Material Testing...
- Page 2 Institut für Elektronik und Messtechnik. Subject to correction and technical changes. MMS® is a registered trade mark of the Helmut Fischer GmbH Institut für Elek- tronik und Messtechnik in Germany and other countries. Note: Designations not marked with ® or ™ may also be protected by law.
-
Page 3: Table Of Contents
Safety information ........1 Intended use ........1 Environmental conditions . - Page 4 10 About ......... . . 32 11 Legal Informations .
-
Page 5: Safety Information
1 Safety information If you use the gage as intended and observe the safety information, it will not present any danger. Please read and follow this Operator's Manual and observe the safety infor- mation. Also observe generally applicable safety and accident prevention reg- ulations. -
Page 6: Safety Of The Electrical Equipment
Potentially explosive environment The gage and accessories are not suitable for use in potentially explosive environments. ► Operate the gage and accessories only outside of potentially explosive areas! Safety of the electrical equipment Only accessories approved or recommended by the manufacturer may be con- nected to the gage! USB cable Damaged USB cable... -
Page 7: Description

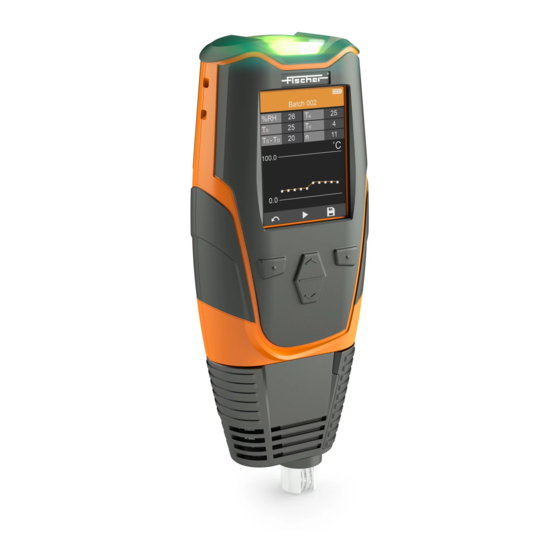

2 Description The gage model MMS Inspection DPM is for continuously measuring air tem- perature and humidity to determine the dew point. You can log these climate values over a prolonged period and emit an optical warning if specification limits are exceeded. To measure the surface temperature continuously, you can connect a magnetic temperature probe to the gage. -
Page 8: Gage
3 Number of times the displayed climate values have been saved 4 Key assignment line (example: delete icon, icon for opening the line chart and statistics of all climate factors, hold function icon) 5 Battery indicator A list of all display symbols and texts can be found starting on page 29. Gage Front of gage Rear of gage... -
Page 9: Keys
7 Air temperature and humidity probes protected by the housing grille 8 USB port 9 Battery compartment cover Gage dimensions can be found in the data sheet, page 12 Keys There are 4 keys for operating the gage. The bottom line of the display always shows the functions of the 4 keys (see illustration below). -
Page 10: Menus - Function Overview
Menus - function overview Main menu Display of the statistics for the opened batch Statistics > MEASURE > Switch to the measurement view Batch Modify > Settings and en- tries for the opened batch Tolerance Limits > Activation of specification limit monitoring and setting the limits for all measurands Alarm settings >... -
Page 11: Gage Concept
More Settings > Measurement units (for new batch) Resolution of the measurement reading display (for new batch) Battery Type Probe Settings > Raw data from probe About > Information about software version and probe as well as legal informa- tion such as copyright, data protec- tion conditions, enhanced labeling Gage concept In order to measure, a batch (file) must be created in the gage for each mea-... - Page 12 Inspection DPM High ®...
-
Page 13: Technical Data
Data Sheet ® Inspection DPM Monitoring climatic ambient conditions Dew Point Surface Temperature Air Temperature Relative Humidity Technical Data Easy and convenient operation Compact and robust case Scale 1:1... - Page 14 Inspection DPM Description The gage models MMS Inspection DPM measure all relevant climatic variables such as rela- tive humidity, air and surface temperature and determine dew point and the temperature difference between dew point and surface temperature from these variables. All these vari- ables may be monitored as well as continuously logged by means of the Log function.
- Page 15 Data transfer • USB: Data transfer of single readings to a PC, Data import to MSExcel via PC-Datex soft- ware; You can gratis download the PC-Datex program from Fischer-Homepage Bluetooth/WiFi only available in gage variant • Bluetooth/WiFi: Data transfer of measurements and data transfer of batches to App PHA-...
- Page 16 ® Inspection DPM Dimensions Gage 38 mm (1.5 ") 15 mm (0.59 ") 45 mm 29 mm (1.8 ") (1.14 ") 73 mm (2.9 ") Spezifications of Sensors Air temperature (Ta) Surface temperature (Ts) relative Humidity (RH) Measurement range -20 … +60 °C -20 …...
- Page 17 ® Inspection DPM Order Information MMS Inspection DPM Gage Variant Order no. Interface Memory capacity Vibration max. 10,000 measured Start 606-032 values in 1 batch 250,000 measured values High 606-033 USB + WiFi in 2500 batches Accessory for Product Order no.
-
Page 18: Set Up
3 Set up Installing batteries Switching on the gage ► Press the key for approx. 1 s. The display shows the main menu or Measurement view for the batch that was open at shut- down. Switching off the gage ► Press the key for approx. -
Page 19: Getting Started
4 Getting started All the settings relevant to measuring and logging the surface temperature, Batch 001 the ambient atmosphere and mea- 34.9 26.1 sured readings themselves are saved °C 27.2 in a file. Such a file is called a batch. °C 10.3 °C... -
Page 20: Settings For Measurement
5 Settings for measurement In order to measure, you need to create and open a batch (measuring appli- cation file). In a batch, you define the measuring application and settings for the measurement procedure, e.g. specification limit and alarm monitoring for certain factors during the measurement. -
Page 21: Creating A New Batch
Creating a new batch Each batch contains some presets for the measurement procedure. The preset selection is based on the requirements in a directive/standard or according to customer specifications. Before you start • The gage is switched on ( key) Creating a new batch 1. -
Page 22: Opening A Batch
Opening a batch Before you start • The gage is switched on ( key) Opening an existing batch 1. Main Menu () > Batches > OK 2. Select the desired batch from the list: 3. OK 4. MEASURE > OK Measurement view for the selected batch opens. -
Page 23: Measurement
Measurement The gage model MMS Inspection DPM is for continuously measuring tempera- ture and humidity to determine the dew point and the difference between sur- face temperature and dew point. You can log all these climate factors over a prolonged period and emit an optical warning if specification limits are ex- ceeded. -
Page 24: Before You Start
Before you start • The gage is switched on ( key) • Temperature probe • The gage surface temperature probe is used: The protective cap has been removed • A magnetic surface temperature probe is used (example): The temperature probe is connected to the gage •... -
Page 25: Correctly Holding The Gage During The Measurement
During the measurement you can also: • Delete the measured readings: • View the measurement curve for the measurands in a line chart: Correctly holding the gage during the measurement • Keep your hand in the area of the orange gage housing at all times, this is marked by the green rectangle in the figure to the Batch 003... - Page 26 Further examples - How to correctly hold the gage during the measurement Example 1 Example 2 Air circulation Batch 003 21.6 25.0 °C 30.0 °C °C Ts-Td 27.3 °C n = 5 21.6 25.0 °C 30.0 °C °C Ts-Td 27.3 °C n = 5 Air circulation...
-
Page 27: Assigning/Changing Batch Names
7 Assigning/changing batch names Assign a unique name for the batch. Keep in mind that many batch files are stored in the gage. A unique name makes the selection process easier. Procedure 1. Main Menu () > Batches > OK > 2. -
Page 28: Data Transfer
You can download the app for free from the Google Play Store or Apple App Store. • Single readings in an Excel file via PC-Datex, see page 26 You can download the program PC-Datex for free from the Fischer-Home- page. Transfer batch files in the PHASCOPE PAINT app Before you start •... - Page 29 What you can do next • Use the PHASCOPE PAINT app to export the data as follows: • CSV file, for measurement blocks, e.g., for import to MS Excel. Date and time of measurement block creation and measurement capture, single readings, tolerance specification limits, if in the selected appli- cation set, are always exported.
-
Page 30: Transfer Single Readings Online To An Excel File Via Pc-Datex
Information on the data import and further processing can be found in the corresponding program manuals. You can download the program PC-Datex for free from the Fischer-Home- page. Before you start •... - Page 31 Finish data transfer ► PC: In the PC-Datex Add-In tap on button Cancel of the PC-Datex window What can you do next • Open another batch, see page 18 • Make further measurements with the gage, see page 19 • Delete readings of the open batch in the gage: Main menu (v) >...
-
Page 32: Glossary
9 Glossary Batch A file for organizing and controlling the measurement data All the settings rel- evant to the measurement and the measured readings themselves are saved in a file. In the gage such a file is called a batch. In a batch, you define the mea- suring application and settings for the measurement procedure, e.g. -
Page 33: Glossary - Display Symbols
Glossary - Display symbols Batches menu, contains a list of already created batches and the New function for creating a new batch. Batch Modify menu, contains a list of alterable batch settings Statistics menu, contains statistics displays for the open batch. •... -
Page 34: Glossary - Display Texts
Glossary - Display texts 9.2.1 Keypad Functions Confirms the selection/setting Confirm the message/information Cancels the setting process and returns to the previous menu page Forward, skips the next step in the routine Back • Returns to the previous menu page, altered settings are applied •... - Page 35 9.2.2 Display texts - Evaluation / statistics • Largest single reading measured • Smallest single reading measured Number of single readings measured Upper specification limit Number of measured readings above the upper specification limit >USL The range R equals the difference between the largest measurement reading (maximum) and the smallest measurement reading (minimum) in a series of measurements Standard deviation from mean value...
- Page 36 10 About In this menu you will find all device information, information about the device status, the software and legal information. Navigation : Select the desired parameter/batch : Confirms selection : Scrolls forward through the page : Exit page, scrolls back to the previous page Call up menu ►...
- Page 37 11 Legal Informations In this chapter you will find all statements on country-specific regulations and directives 11.1 USA, FCC (Federal Communications Commission) FCC ID: 2ATFE-MMSINSPEC00 FCC Regulations This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interfer- ence that may cause undesired operation.
- Page 38 Changes or modifications not expressly approved by the party responsi- ble for compliance could void the user‘s authority to operate the equip- ment. Information about Specific Absorption Rate (SAR) This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States.
- Page 40 Coating Thickness Material Analysis Nanoindentaion Material Testing...
