Installation

Verify packaging contents before proceeding with assembly.

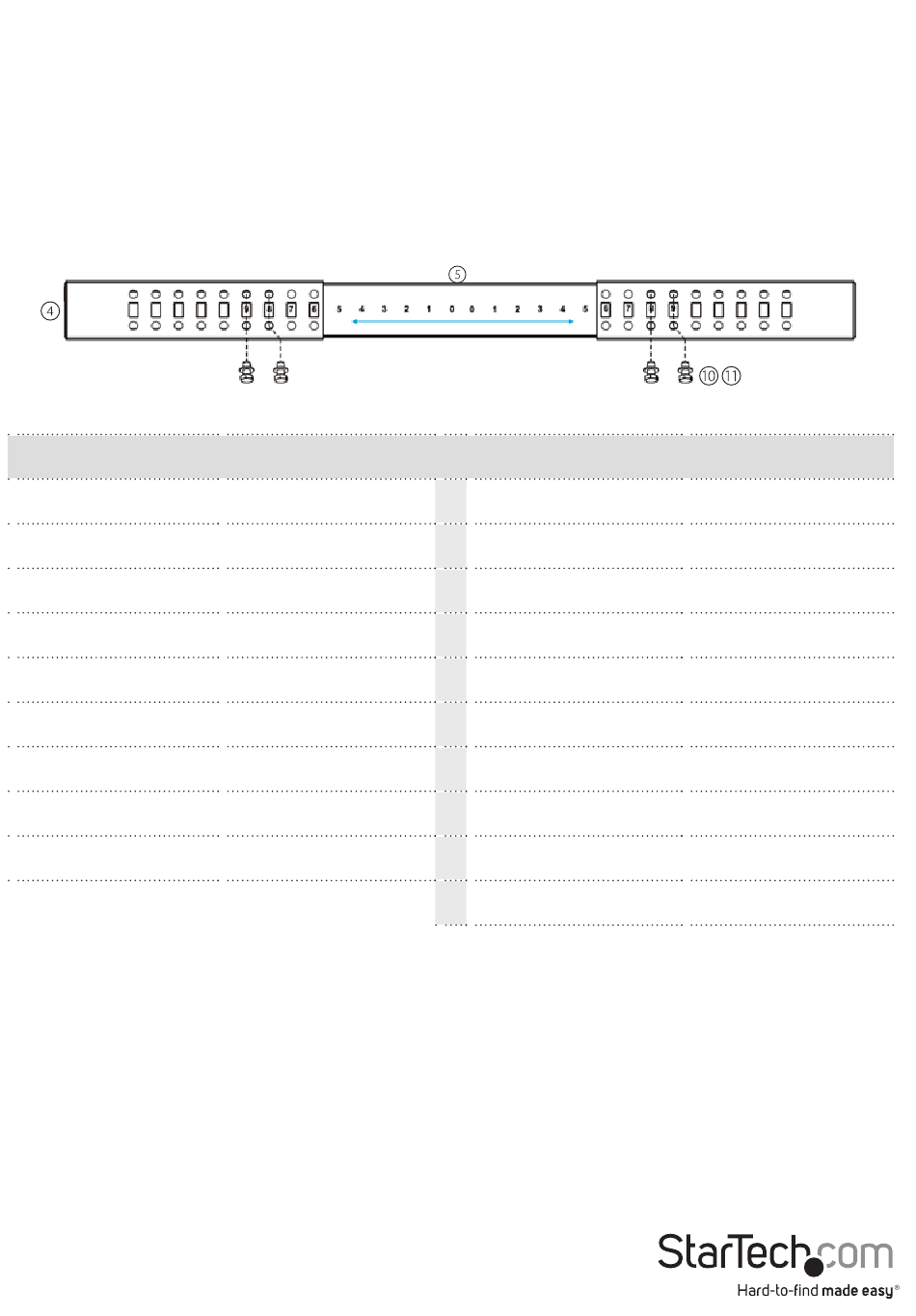

1. Assemble the Top and Bottom Beams (4 total) as shown below. Use the numbers
on the center sections to adjust the desired mounting depth. Slide the outer pieces
along the center piece until the desired numbers are visible within square slots on
the outer pieces. Reference the chart below for all available mounting depths.
Mounting Depth
22 in.
23 in.
24 in.
25 in.
26 in.
27 in.
28 in.
29 in.
30 in.
NOTE: Depth from 22 to 40 inches is available by adjusting the beams at
corresponding silk screen numbers on the beams.
Instruction Manual
Index Numbers
0 and 0
1 and 0
1 and 1
1 and 2
2 and 2
2 and 3
3 and 3
3 and 4
4 and 4
Mounting Depth
31 in.
32 in.
33 in.
34 in.
35 in.
36 in.
37 in.
38 in.
39 in.
40 in.
2
Index Numbers
4 and 5
5 and 5
5 and 6
6 and 6
6 and 7
7 and 7
7 and 8
8 and 8
8 and 9
9 and 9
