StarTech.com 4POSTRACKBK Assembly Instructions

Assembly Instructions
4POSTRACKBK
Thank you for purchasing a StarTech.com 4POSTRACKBK. Ideal for rackmount equipment,
KVM switches, or cabinet consoles, this open server rack provides fast and easy access to all
your installed rackmount equipment. With total ventilation and an unobstructed airflow,
this rack keeps your equipment at room temperature and is suitable for equipment where
security at the rack level is not required.
Package Contents
• 2 x frames
• 12 x arms
• Black buttons
• Nuts/bolts/lock washers (for floor mounts)
Required Tools
• Phillips screwdriver
• 1/2" wrench
• 5.5 mm Allen Key

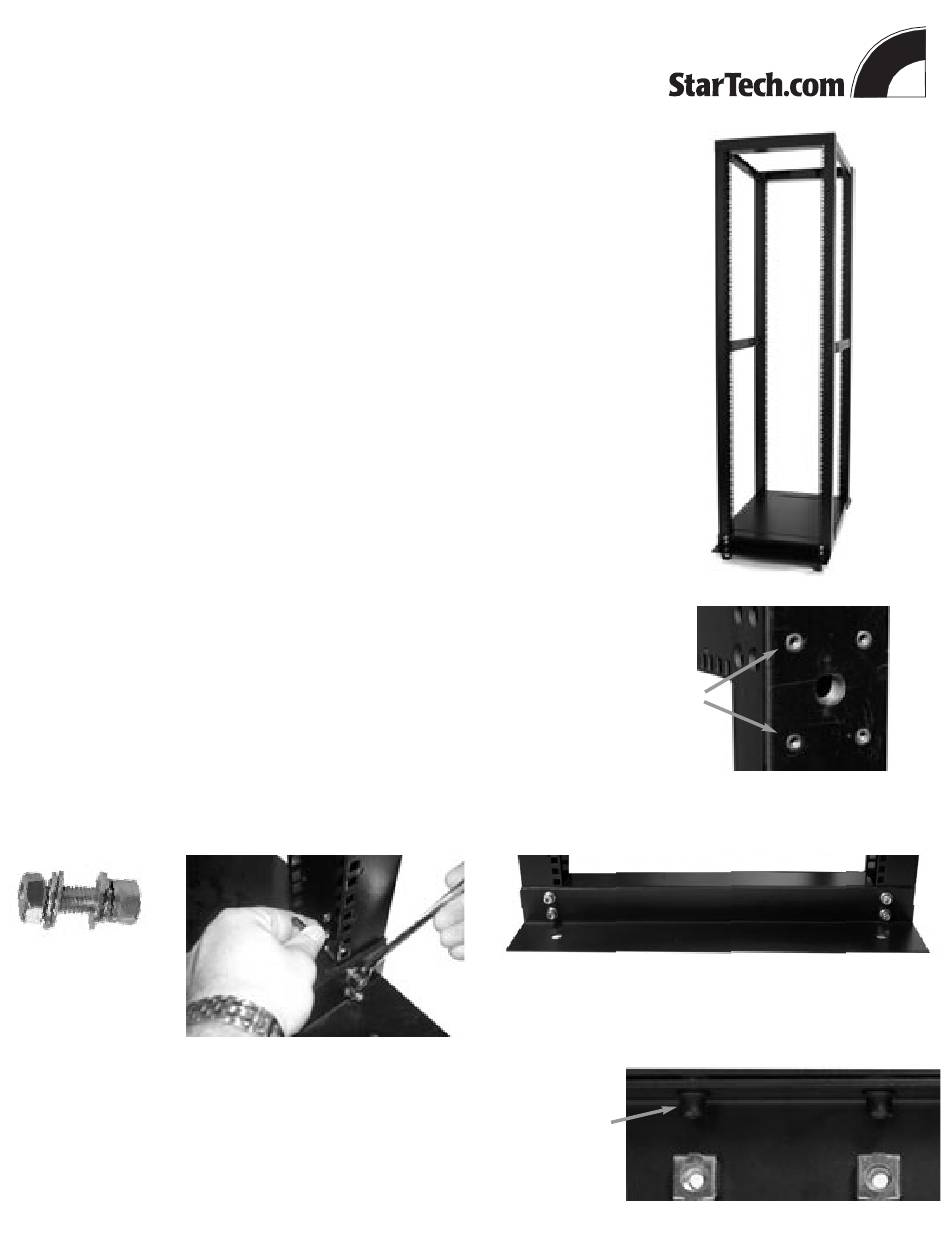

1. Make sure that your frames are right side up.
The bottom of the frame has holes for the floor mounts and casters. Make sure
that this end is at the bottom.
2. Attach the floor mounts.
Attach the floor mounts (the L-shaped brackets) to the frames. Use a washer, a lock washer, and a bolt behind each of the screws and
install the bottom screws first. (The bolt will be on the outside of the rack, the screw will be on the inside) You will need the wrench
and the Allen key to perform this step.
3. Attach the arms to the frames.
Separate your arms into pairs (consisting of one wide and one
narrow arm per pair). You will have six pairs of arms, three for each
side of the rack. The arms that connect the top and middle of the
frames are interchangeable. The narrow arms that connect the bottom
of the frames can be identified by the pre-mounted nuts on the inside
of the arms.
NOTE: When installing the arms, it might be easiest to start with the top arms for stability.
• 2 x floor mounts
• Arm screws
• Cage nuts
• 2 x floor plates
• Rackmount screws
• Lock washers
Look for these holes
on the bottom of
the frame
These pre-mounted
nuts indicate the
bottom arms
