User's Guide
TPS785EVM-033 Evaluation Module

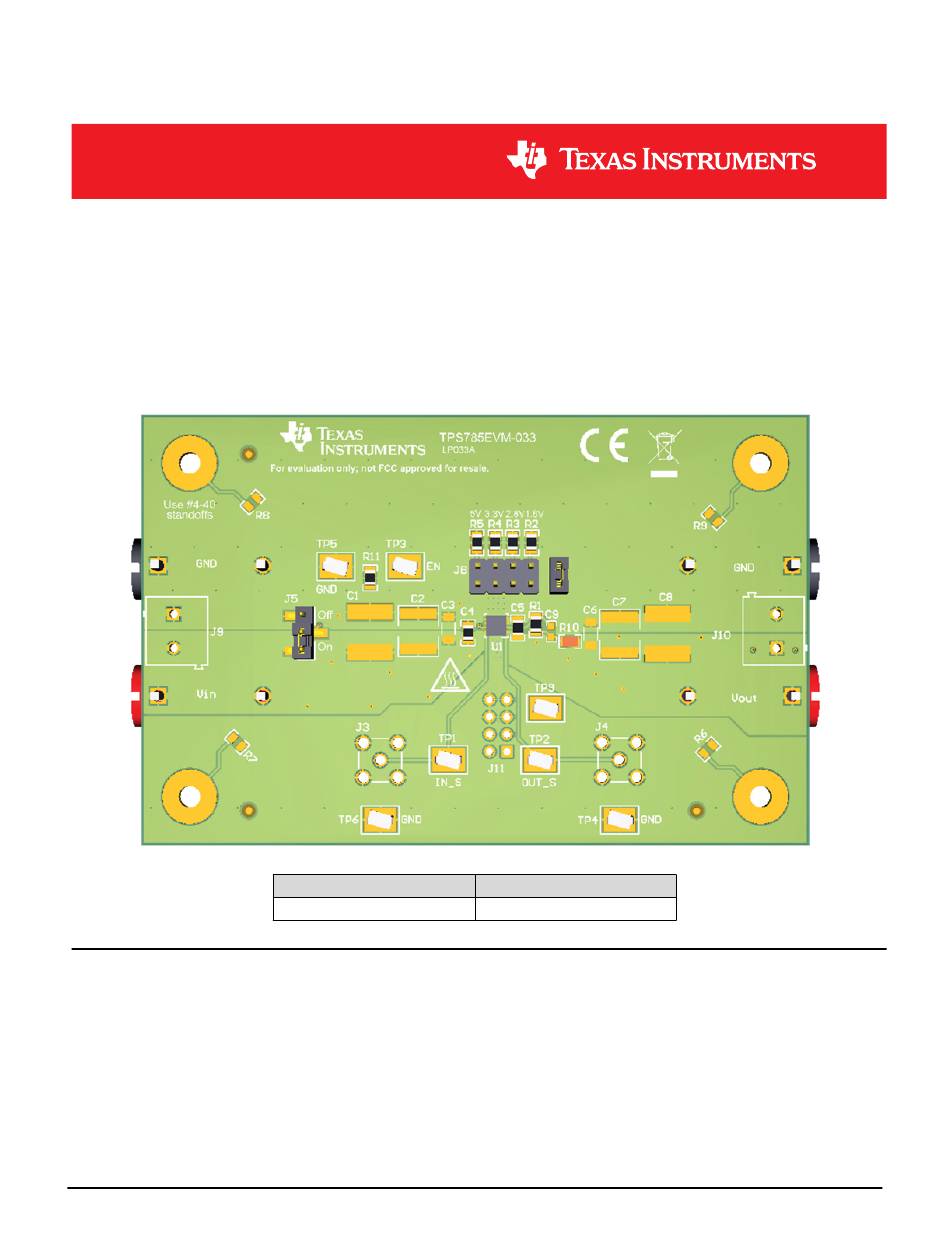

This user's guide describes the operational use of the TPS785EVM-033 evaluation module (EVM) as a
reference design for engineering demonstration and evaluation of the TPS785QDRBRQ1 low-dropout linear
regulator (LDO). Included in this user's guide are setup and operating instructions, thermal and layout
guidelines, a printed circuit board (PCB) layout, a schematic diagram, and a bill of materials (BOM).
Throughout this document, the terms demonstration kit, evaluation board, and evaluation module are
synonymous with the TPS785EVM-033.
Table 1-1
lists the related documentation available through the Texas Instruments web site at www.ti.com.
SBVU069 – FEBRUARY 2021
Submit Document Feedback
ABSTRACT
Table 1-1. Related Documentation
Device
TPS785-Q1
Copyright © 2021 Texas Instruments Incorporated
Literature Number
SBVS388
TPS785EVM-033 Evaluation Module
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments TPS785EVM-033
Summary of Contents for Texas Instruments TPS785EVM-033
-
Page 1: Table 1-1. Related Documentation
TPS785EVM-033 Evaluation Module ABSTRACT This user’s guide describes the operational use of the TPS785EVM-033 evaluation module (EVM) as a reference design for engineering demonstration and evaluation of the TPS785QDRBRQ1 low-dropout linear regulator (LDO). Included in this user’s guide are setup and operating instructions, thermal and layout guidelines, a printed circuit board (PCB) layout, a schematic diagram, and a bill of materials (BOM). -
Page 2: Table Of Contents
List of Tables Table 1-1. Related Documentation.............................. (1) (2) (3) (4) Table 8-1. TPS785EVM-033 ............................8 Trademarks All trademarks are the property of their respective owners. TPS785EVM-033 Evaluation Module SBVU069 – FEBRUARY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 3: Introduction
Introduction 1 Introduction Texas Instruments TPS785EVM-033 EVM assists design engineers to evaluate the operation and performance of the TPS785-Q1 family of linear regulators for possible use in their own circuit application. This particular EVM configuration contains a single 1 A low-IQ, low-dropout regulator for automotive systems. The regulator is capable of delivering up to 1 A to the load with a V range of 1.65 V to 6 V. -
Page 4: Evm Setup
EVM Setup www.ti.com 2 EVM Setup This section describes how to properly connect and set up the TPS785EVM-033, including the jumpers and connectors on the EVM board. 2.1 Input/Output Connector and Jumper Descriptions 2.1.1 J1 – VIN (Banana Jack) Input power-supply voltage connector. Twist together the positive input lead and ground return lead from the input power supply, and keep them as short as possible to minimize input inductance. -
Page 5: Soldering Guidelines
2. Enable the output by jumping J5 (the EN pin) to VIN. 3. Vary the respective load and input voltage, as necessary, for test purposes. SBVU069 – FEBRUARY 2021 TPS785EVM-033 Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 6: Pcb Layout
Figure 6-1. Top Composite View Figure 6-2. Top Layer Routing Figure 6-3. Signal Layer 1 Routing Figure 6-4. Signal Layer 2 Routing Figure 6-5. Bottom Layer Routing TPS785EVM-033 Evaluation Module SBVU069 – FEBRUARY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 7: Schematic
Vout 1µF 2.2uF 47µF 1µF 47µF 2.2uF IN_S OUT_S TPS78501QDRBQ1 1.0M 0.01uF 10.7k J11A J11B VOUT 21.5k 8.06k 6.19k 3.40k Figure 7-1. TPS785EVM-033 Schematic SBVU069 – FEBRUARY 2021 TPS785EVM-033 Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 8: Bill Of Materials
