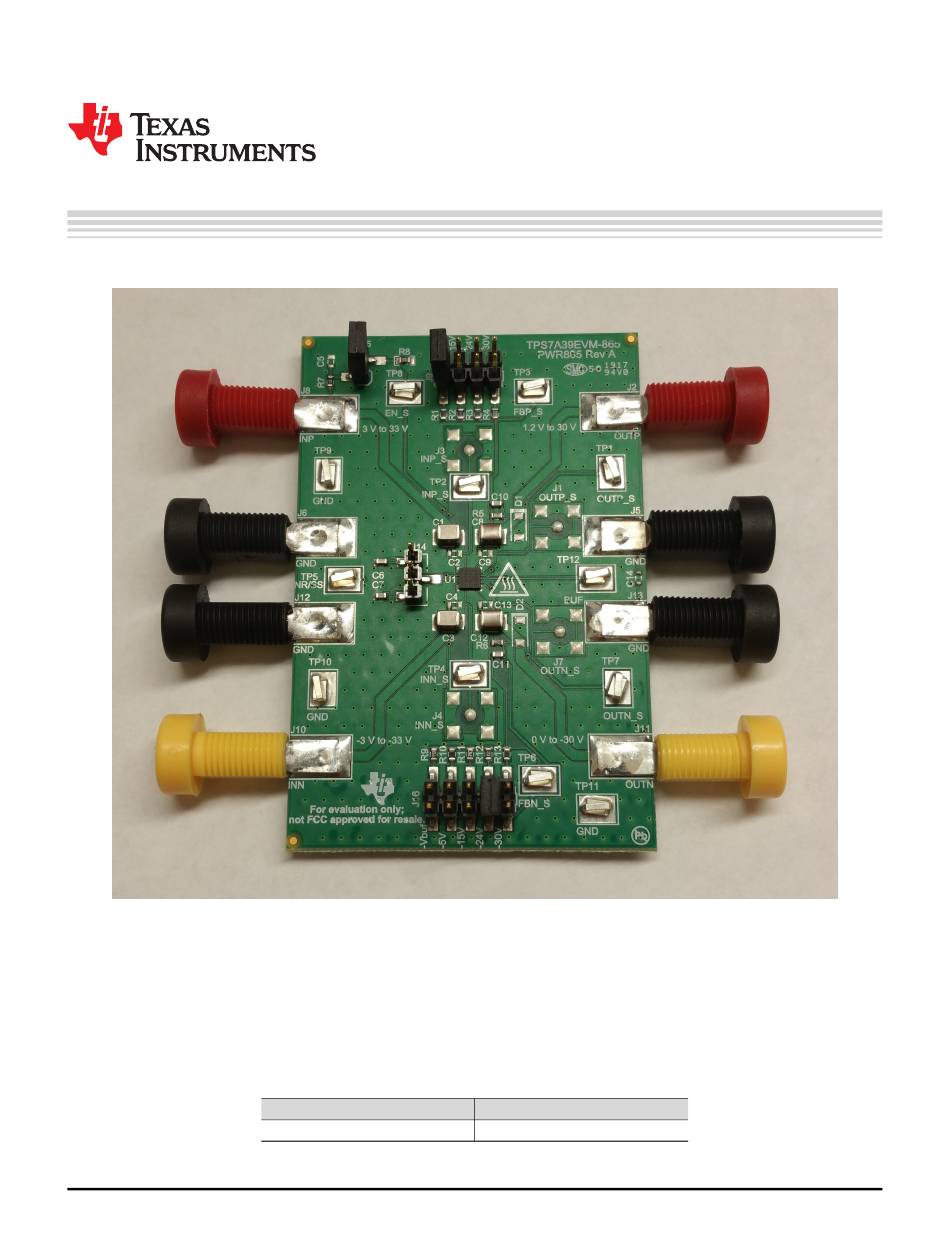

This user's guide describes the operational use of the TPS7A39EVM-865 evaluation module (EVM) as a

reference design for engineering demonstration and evaluation of the TPS7A3901DSC, low-dropout linear

regulator (LDO). Included in this user's guide are setup and operating instructions, layout guidelines, a

printed circuit board (PCB) layout, a schematic diagram, and a bill of materials (BOM).

Throughout this document, the terms demonstration kit, evaluation board, and evaluation module are

synonymous with the TPS7A39EVM-865.

The following related documents are available through the Texas Instruments web site at www.ti.com.

SBVU034 – July 2017

Submit Documentation Feedback

TPS7A39EVM-865 Evaluation Module

Need help?

Do you have a question about the TPS7A39EVM-865 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments TPS7A39EVM-865

Page 1 SBVU034 – July 2017 TPS7A39EVM-865 Evaluation Module This user’s guide describes the operational use of the TPS7A39EVM-865 evaluation module (EVM) as a reference design for engineering demonstration and evaluation of the TPS7A3901DSC, low-dropout linear regulator (LDO). Included in this user’s guide are setup and operating instructions, layout guidelines, a printed circuit board (PCB) layout, a schematic diagram, and a bill of materials (BOM).
Page 2: Table Of Contents
Top Layer Routing ....................... Bottom Layer Routing ..................... TPS7A39EVM-865 Schematic List of Tables ....................TPS7A39EVM-865 BOM Trademarks All trademarks are the property of their respective owners. TPS7A39EVM-865 Evaluation Module SBVU034 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
Page 3: Introduction
Introduction The Texas Instruments' TPS7A39EVM-865 EVM helps design engineers evaluate the operation and performance of the TPS7A39 for possible use in their own circuit application. This particular EVM configuration contains a single TPS7A39 device which integrates a positive and a negative monolithic bipolar LDO to simplify signal chain dual-rail power-supply design.
Page 4: Evm Setup
Positive input voltage power-supply connector. Keep the positive input lead as short as possible to minimize input inductance. 2.1.9 J9 – Positive LDO Resistor Divider TPS7A39EVM-865 is prepopulated with four resistor dividers for the positive output voltage. Place a short to select the desired output voltage from the silkscreen. 2.1.10 J10 – INN Negative input voltage power-supply connector.
Page 5: Tp12 - Buf
Output enable. To enable the outputs, connect a jumper to short INP to EN. 2.1.16 J16 – Negative LDO Resistor Divider TPS7A39EVM-865 is prepopulated with five options for the negative output voltage. Place a short to select the desired output voltage from the silkscreen. 2.1.17 TP1 –...
Page 6: Soldering Guidelines
2. Enable the output by jumping J15, the EN pin, to VIN. 3. Vary the respective load and input voltage, as necessary, for test purposes. TPS7A39EVM-865 Evaluation Module SBVU034 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
Page 7: Pcb Layout
Figure 1 Figure 3 illustrate the PCB layout for this EVM. Figure 1. Assembly Layer Figure 2. Top Layer Routing Figure 3. Bottom Layer Routing SBVU034 – July 2017 TPS7A39EVM-865 Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
Page 8: Schematic
Schematic www.ti.com Schematic Figure 4 is the schematic for this EVM. Figure 4. TPS7A39EVM-865 Schematic TPS7A39EVM-865 Evaluation Module SBVU034 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
Page 9: Bill Of Materials
These assemblies must comply with workmanship standards IPC-A-610 Class 2. Unless otherwise noted in the Alternate Part Number or Alternate Manufacturer columns, all parts may be substituted with equivalents. SBVU034 – July 2017 TPS7A39EVM-865 Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
Page 10 Fiducial mark. There is nothing to buy or mount. Fiducial J1, J3, J4, J7 Connector, SMA Jack, Vertical, Gold, SMD 142-0711-201 Emerson Network Power TPS7A39EVM-865 Evaluation Module SBVU034 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
Page 11 SBVU034 – July 2017 TPS7A39EVM-865 Evaluation Module Submit Documentation Feedback...
