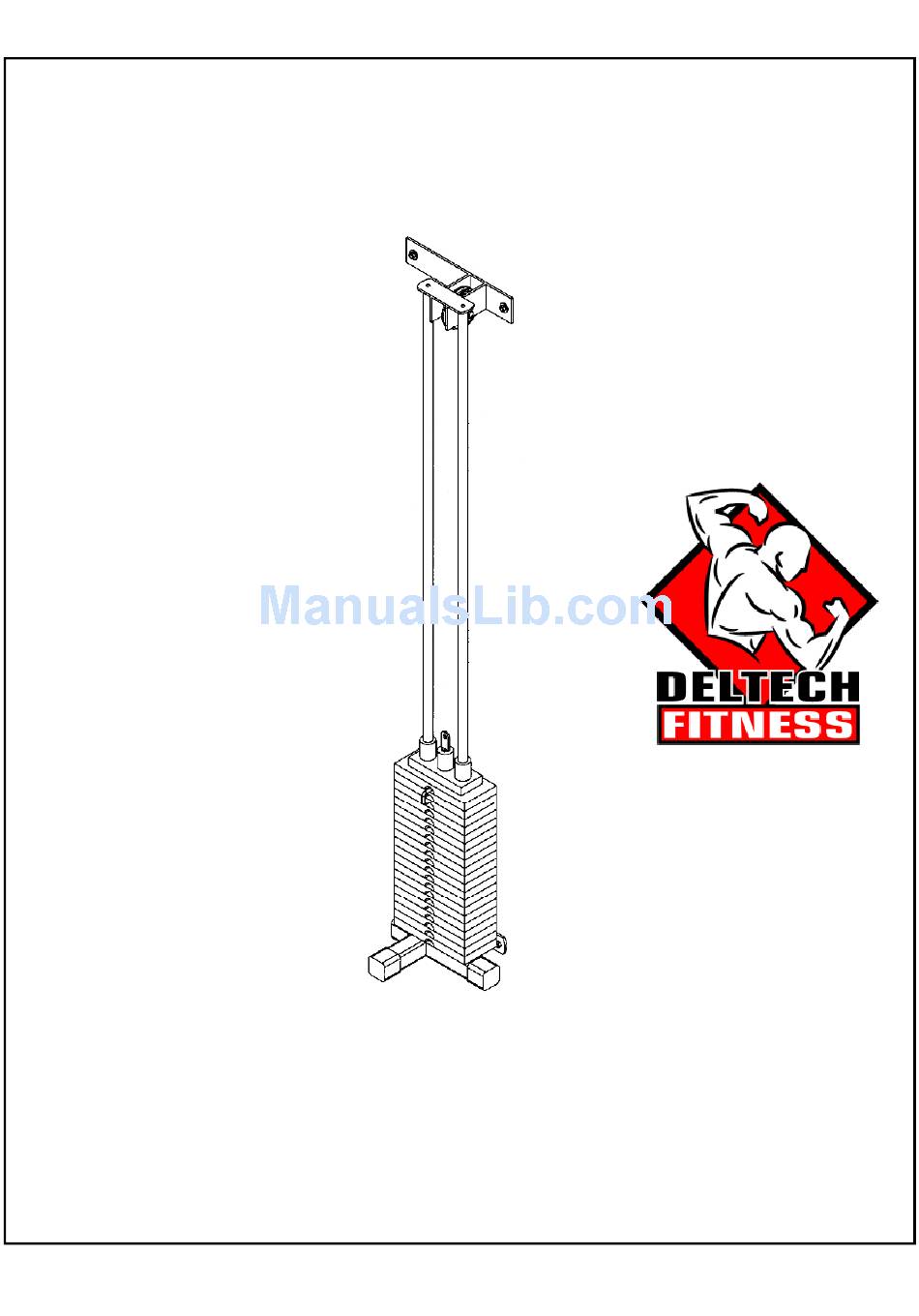

ASSEMBLY INSTRUCTIONS FOR
THE DF935 STACK KIT
(888) 258-0533
FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533

Advertisement

loading
Need help?

Need help?

Do you have a question about the DF935 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deltech Fitness DF935

Summary of Contents for Deltech Fitness DF935

  • Page 1 ASSEMBLY INSTRUCTIONS FOR THE DF935 STACK KIT (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...

  • Page 2: Box Contents

    QTY 2 TOP PLATE AS- QTY 1 SEMBLY QTY 1 200 LB WEIGHT STACK HARDWARE QTY 1 PACK QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 3 RUBBER DOUGHNUTS WEIGHT STACK QTY 2 QTY 2 ADJUSTMENT PIN QTY 1 (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...

  • Page 4: Lower Frame Assembly

    LOWER FRAME ASSEMBLY INSTALL THE RUBBER CAPS (F) 0NTO THE BOTTOM SUPPORT(B). ATTACH THE BOTTOM SUPPORT (B) TO THE LAT MACHINE USING THE 3/8” x 3” BOLTS (G) THE 3/8” FLAT WASHERS (H) AND THE 3/8” LOCK NUTS (I).

  • Page 5: Weight Stack Assembly

    WEIGHT STACK ASSEMBLY INSTALL THE RUBBER DOUGHNUTS (L) ONTO THE BOTTOM OF THE CHROME RODS (C) , LEAVING APPROXIMATELY 2” PROTRUDING. INSERT THE CHROME RODS INTO THE TWO OUTER HOLES IN THE BOTTOM SUPPORT. ASSEMBLE THE WEIGHT STACK (E) BY SLIDING EACH PLATE OVER THE CHROME RODS (C) AND ON TO THE BOTTOM SUPPORT.
  • Page 6 WEIGHT STACK ASSEMBLY WEIGHT STACK ASSEMBLY INSTALL THE UPPER SUPPORT ASSEMBLY (B) TO THE LAT MACHINE USING 3/8” x 3” BOLTS (G), 3/8” WASHERS (H), AND 3/8” LOCKNUTS (I). ATTACH THE UPPER SUPPORT FRAME ASSEMBLY TO THE CHROME RODS USING 3/8” x 1” BOLTS (M).
  • Page 7 UPPER CABLE INSTALLATION UPPER PULLEY FRAME REMOVED FOR CLARITY NOTE: UPPER CABLE IS SHORTER THAN THE BOTTOM CABLE FLOATING PULLEY ASSEMBLY INSTALL UPPER CABLE OVER FRONT PULLEY, BACK TO REAR PULLEY, DOWN TO TOP PULLEY OF FLOATING PULLEY ASSEMBLY, UP TO STACK ASSEMBLY PULLEY AND DOWN TO SELECTOR ROD ASSEMBLY.
  • Page 8 LOWER CABLE INSTALLATION FLOATING PULLEY ASSEMBLY INSTALL LOWER CABLE UNDER FRONT PULLEY, THROUGH SEAT FRAME, LEG HOLD DOWN FRAME, FRAME POLE, AND BACK TO REAR PULLEY. CONTINUE UP AND OVER LOWER PULLEY OF FLOATING PULLEY ASSEMBLY. ATTACH 8MM SNAP HOOK TO END OF CABLE AND THEN TO FRAME POLE BRACKET.

  • Page 9: Safety Notice

    SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
  • Page 10 T-SHIRT ORDER FORM DELTECH FITNESS T - SHIRT SIZES AVAILABLE ARE M-XXL. THE COLOR OF THE SHIRTS ARE WHITE. RED AND BLACK LOGO. ONLY $12.99 DELTECH FITNESS MUSCLE SHIRT SIZES AVAILABLE M-XXL THE COLOR AVAILABLE IS BLACK. RED AND WHITE LOGO.
