Assembly and Operating Instructions for Outback®

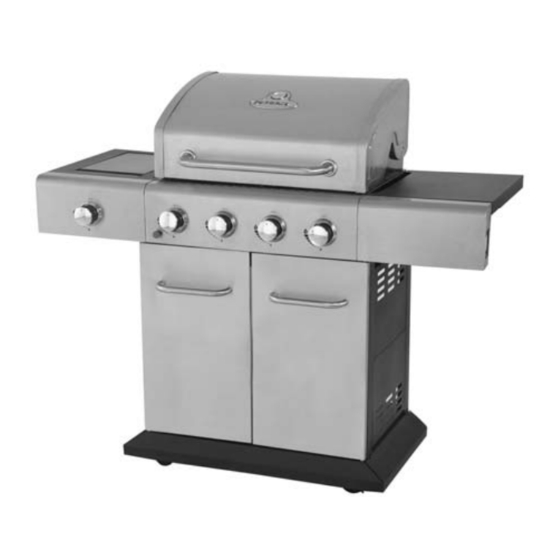

Meteor Select Stainless Steel 4 Burner Gas BBQ
Drawings are not to scale.
Specifications subject to change
without prior notice.
•
For outdoor use only. Not for commercial use.
•
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
•
Warning: accessible parts may be very hot. Keep young children and pets away.
•
Do not move the appliance during use.
•
Turn off the gas supply at the gas bottle after use.
•
Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
WARNING
rights.
•
Retain these instructions for future reference.
•
Leak test annually, and whenever the gas bottle is removed or replaced. Check that
the hose connections are tight and leak test each time you reconnect the gas bottle.
•
For Flare-up control please refer to the 'OPERATION' section of this manual.
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
MT-H4461-3
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Meteor MT-H4461-3 and is the answer not in the manual?

Questions and answers

Related Manuals for Outback Meteor MT-H4461-3

Summary of Contents for Outback Meteor MT-H4461-3

  • Page 1 Assembly and Operating Instructions for Outback® Meteor Select Stainless Steel 4 Burner Gas BBQ Drawings are not to scale. MT-H4461-3 Specifications subject to change 0359 without prior notice. • For outdoor use only. Not for commercial use. • Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.

  • Page 2: Parts List

    Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. Outback® Meteor Select Stainless CODE PART Steel 4 Burner Gas BBQ Hood (Pre-Assembled to Body)

  • Page 3: Parts Diagram

    Parts Diagram Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
  • Page 4 Hardware Reference Diagram Specifications subject to change without prior notice.
  • Page 5 Assembly IMPORTANT! • TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable spanner or metric spanner set. • Remove any internal component or packaging from the barbecue body. • Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case sharp edges are present.
  • Page 6 Attach the left / right cabinet panel assembly to the Bottom Panel (C21) using M6x40 Bolts (D5x8pcs) and M6 Nuts (D6x8pcs), ST4.0x10 Screw (D1x6pcs) as shown. Carefully turn the cabinet upside-down. Attach the Casters (C27x2pcs) into the rear legs and the Lockable Casters (C26x2pcs) into the Front legs.
  • Page 7 Attach the Wheel Skirt (C23, C24, C25) to the bottom panel using M4x10 Bolts (D2x7pcs) and M4 Nuts (D3x7pcs) as shown, Then fix the left / right wheel skirts onto the front wheel skirt using ST4.0x10 Screw (D1x2pcs) as shown. Unscrew the retaining bolts and retaining nuts from the Balance Weight (C22).
  • Page 8 Front Side Hole for assembling drip tray bracket Hole for assembling Ignition box Rear Side Carefully turn the assembled cabinet right side up. Attach Drip Tray Left Bracket (B10) to the right legs using ST4.0x10 Screws (D1x2pcs) as shown. Repeat above process for Drip Tray Right Bracket (B11). Fix the Electronic Ignition Assembly (C13) and Heat Shield (C14) to the front left leg by inserting two ST4.0x10 Screws (D1x2pcs) through the electronic ignition assembly and heat shield and screwing into the front left leg.
  • Page 9 Attach the Upper Body Support (C15) to the front legs using M6x15 Bolts (D4x4pcs). Attach the Door Handle (C16) onto the Left Door (C17) using M6x15 Bolts (D4x2pcs). Repeat above process for Right Door (C18).
  • Page 10 Fit the door to the cabinet by depressing the spring pins and placing into the cabinet. Attach the Basket (C19) onto the right door as shown. Carefully place the Barbecue Body (B1) onto the cabinet structure and fix using M6x40 Bolts (D5x8pcs) as shown.
  • Page 11 Remove the retaining bolts from Side Shelf Panel (C4), and then attach it onto Side Shelf (C3) using the retaining bolts. Attach the side shelf assembly to the barbecue body using ST4.0x10 Screw (D1x2pcs) and M6x15 Bolts (D4x4pcs) as shown.
  • Page 12 Remove the retaining bolts from Side Burner Shelf Panel (C2), and then attach it onto Side Burner Shelf (C1) using the retaining bolts. Attach the side burner shelf assembly to the barbecue body using ST4.0x10 Screw (D1x2pcs) and M6x15 Bolts (D4x4pcs) as shown.
  • Page 13 Attach the side burner valve and Knob Bezel (C6) onto side burner shelf using M4x10 Bolts (D2x2pcs) as shown. Press the Side Burner Knob (C7) onto side burner valve stem. Feed the Sear Burner (C8) through the hole in bottom of the side burner shelf, and fix side it onto Axle Spring Pin (D7) as shown.
  • Page 14 Large Leads Standard Leads Connect the wires to the electronic ignition assembly as shown in the diagram. Insert the electronic ignition battery (not supplied) into the battery compartment, ensuring the battery is correctly installed according to the (+) (-) markings. Insert the Drip Tray (B12) by sliding it underneath the barbecue body.
  • Page 15 Remove the plastic wrap from the Lava Rock (B6) and then distribute the Lava Rock evenly in the Basket (B7). Lay the lava rock carefully into the body ensuring it lies level within the body. Lay the cooking grill (B8) and griddle (B9) into place. NOTE: Ensure that the lava rock lies directly underneath the grill.

  • Page 16: Leak Testing

    Attach the Warming Rack (A3) to barbecue body as shown. ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE. Leak test annually, and whenever the gas bottle is removed or replaced. Leak Testing Always perform a leak test in a well-ventilated area.

  • Page 17: Gas, Regulator And Hose

    Important Information Before you use your barbecue, perform a leak test. This is the only safe and sure way Please read these instructions carefully to detect any gas leaking from joints and before assembly and use of your barbecue. connections of the barbecue after assembly. Leak test annually, and whenever the gas Retain these...

  • Page 18: Installation

    WARRANTY. Please consult your local gas Full coverage will cause excessive build-up dealer for the most suitable gas bottles and of heat and damage the barbecue. This is regulators. not covered by warranty. Preparation Before Cooking Installation To prevent foods from sticking to the cooking surface, please use a long handled brush to Selecting a Location apply a light coat of cooking or vegetable oil...
  • Page 19 lighting hole on the right side of the For best results, place the food you wish to barbecue body and place near rightmost bake or roast on a metal baking tray and set it burner porthole. on one side of the cooking grill. •...

  • Page 20: Care And Maintenance

    If a fat fire occurs, please see the instructions cleaning. Do not leave the barbecue exposed to given below. outside weather conditions or stored in damp, moist areas. Fat Fires Empty and clean the drip tray and drip pan (and Never handle hot parts with unprotected foil liner, if applicable) of food debris after each hands.
  • Page 21 cooking will keep the burners clean. Barbecue Hood or Lid & Trolley Use a non-abrasive cloth or pad and clean with The burners should be removed and cleaned hot, soapy water. Do not use scouring pads or annually, or whenever heavy build-up is found, powders as they can permanently damage the to ensure that there are no signs of blockage finish.

  • Page 22: Technical Specifications

    Burner 359BR665 or 37 mbar Propane Gas Consumption: Outback® Meteor Select Stainless Steel 4 Burner Gas BBQ: 943g/hr Side Burner: 189g/hr Countries of Use: BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, 3+ (28-30/37) SK, SI Specifications subject to change without prior notice.

  • Page 23: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode or ignition button wire is loose Reconnect wire...
  • Page 24 (10) years from the date of purchase. Stainless steel and cast iron burners are warranted for a period of two (2) years from the date of purchase. OUTBACK will, within this period, supply replacements for defective parts free of charge provided that: ♦...
