Removing the Upper Cover

1. See "Removing the Battery Pack" on page 44.
2. See "Removing the SD dummy card" on page 45.
3. See "Removing the ExpressCard dummy card" on page 46.
4. See "Removing the Lower Covers" on page 47.
5. See "Removing the DIMM Modules" on page 49.
6. See "Removing the WLAN Module" on page 50.
7. See "Removing the Hard Disk Drive Module" on page 52.
8. See "Removing the Optical Drive Module" on page 55.
9. See "Removing the Switch Cover" on page 59.
10. See "Removing the Keyboard" on page 61.
11. See "Removing the LCD Module" on page 66.

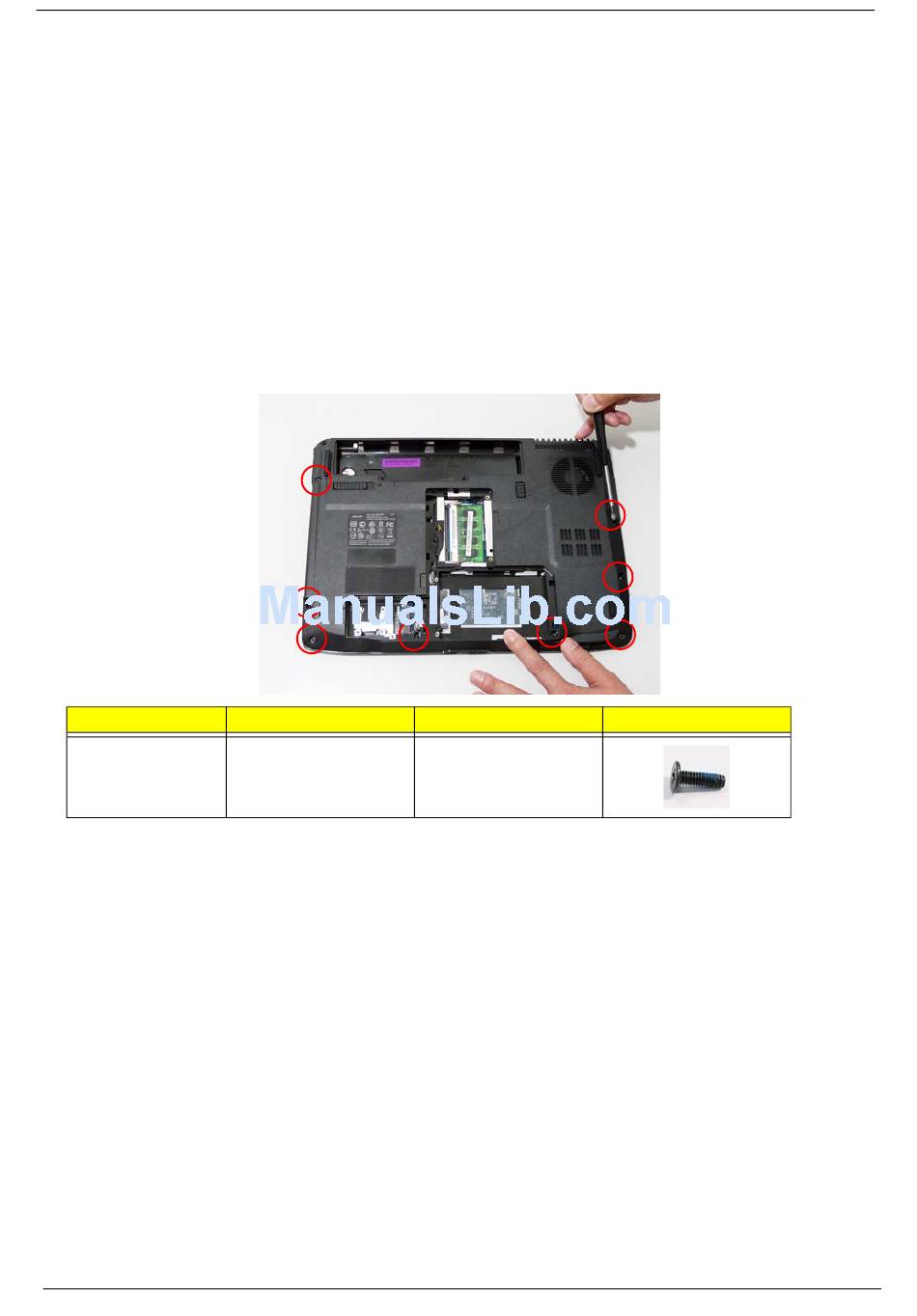

12. Turn the computer over. Remove the eight screws on the bottom panel.
Step
Upper Cover
68
Size
M2.5*8 (NL)
Quantity
8
Screw Type
Chapter 3
