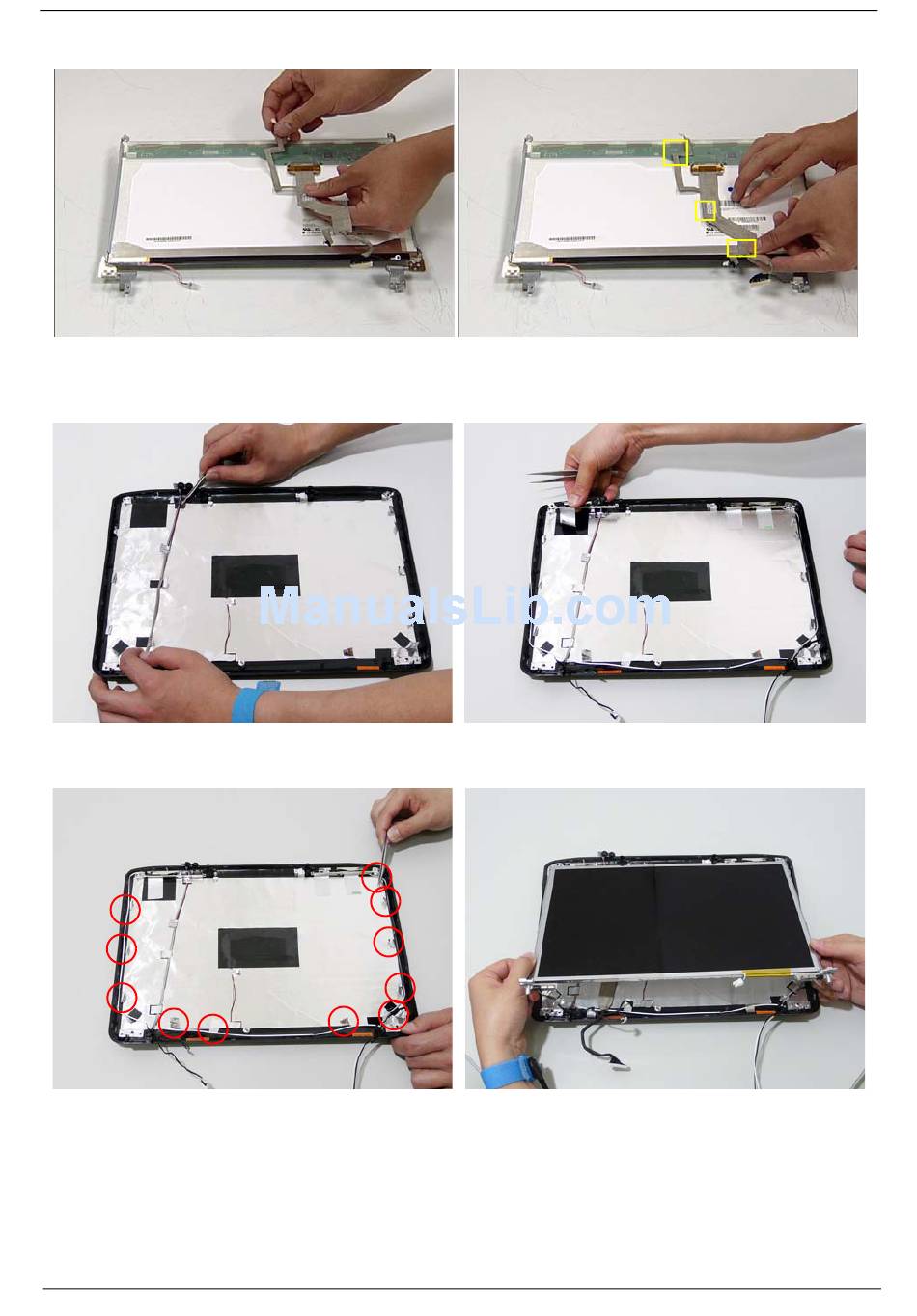

4. Align the LCD Panel cable as shown and press down to engage the adhesive pads.
5. Replace the MIC cable under the mylar tab strips,
and replace the MIC as shown. Secure the cable
by pressing down on the strips.
7. Secure the cable by pressing down on the securing
strip.
Chapter 3
6. Replace the antenna cable as shown. Ensure that
the cable is inserted under each tab strip.
8. Place the LCD Panel in the back cover.
107
