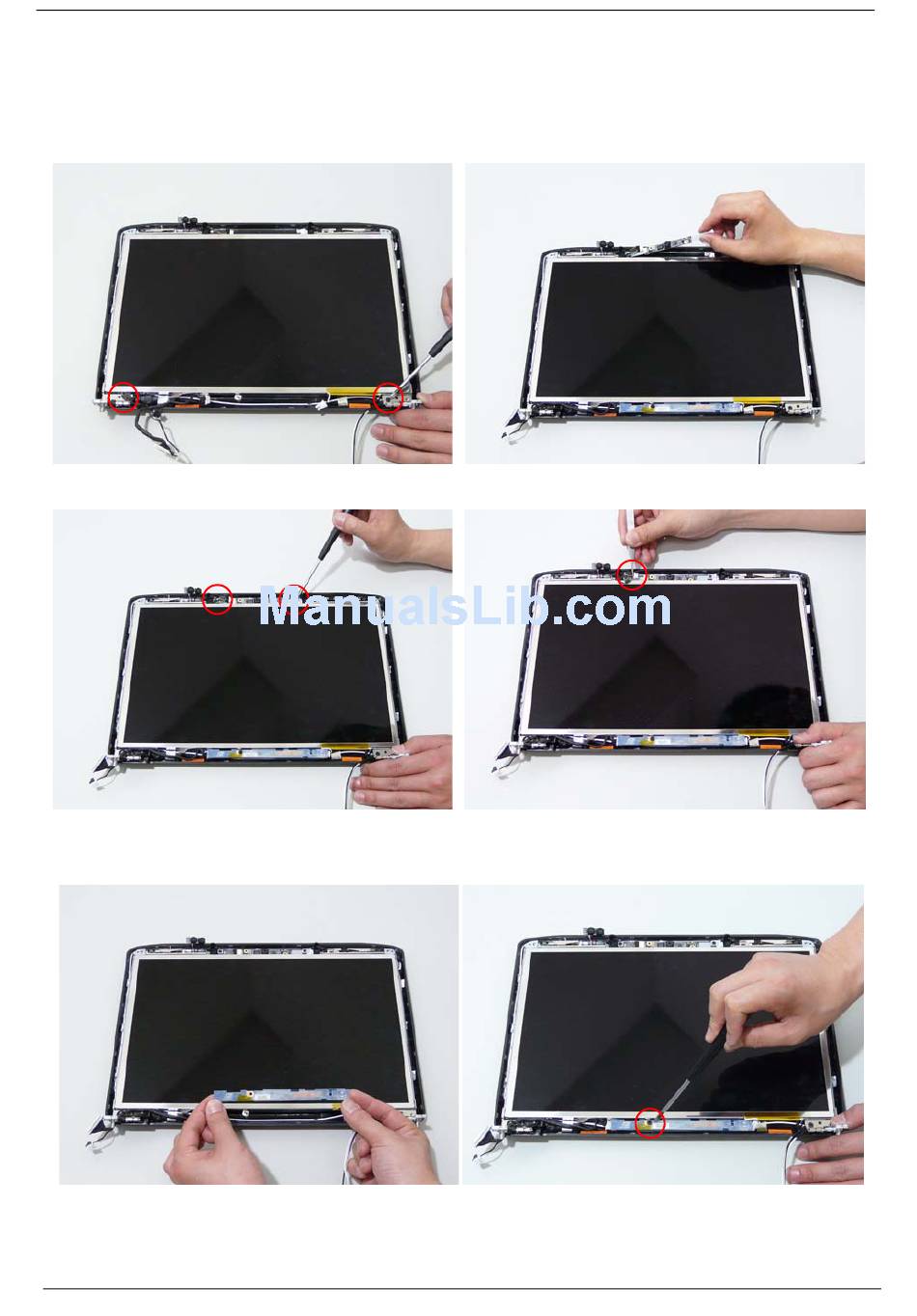

9. Secure the LCD module with the two securing
screws.
IMPORTANT:Ensure that the ground connector is
secured in place with the leftside panel
screw.
11. Replace the two securing screws.
13. Replace the Inverter board and secure with the single screw.
108
10. Insert the Camera Module (adhesive side down),
and secure by pressing down to insure cohesion.
12. Connect the Camera Module cable.
