Main Module Reassembly Procedure

Replacing the CPU

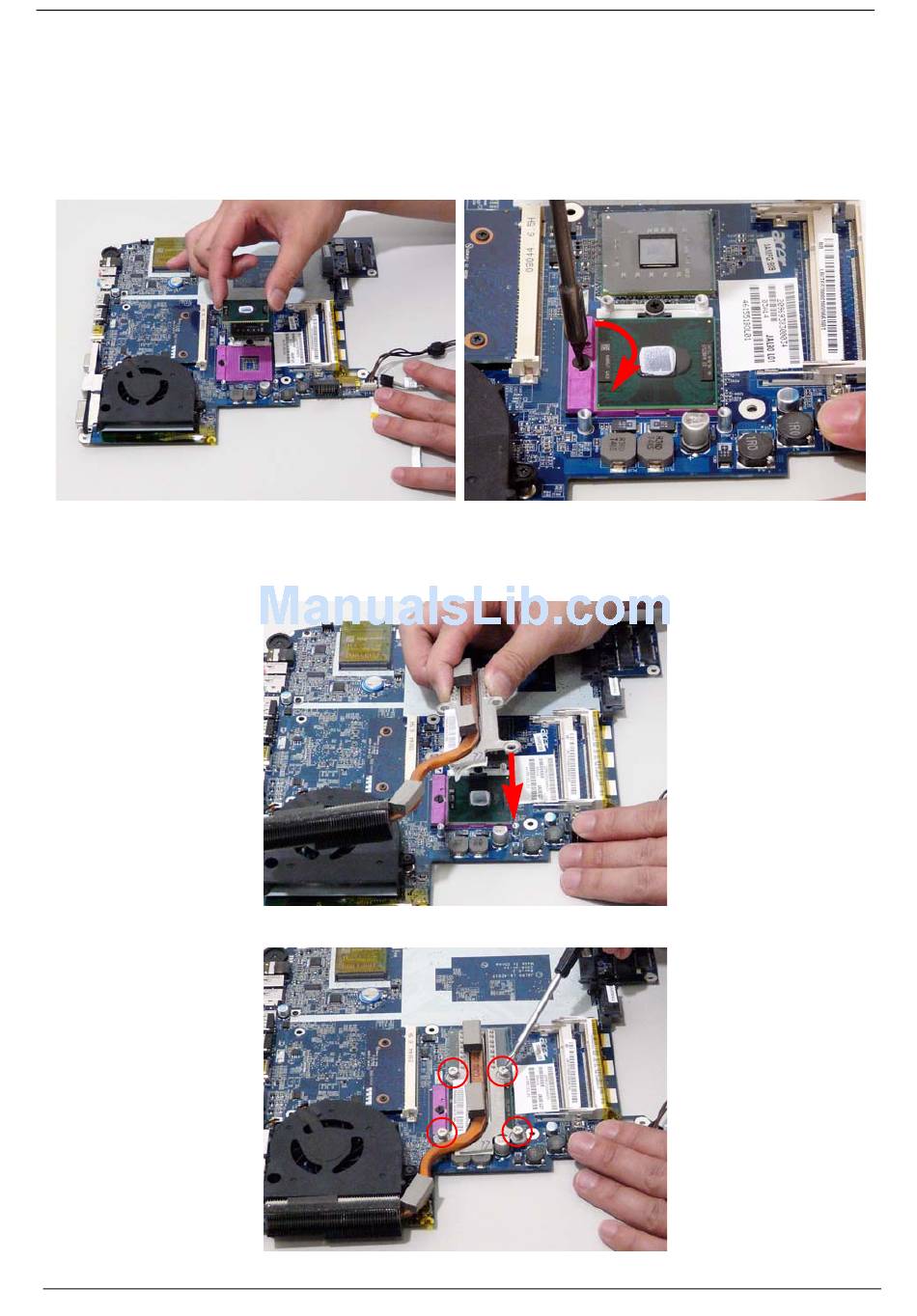

1. Carefully turn the mainboard upside down (CPU
side up), and insert the CPU into the CPU bracket
as shown.

Replacing the Thermal Module

1. Align and place the Thermal Module in the mounting as shown.
2. Replace the four securing screws to secure the Thermal Module.
110
2. Using a plastic screw driver, lock the CPU in the
socket as shown.
