82 | E5600 Controller-Drive Tray and Related Drive Trays Installation Guide
Drive tray Maximum
number of
drives
DE5600 24
DE6600 60
The drive limit might be lower than 384 for some sub-models of the controller-drive tray.
Note:
You are notified through the Major Event Log (MEL) if you attempt to install drives in excess of
the limit for your storage array. If this occurs, contact technical support.

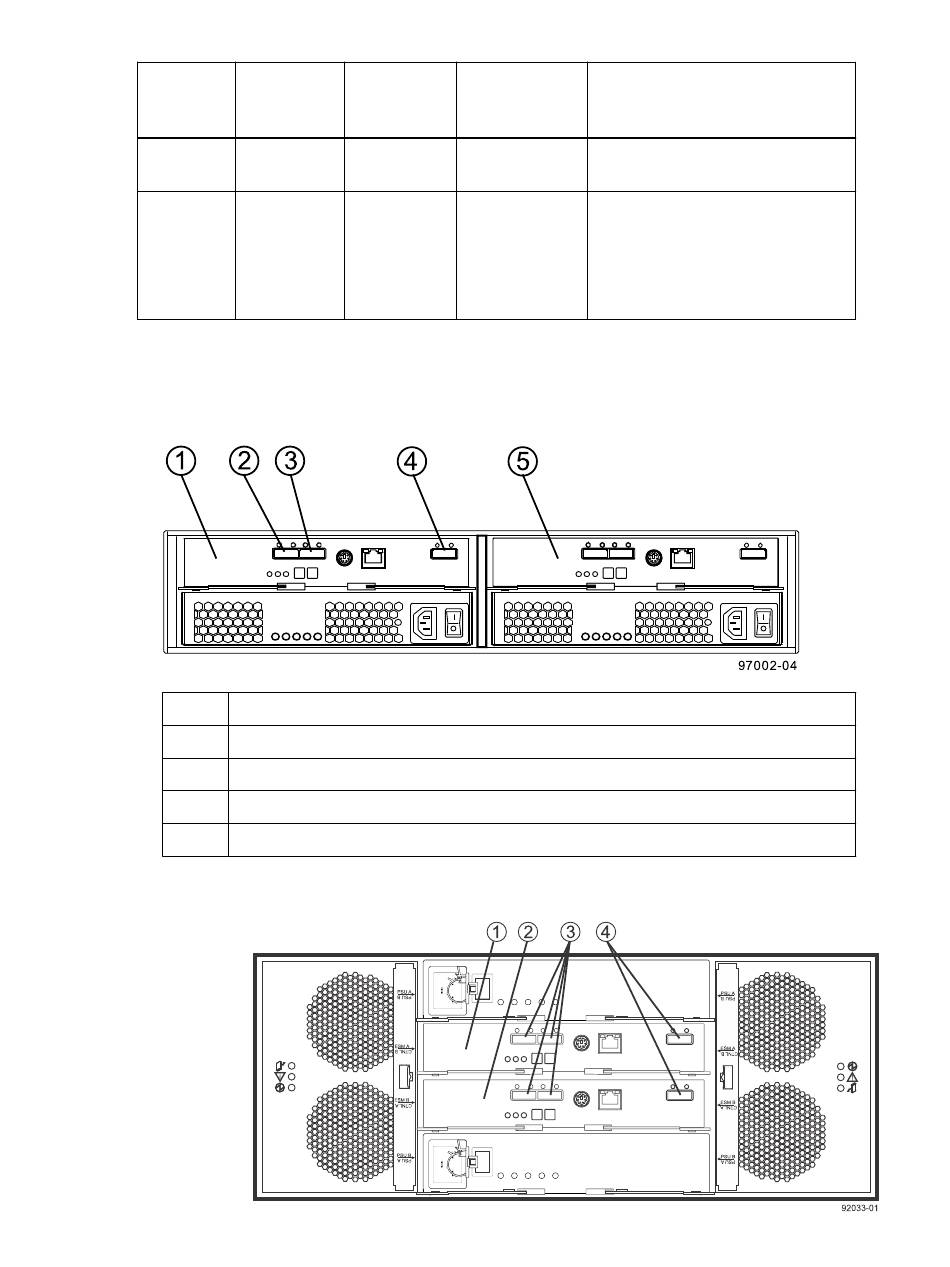

• DE1600 and DE5600 drive trays - Rear view
1 ESM A
2 SAS In connector
3 SAS In connector
4 SAS Expansion (Out) connector
5 ESM B
• DE6600 drive tray - Rear view
Drive size Number of
SAS In
connectors
6.35 cm (2.5 2
in.)
2
• 8.89 cm
(3.5 in.)
• 6.35 cm
(2.5 in.)
Number of SAS Expansion (Out)
connectors
1
1
