46 | E5600 Controller-Drive Tray and Related Drive Trays Installation Guide

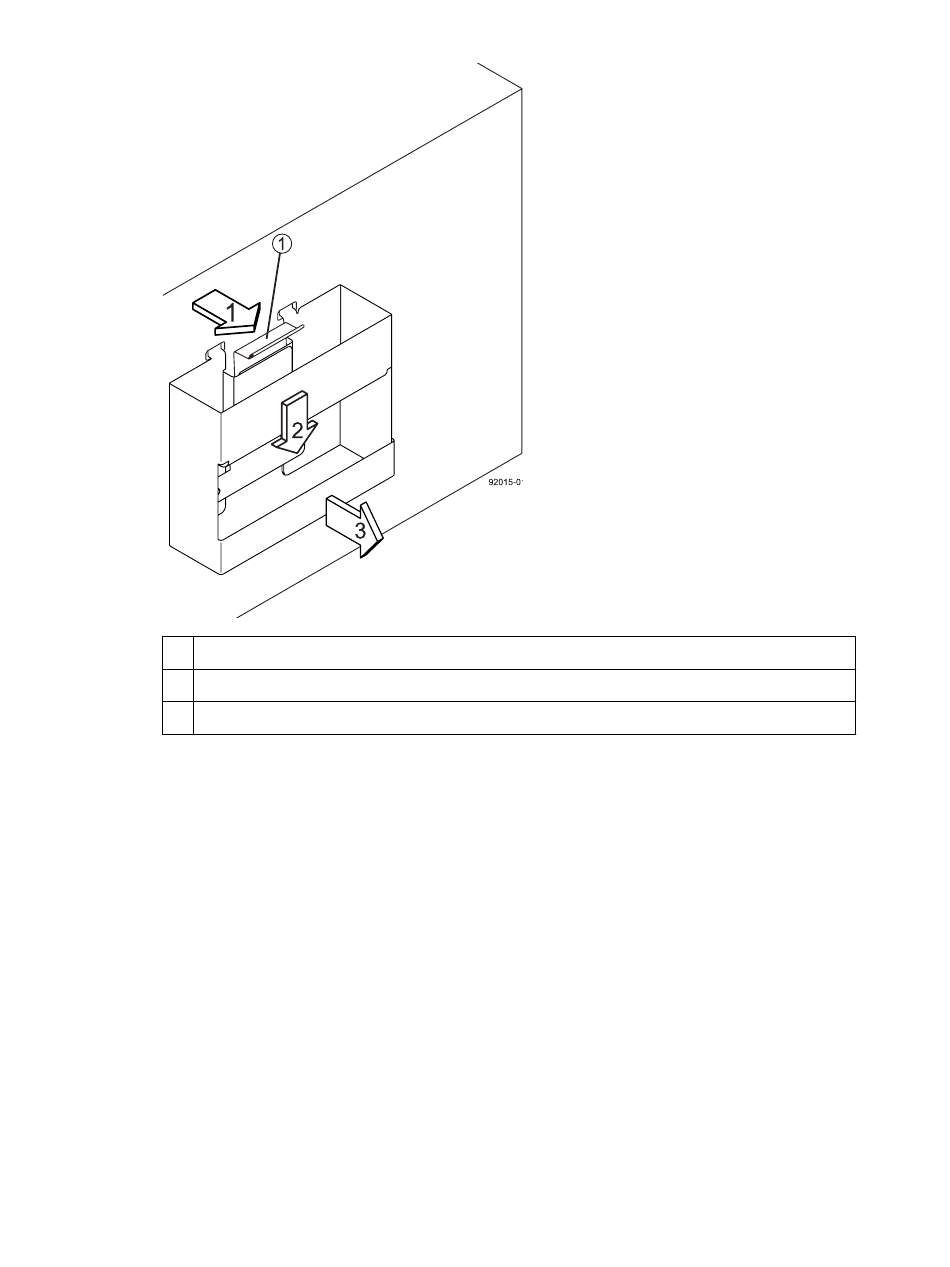

1 Pull the thumb latch away from the controller-drive tray to detach the hook.
2 Shift the handle down to release the other four hooks.
3 Move the handle away from the controller-drive tray.
12. Secure the front of the controller-drive tray to the cabinet. Use the four screws to attach the flange
on each side of the front of the controller-drive tray to the mounting rails.
a. Insert two M5 screws through the bottom holes of a flange on the controller-drive tray so that
the screws go through the EIA support rail and engage the bottom captured nuts in the
mounting rail. Tighten the screws.
You had attached the second and fourth threaded holes in step
b. Repeat this step for the second flange.
13. Secure the side of the controller-drive tray to the mounting rails.
a. Tighten the thumbscrew on the rear mounting bracket that you installed in step
the controller-drive tray to the mounting rails.
b. Repeat this step for the other side.
Ensure that each drive drawer in the controller-drive tray is securely latched to ensure
Note:
proper air flow to the drives.
8.c .
7.f to secure
