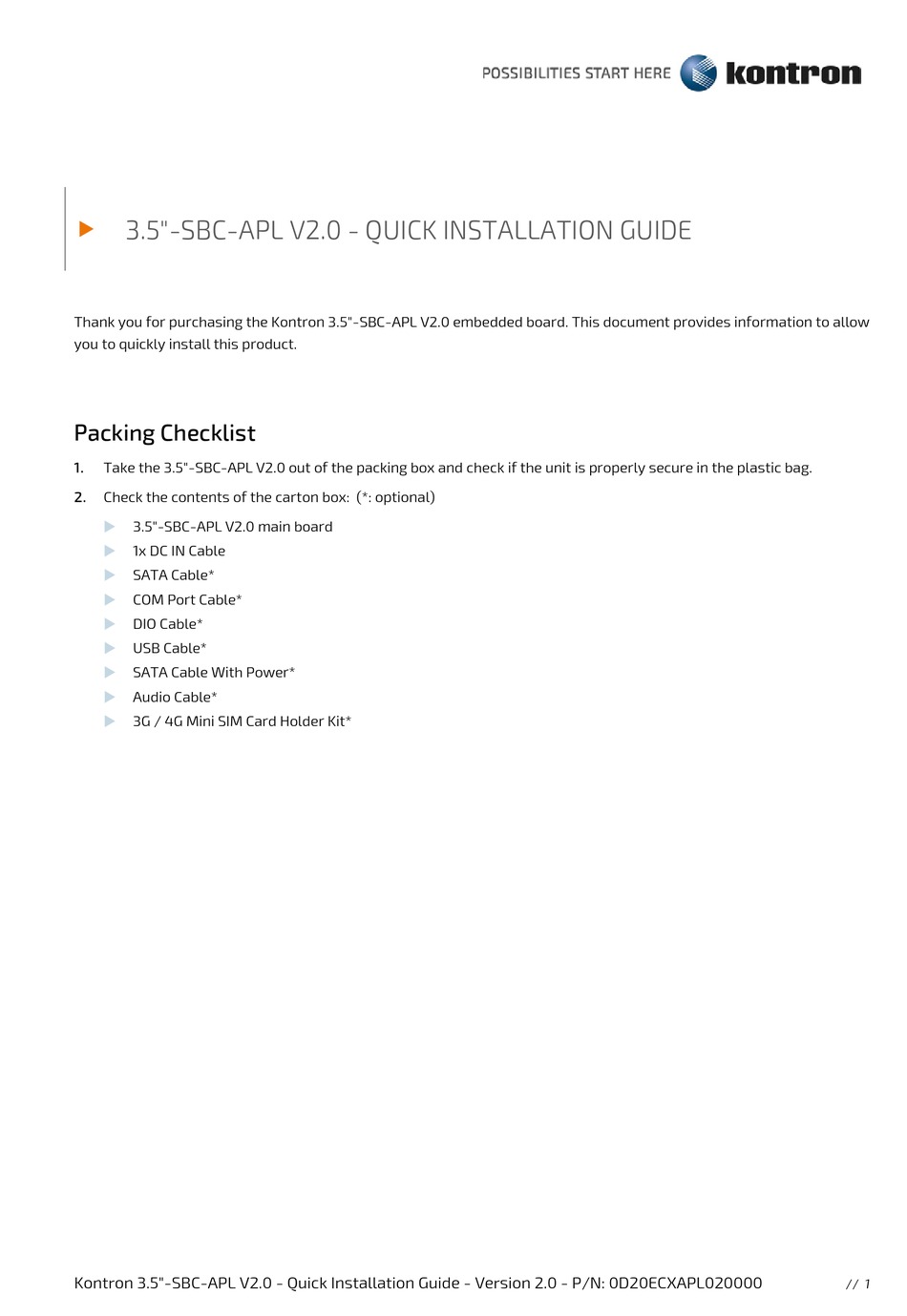

3.5"-SBC-APL V2.0 - QUICK INSTALLATION GUIDE

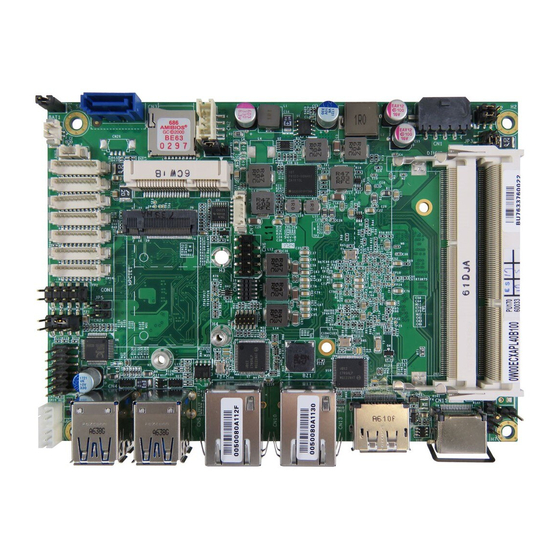

Thank you for purchasing the Kontron 3.5"-SBC-APL V2.0 embedded board. This document provides information to allow
you to quickly install this product.
Packing Checklist
1.
Take the 3.5"-SBC-APL V2.0 out of the packing box and check if the unit is properly secure in the plastic bag.
2.
Check the contents of the carton box: (*: optional)
3.5"-SBC-APL V2.0 main board
1x DC IN Cable
SATA Cable*
COM Port Cable*
DIO Cable*
USB Cable*
SATA Cable With Power*
Audio Cable*
3G / 4G Mini SIM Card Holder Kit*
Kontron 3.5"-SBC-APL V2.0 - Quick Installation Guide - Version 2.0 - P/N: 0D20ECXAPL020000
// 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kontron 3.5"-SBC-APL V2.0
Summary of Contents for Kontron 3.5"-SBC-APL V2.0
- Page 1 3.5"-SBC-APL V2.0 - QUICK INSTALLATION GUIDE Thank you for purchasing the Kontron 3.5"-SBC-APL V2.0 embedded board. This document provides information to allow you to quickly install this product. Packing Checklist Take the 3.5"-SBC-APL V2.0 out of the packing box and check if the unit is properly secure in the plastic bag.
- Page 2 FAN1 DC5V Fan Wafer SATA1 Serial ATA Port 0 Connector HDD Power Output Wafer USB2.0 Port DN_1, DN_2 Pin Header CN26 USB2.0 Port Wafer (Optional) Kontron 3.5"-SBC-APL V2.0 - Quick Installation Guide - Version 2.0 - P/N: 0D20ECXAPL020000 // 2...
- Page 3 SIM Card Selection (JP1) Jumper Position Description Pin 1-2 MPCIE (default) M.2 Key B “X” = Jumper set (short) and “-” = jumper not set (open) Kontron 3.5"-SBC-APL V2.0 - Quick Installation Guide - Version 2.0 - P/N: 0D20ECXAPL020000 // 3...
- Page 4 Description Pin 2-4 Pin 4-6 Panel Power = +3,3V Panel Power = +5V “X” = Jumper set (short) and “-” = jumper not set (open) Kontron 3.5"-SBC-APL V2.0 - Quick Installation Guide - Version 2.0 - P/N: 0D20ECXAPL020000 // 4...
- Page 5 “X” = Jumper set (short) and “-” = jumper not set (open) M.2 Key B Activity LED Pin Header (JP5) Signal LED+ LED- MPCIE1 Activity LED Indication (JP6) Signal LED+ LED- Kontron 3.5"-SBC-APL V2.0 - Quick Installation Guide - Version 2.0 - P/N: 0D20ECXAPL020000 // 5...
- Page 6 ME F/W Selection (JP10) Jumper Position Description Pin 1-2 ME F/W Disabled Normal Operation “X” = Jumper set (short) and “-” = jumper not set (open) Kontron 3.5"-SBC-APL V2.0 - Quick Installation Guide - Version 2.0 - P/N: 0D20ECXAPL020000 // 6...
- Page 7 CN15 HDMI Connector CN13 DP Connector CN10 GbE LAN2 RJ-45 Connector GbE LAN1 RJ-45 Connector USB3.0 Port 3,4 Type-A Connector USB3.0 Port 1,2 Type-A Connector Kontron 3.5"-SBC-APL V2.0 - Quick Installation Guide - Version 2.0 - P/N: 0D20ECXAPL020000 // 7...
