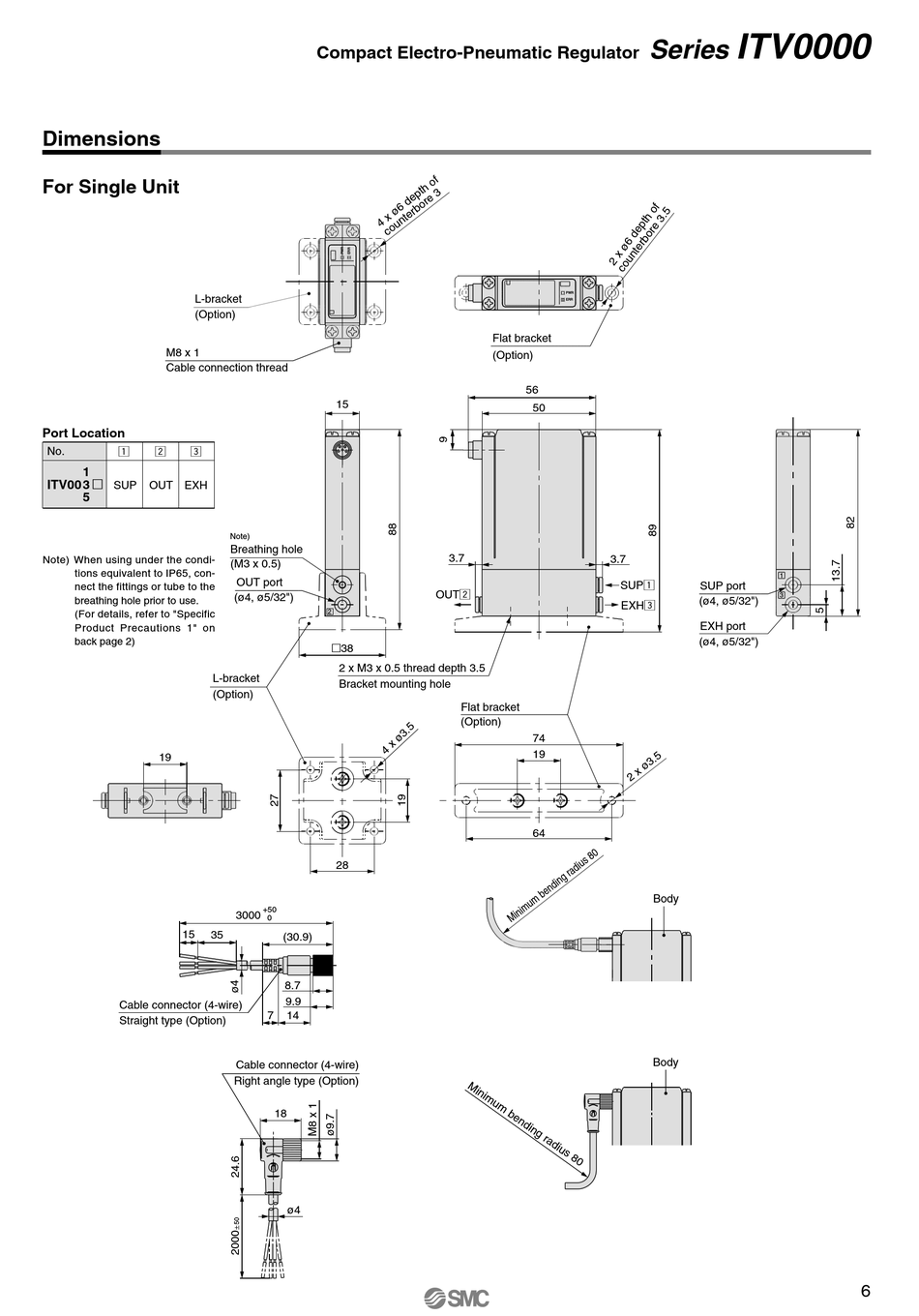

Dimensions
For Single Unit
L-bracket
(Option)
M8 x 1
Cable connection thread
Port Location
z
x
c
No.
1
ITV00
3
SUP
EXH
OUT
5
Note) When using under the condi-
tions equivalent to IP65, con-
nect the fittings or tube to the
breathing hole prior to use.
(For details, refer to "Specific
Product Precautions 1" on
back page 2)
L-bracket
(Option)
19
15
35
Cable connector (4-wire)
Straight type (Option)
Compact Electro-Pneumatic Regulator
15
Note)
Breathing hole
(M3 x 0.5)
OUT port
( ø 4, ø 5/32")
2
38
2 x M3 x 0.5 thread depth 3.5
Bracket mounting hole
28
+50
3000
0
(30.9)
8.7
9.9
7
14
Cable connector (4-wire)
Right angle type (Option)
18
ø4
PWR
ERR
Flat bracket
(Option)
56
50
3.7
OUTx
Flat bracket
(Option)
74
19
64
ITV0000
Series
3.7
1
SUPz
SUP port
3
( ø 4, ø 5/32")
EXHc
EXH port
( ø 4, ø 5/32")
Body
Body
6
