ITV0000
Series

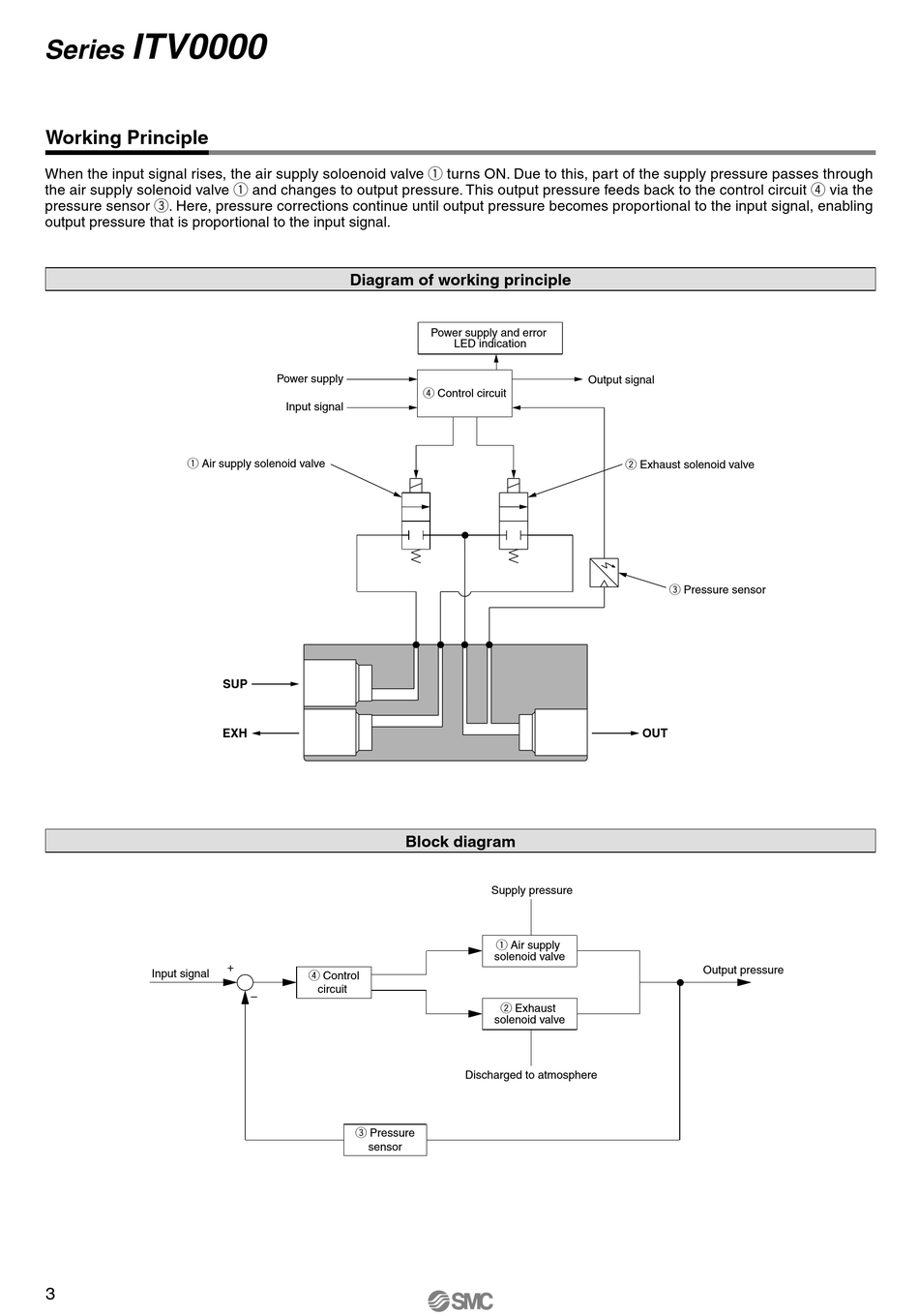

Working Principle
When the input signal rises, the air supply soloenoid valve q turns ON. Due to this, part of the supply pressure passes through
the air supply solenoid valve q and changes to output pressure. This output pressure feeds back to the control circuit r via the
pressure sensor e. Here, pressure corrections continue until output pressure becomes proportional to the input signal, enabling
output pressure that is proportional to the input signal.
q Air supply solenoid valve
Input signal
3
Diagram of working principle
Power supply
Input signal
SUP
EXH
+
r Control
circuit
–
e Pressure
sensor
Power supply and error
LED indication
r Control circuit
Block diagram
Supply pressure
q Air supply
solenoid valve
w Exhaust
solenoid valve
Discharged to atmosphere
Output signal
w Exhaust solenoid valve
e Pressure sensor
OUT
Output pressure
