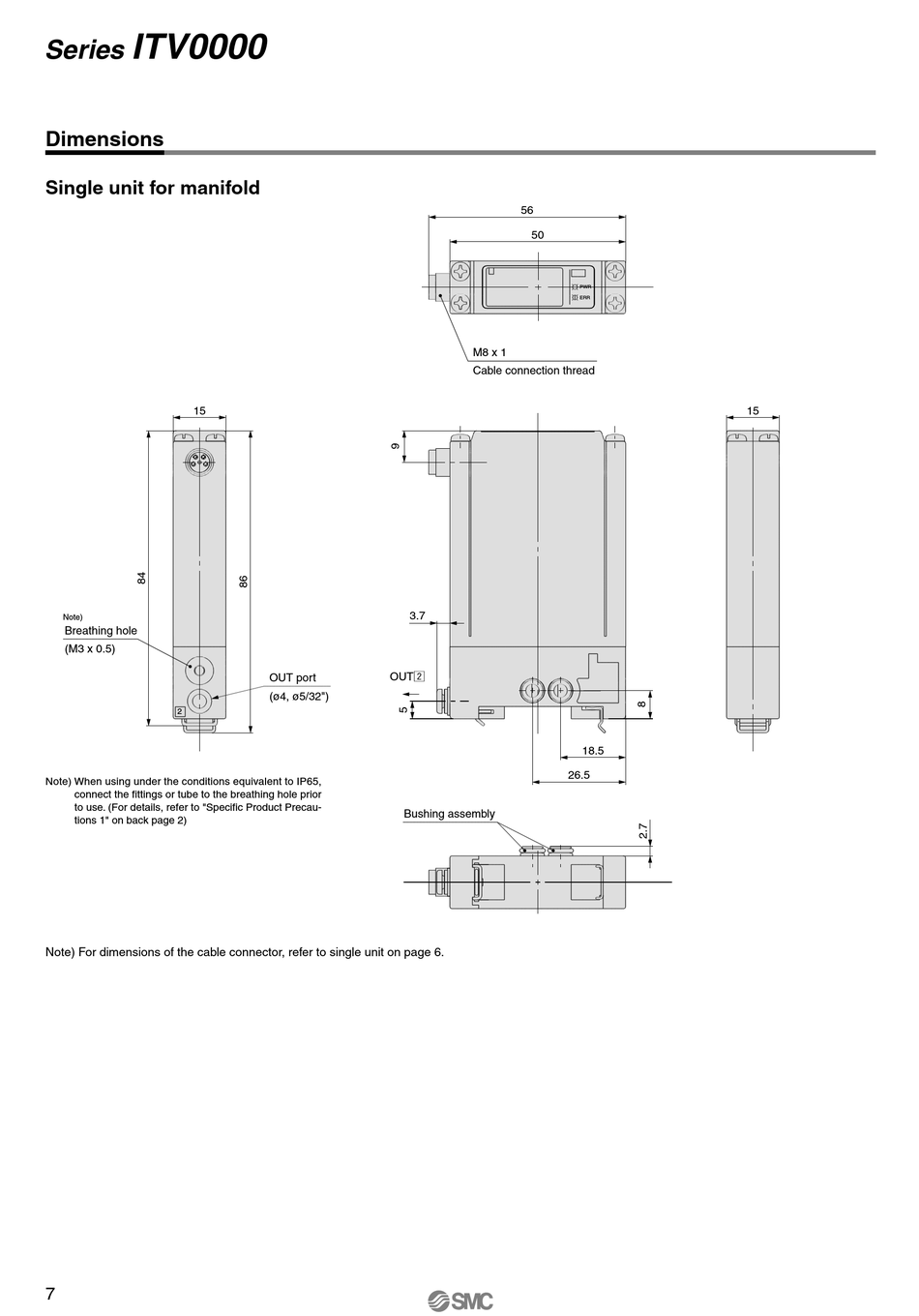

ITV0000
Series
Dimensions
Single unit for manifold
15
Note)
Breathing hole
(M3 x 0.5)
2
Note) When using under the conditions equivalent to IP65,
connect the fittings or tube to the breathing hole prior
to use. (For details, refer to "Specific Product Precau-
tions 1" on back page 2)
Note) For dimensions of the cable connector, refer to single unit on page 6.
7
3.7
OUTx
OUT port
(ø4, ø5/32")
Bushing assembly
56
50
PWR
ERR
M8 x 1
Cable connection thread
18.5
26.5
15
