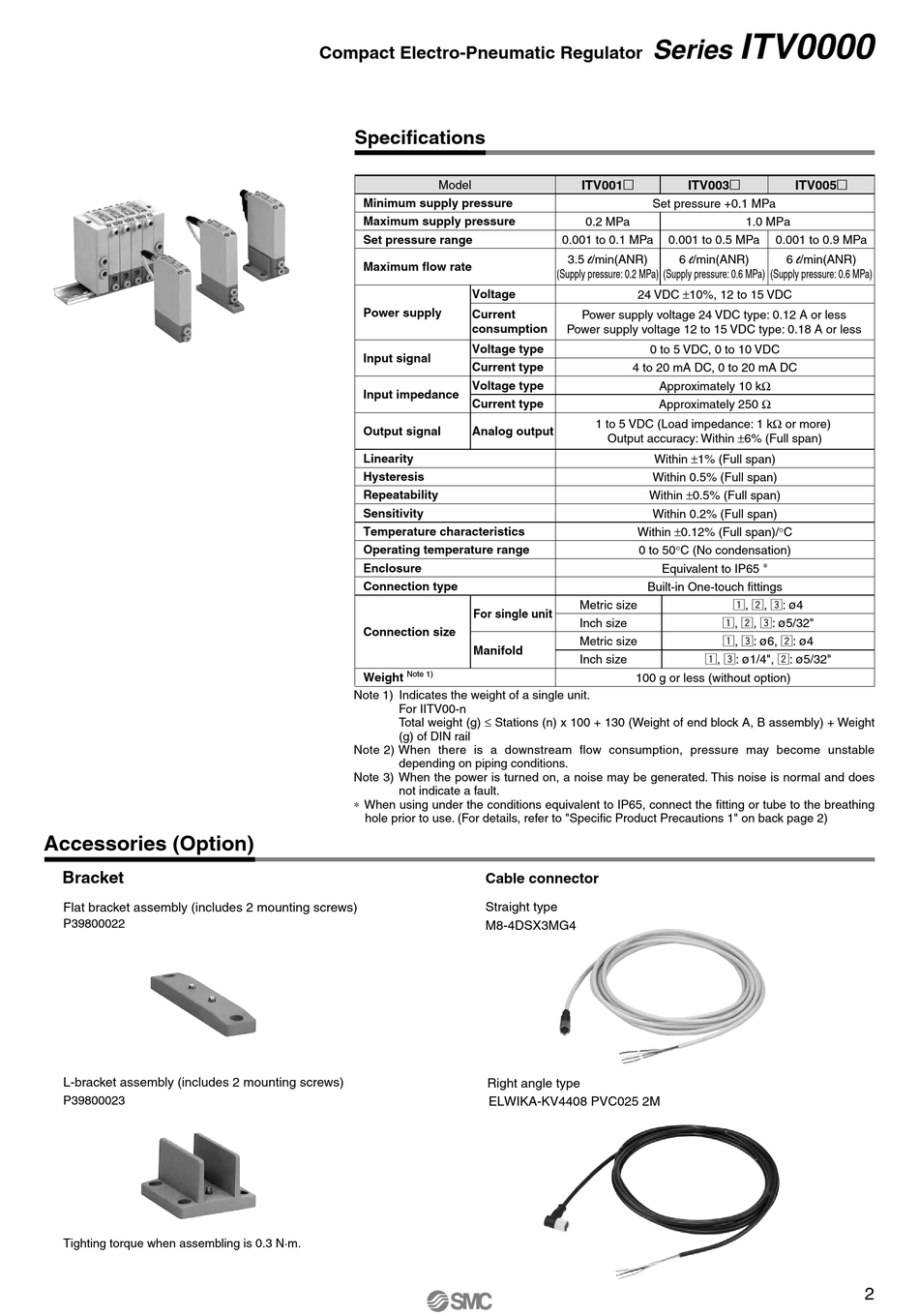

SMC Networks ITV0000 Series Manual page 5

Accessories (Option)
Bracket
Flat bracket assembly (includes 2 mounting screws)
P39800022
L-bracket assembly (includes 2 mounting screws)
P39800023
Tighting torque when assembling is 0.3 N·m.
Compact Electro-Pneumatic Regulator
Specifications
Model
Minimum supply pressure
Maximum supply pressure
Set pressure range
Maximum flow rate
Voltage
Power supply
Current
consumption
Voltage type
Input signal
Current type
Voltage type
Input impedance
Current type
Output signal Analog output
Linearity
Hysteresis
Repeatability
Sensitivity
Temperature characteristics
Operating temperature range
Enclosure
Connection type
For single unit
Connection size
Manifold
Note 1)
Weight
Note 1) Indicates the weight of a single unit.
For IITV00-n
Total weight (g) ≤ Stations (n) x 100 + 130 (Weight of end block A, B assembly) + Weight
(g) of DIN rail
Note 2) When there is a downstream flow consumption, pressure may become unstable
depending on piping conditions.
Note 3) When the power is turned on, a noise may be generated. This noise is normal and does
not indicate a fault.
∗ When using under the conditions equivalent to IP65, connect the fitting or tube to the breathing
hole prior to use. (For details, refer to "Specific Product Precautions 1" on back page 2)
Cable connector
Straight type
M8-4DSX3MG4
Right angle type
ELWIKA-KV4408 PVC025 2M
Series
ITV001 ITV003
Set pressure +0.1 MPa
0.2 MPa
0.001 to 0.1 MPa 0.001 to 0.5 MPa
3.5 l/min(ANR) 6 l/min(ANR)
(Supply pressure: 0.2 MPa) (Supply pressure: 0.6 MPa)
24 VDC ±10%, 12 to 15 VDC
Power supply voltage 24 VDC type: 0.12 A or less
Power supply voltage 12 to 15 VDC type: 0.18 A or less
0 to 5 VDC, 0 to 10 VDC
4 to 20 mA DC, 0 to 20 mA DC
Approximately 10 kΩ
Approximately 250 Ω
1 to 5 VDC (Load impedance: 1 kΩ or more)
Output accuracy: Within ±6% (Full span)
Within ±1% (Full span)
Within 0.5% (Full span)
Within ±0.5% (Full span)
Within 0.2% (Full span)
Within ±0.12% (Full span)/°C
0 to 50°C (No condensation)
Equivalent to IP65
Built-in One-touch fittings
Metric size
z, x, c:
Inch size
z, c:
Metric size
z, c:
Inch size
100 g or less (without option)
ITV0000
ITV005
1.0 MPa
0.001 to 0.9 MPa
6 l/min(ANR)
(Supply pressure: 0.6 MPa)
∗
z, x, c:
ø
4
ø 5/32"
6, x:
ø ø 4
1/4", x:
ø ø 5/32"
2
